Correct Answer:

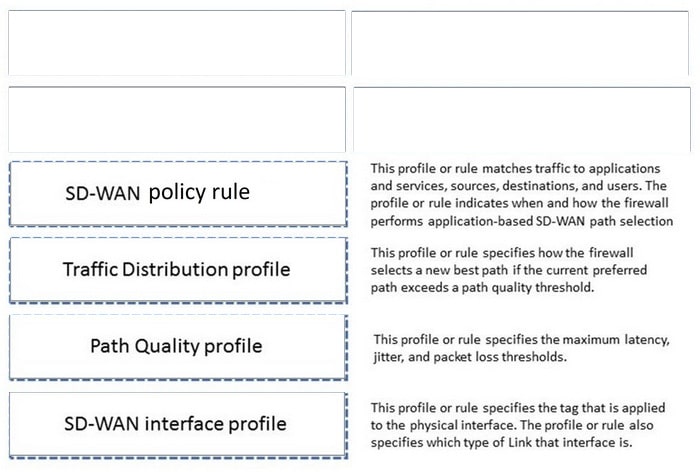

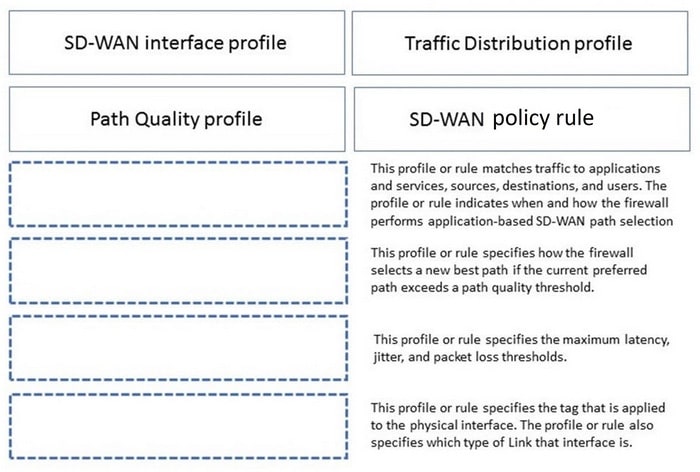

An SD-WAN Interface Profile specifies the Tag that you apply to the physical interface, and also specifies the type of Link that interface is (ADSL/DSL, cable modem, Ethernet, fiber, LTE/3G/4G/5G, MPLS, microwave/radio, satellite, WiFi, or other). The Interface Profile is also where you specify the maximum upload and download speeds (in Mbps) of the ISP's connection. You can also change whether the firewall monitors the path frequently or not; the firewall monitors link types appropriately by default. A Layer3 Ethernet Interface with an IPv4 address can support SD-WAN functionalities. You apply an SD-WAN Interface Profile to this interface (red arrow) to indicate the characteristics of the interface. The blue arrow indicates that physical Interfaces are referenced and grouped in a virtual SD-WAN Interface. A virtual SD-WAN Interface is a VPN tunnel or DIA group of one or more interfaces that constitute a numbered, virtual SD-WAN Interface to which you can route traffic. The paths belonging to an SD-WAN Interface all go to the same destination WAN and are all the same type (either DIA or VPN tunnel). (Tag A and Tag B indicate that physical interfaces for the virtual interface can have different tags.) A Path Quality Profile specifies maximum latency, jitter, and packet loss thresholds. Exceeding a threshold indicates that the path has deteriorated and the firewall needs to select a new path to the target. A sensitivity setting of high, medium, or low lets you indicate to the firewall which path monitoring parameter is more important for the applications to which the profile applies. The green arrow indicates that you reference a Path Quality Profile in one or more SD-WAN Policy Rules; thus, you can specify different thresholds for rules applied to packets having different applications, services, sources, destinations, zones, and users. A Traffic Distribution Profile specifies how the firewall determines a new best path if the current preferred path exceeds a path quality threshold. You specify which Tags the distribution method uses to narrow its selection of a new path; hence, the yellow arrow points from Tags to the Traffic Distribution profile. A Traffic Distribution profile specifies the distribution method for the rule. The preceding elements come together in SD-WAN Policy Rules The purple arrow indicates that you reference a Path Qualify Profile and a Traffic Distribution profile in a rule, along with packet applications/services, sources, destinations, and users to specifically indicate when and how the firewall performs application-based SD-WAN path selection for a packet not belonging to a session.

https://docs.paloaltonetworks.com/sd-wan/1-0/sd-wan-admin/sd-wan-overview/sd-wan- configuration-elements.html

Correct Answer: ADE

Reference: https://www.paloaltonetworks.com/documentation/71/pan-os/pan-os/high- availability/ha-firewall-states

Correct Answer: CDE

https://docs.paloaltonetworks.com/pan-os/8-1/pan-os-admin/firewall-administration/manage-firewall-administrators/administrative-authentication

Correct Answer: D

Correct Answer: D

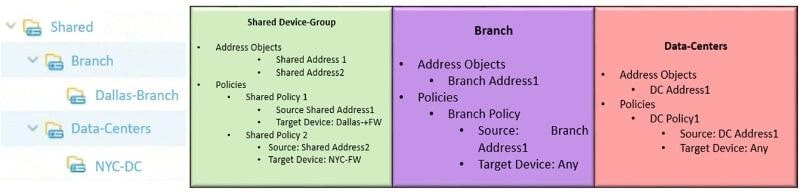

Panorama will not push anything from Data-Centers group. That rules out C.

Panorama will push all objects from "Shared", which rules out A.

Note that the target of "Shared Policy 2" is NYC-FW, so this policy won't get pushed to Dallas-FW. This rules out B.

Thus, answer is D.
