Choose the correct answer.

Which diagram type is commonly used to create a bill of materials?

A. Package diagram

B. Activity diagram

C. Parametric diagram

D. Requirements diagram

E. internal block diagram

F. Block definition diagram

Choose the correct answer. Given the following diagram:

What do the keywords in the braces represent?

A. suggestions for improving the efficiency of the design

B. constraints specifying that the direction of the association is ordered and that an instance of A uniquely consists of instances of B

C. constraints specifying that the set representing the Instances of P is ordered In the context of the association, and all instances are unique

D. constraints specifying that all instances of B must be ordered in a unique sequence when they are associated with any instance of block A

Choose the correct answer

Which SysML construct is used in an activity diagram to associate an actor of a use case with the actions that actor performs?

A. an activity partition enclosing the actions the actor performs

B. an action allocation of the actor to the actions that actor performs

C. an association Between the actor and the actions that actor performs

D. an object node to represent the actor and object flows tying that actor to the actions it performs

Choose the correct answer.

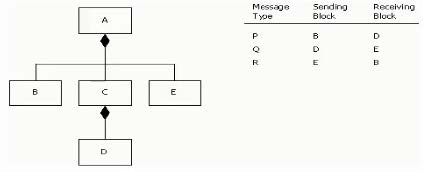

Given the following bdd fragment and table showing messages sent between blocks:

Block C Is encapsulated; none of the other blocks are.

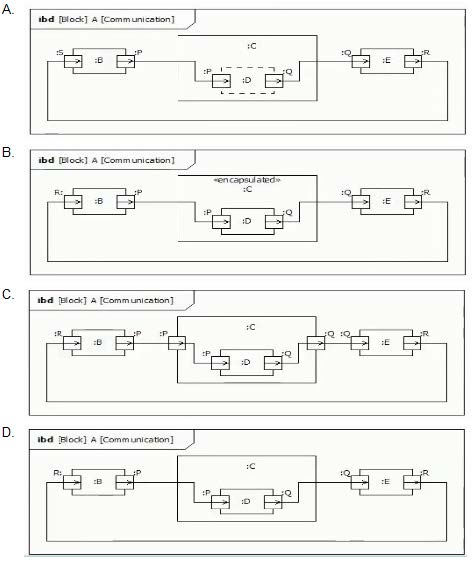

Which Ibd for block A has the correct assignment of flow ports and connectors? If two or more options are correct, select the one with the fewest ports.

A. Option A

B. Option B

C. Option C

D. Option D

Choose the correct answer

A sequence diagram depicts the beginning of a user's session with a piece of interactive software . The diagram must show that the 璖oftware Session is created by some activity of the .User.

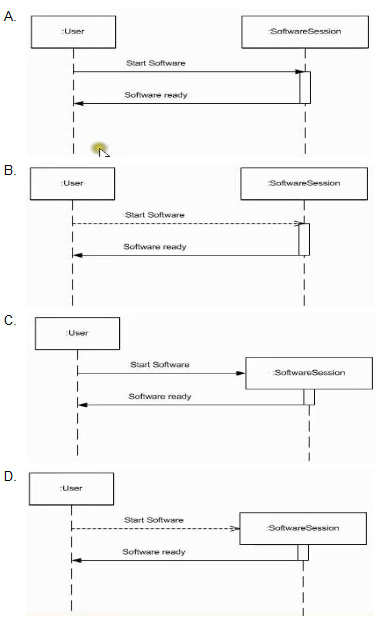

Which sequence diagram fragment expresses this?

A. Option A

B. Option B

C. Option C

D. Option D
