Questions 4

Choose the correct answer

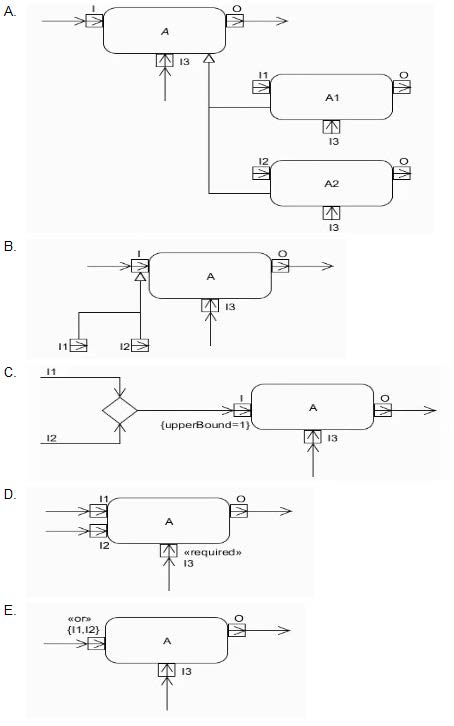

A has three inputs I 1. I 2 and 13 and one output O, I1, I2. I3 and O are all of the same type A requires I1 or I2 to execute but I1 and I2 are mutually exclusive. I3 must be present tor A to begin.

Which activity diagram fragment correctly shows A with its three inputs and one output?

A. Option A

B. Option B

C. Option C

D. Option D

E. Option E

Browse 90 Q&As
Questions 5

Choose the correct answer.

Assume the following state machine fragment Is In the A-State when the event evC arrives.

What is the order of behaviors that are executed after evj arrives?

A. action 9, action 1

B. action 2, action 9, action 1

C. action 2, action 9, action 1, start activity X, evC

D. stop activity X (if needed), action 2, action 9, action 1, start activity X

E. stop activity X (If needed), action 2, action 9, action 1, action 4 start activity X

Browse 90 Q&As
Questions 6

Choose the correct answer

How ate use cases and requirements used for requirements analysis in SysML?

A. in a SysML model, either use cases or requirements are modeled, but never both

B. Use cases are a relic from UML and are. strictly speaking, useless in a SysML model

C. Use cases are good for capturing functional requirements. For nonfunctional requirements, the requirement element is needed

D. Use cases are the basis for all requirements in a model. Requirements refine the use cases by adding additional information through then properties.

Browse 90 Q&As
Questions 7

Choose the correct answer.

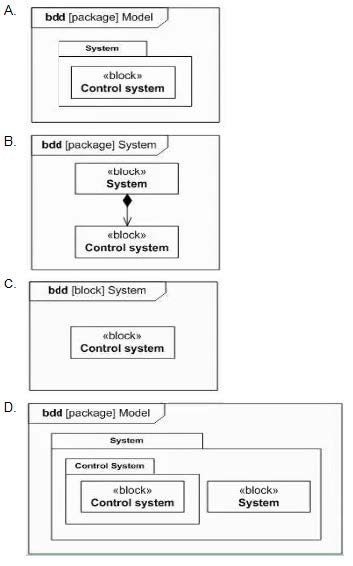

Which diagram shows that the control system block is in the namespace of the system block?

A. Option A

B. Option B

C. Option C

D. Option D

Browse 90 Q&As
Questions 8

Choose the correct answer

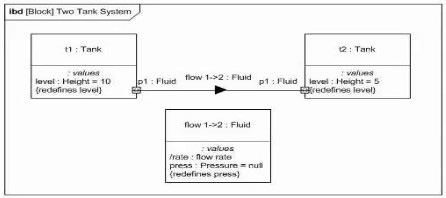

A system consists of two identical tanks each containing a different level of fluid. The tanks are connected together by a port at the bottom of each tank. This system is modeled m the following diagram:

Which statement is true?

A. The block Fluid, which types item property flow 1 ->2. has a value property press : Pressure with a default value of null

B. The value property /rate : flow rate is a derived property, which accommodates calculating its value based on oilier properties

C. Parts t1 and t2 each use part instances to redefine the value of property level : Height

D. The value of /rate for item property flow 1->2 is positive for flow from t1 to t2. and negative for How in the other direction

E. Both port p1 on pan t1. and port p1 on t2. must have values defined for value properties /rate and press

Browse 90 Q&As
Questions 9

Choose the correct answer.

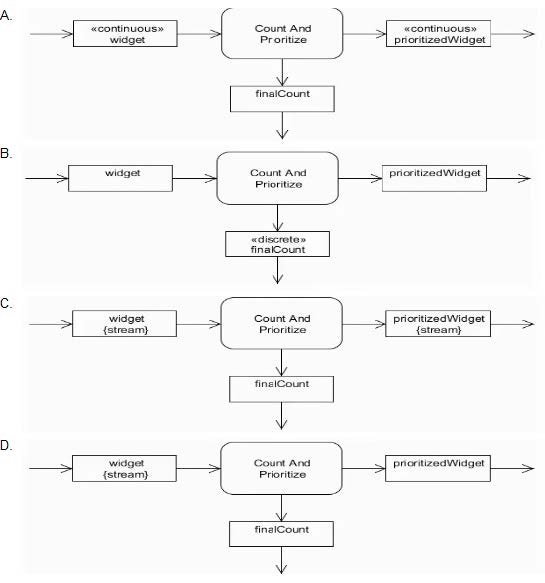

There is a requirement to count and prioritize widgets. While it is active, the action that implements this behavior will repeatedly accept a widget and immediately output a prioritized widget. A special "final" widget will cause the action to terminate and output the total count of widgets It processed Which activity diagram fragment shows this action along with its inputs and outputs?

A. Option A

B. Option B

C. Option C

D. Option D

Browse 90 Q&As
Questions 10

Choose the correct answer.

When is it possibly useful to create property-specific types?

A. when a block is typed by another block with similar properties

B. when it is important to ensure uniform generalization of all blocks

C. when it is important to ensure uniform specialization of all block properties

D. when a block that types several part properties exists in multiple variants

Browse 90 Q&As
Questions 11

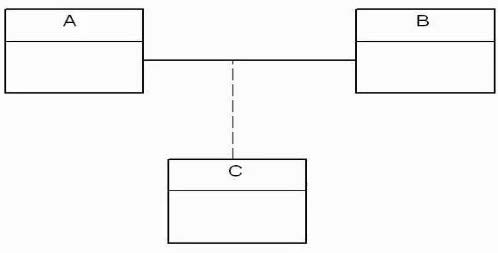

Choose the correct answer. Given the following diagram:

What is element C?

A. a tag value

B. an association block

C. a connector property

D. a connector illustration

E. a relation information element

Browse 90 Q&As
Questions 12

Choose the correct answer.

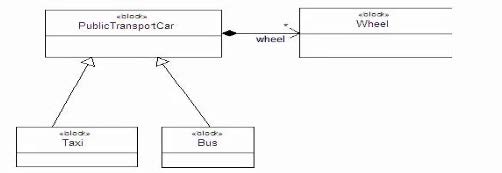

Given the following diagram fragment:

What is the correct way to show, on the diagram, that a Taxi has four wheels and Bus has six wheels?

A. initialize the multiplicities of wheel as part of the system Initializer

B. draw new relationships between Taxi and Wheel and Bus and Wheel using the same role name but different multiplicities

C. draw new relationships between Taxi and Wheel and Bus and Wheel with the specific multiplicities and mark the wheel end as redefining the wheel end of the relation between PublicTransportCar and Wheel

D. draw new relationships between Taxi and Wheel and 8us and Wheel with the specific multiplicities and mark the wheel ends as subsets of the wheel end of the relation between PublicTransporlCar and Wheel

Browse 90 Q&As
Questions 13

Choose the correct answer

What does a «rate» applied to an activity edge specify?

A. a lower bound on the number of changes to an object's value per time Interval

B. a lower bound on the number of objects that will traverse the edge per time interval

C. the expected number of changes to an object's value per time interval.

D. the expected number of objects that traverse the edge per time interval

E. an upper bound on the number of changes to an object's value per time interval

F. an upper bound on the number of objects that will traverse the edge per time interval

Browse 90 Q&As
Questions 14

Choose the correct answer.

A system engineer has created a SysML block structure for his system-of-interest. Two of the blocks (M and E) represent system-level abstractions of components that will be designed by a mechanical engineer and an electrical engineer m their respective computer- aided design (CAD) tools.

Given that the CAD models are wrapped as blocks B_mcad and B_ecad, what type of diagram should the system engineer use to quantitatively relate the properties of B_mcad and B_ecad to their system level abstractions M and E respectively?

A. an activity diagram

B. a parametric diagram

C. an internal block diagram

D. a block definition diagram

Browse 90 Q&As
Questions 15

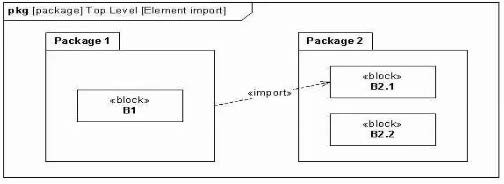

Choose the correct answer. Given the following diagram:

Which diagram is correct?

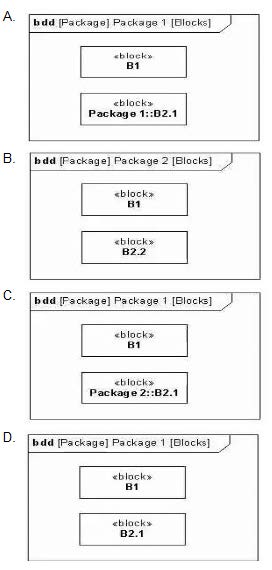

A. Option A

B. Option B

C. Option C

D. Option D

Browse 90 Q&As
Questions 16

Choose the correct answer.

Block 1 has a value property 'a' part 1. typed by Block! sends the message Ml If a?; otherwise it sends message M2.

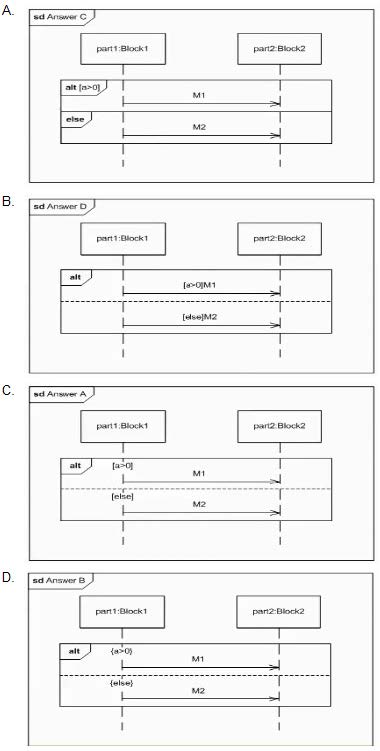

Which diagram depicts this scenario?

A. Option A

B. Option B

C. Option C

D. Option D

Browse 90 Q&As
Questions 17

Choose the correct answer.

What is the best way to specify the behavior of a functional requirement?

A. Model an activity that refines the functional requirement.

B. Model a state machine that refines the functional requirement.

C. The project methodology will indicate which way is compatible with its process.

D. The requirement text must be a clear and concise specification of the functionality.

Browse 90 Q&As
Questions 18

HOTSPOT

Choose the correct answer.

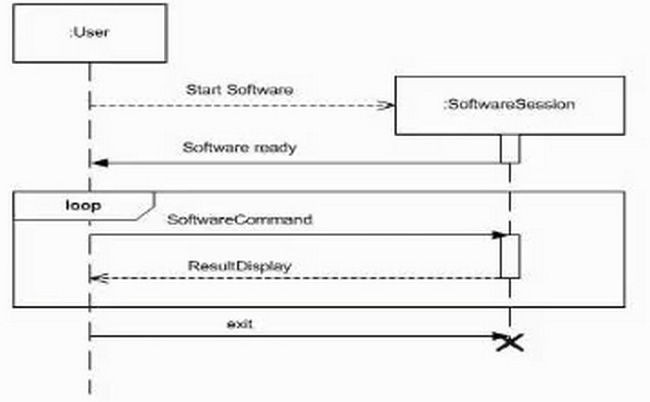

A project has produced the following initial draft sequence diagram fragment:

Hot Area:

Browse 90 Q&As
