Correct Answer: A

To identify the CVM with the issue, remove the file causing the storage bloat, and check the health again, you can follow these steps:

Log in to Prism Central and click on Entities on the left menu. Select Virtual Machines from the drop-down menu and find the NCC health check output file from the list. You can use the date and time information to locate the file. The file name

should be something like ncc-output-YYYY-MM-DD-HH-MM-SS.log. Open the file and look for the line that says FAIL: CVM System Partition /home usage at 93% (greater than threshold, 90%). Note down the IP address of the CVM that has

this issue. It should be something like X.X.X.X.

Log in to the CVM using SSH or console with the username and password provided. Run the command du -sh /home/* to see the disk usage of each file and directory under /home. Identify the file that is taking up most of the space. It could

be a log file, a backup file, or a temporary file. Make sure it is not a system file or a configuration file that is needed by the CVM.

Run the command rm -f /home/ to remove the file causing the storage bloat. Replace with the actual name of the file. Run the command ncc health_checks hardware_checks disk_checks disk_usage_check -cvm_list=X.X.X.X to check the health again by running the individual disk usage health check only on the problematic CVM. Replace X.X.X.X with the IP address of the CVM that you noted down earlier.

Verify that the output shows PASS: CVM System Partition /home usage at XX% (less than threshold, 90%). This means that the issue has been resolved.

#access to CVM IP by Putty

allssh df -h #look for the path /dev/sdb3 and select the IP of the CVM ssh CVM_IP

ls

cd software_downloads

ls

cd nos

ls -l -h

rm files_name

df -h

ncc health_checks hardware_checks disk_checks disk_usage_check

Correct Answer: A

First, you need to open the Prism Central CLI from the Windows Server 2019 workstation. You can do this by clicking on the Start menu and typing "Prism Central CLI". Then, you need to log in with the credentials provided to you. Second,

you need to run the two commands that I have already given you in Desktop\Files\Network\flow.txt. These commands are:

net.update_vpc_traffic_config virtual_switch=vs1 net.update_vpc_east_west_traffic_config permit_vpc_traffic=true

These commands will update the virtual switch that carries the VPC traffic to vs1, and update the VPC east-west traffic configuration to allow only VPC traffic. You can verify that these commands have been executed successfully by running

the command:

net.get_vpc_traffic_config

This command will show you the current settings of the virtual switch and the VPC east- west traffic configuration.

Third, you need to SSH directly to any AHV node (not a CVM) in the cluster and run the command:

ovs-vsctl show

This command will display an overview of the Open vSwitch configuration on the AHV node. You can copy and paste the output of this command to a new text file named Desktop\Files\Network\AHVswitch.txt.

You can use any SSH client such as PuTTY or Windows PowerShell to connect to the AHV node. You will need the IP address and the credentials of the AHV node, which you can find in Prism Element or Prism Central.

remove # from greens

On AHV execute:

sudo ovs-vsctl show

CVM access AHV access command

nutanix@NTNX-A-CVM:192.168.10.5:~$ ssh root@192.168.10.2 "ovs-vsctl show" Open AHVswitch.txt and copy paste output

Correct Answer: A

To configure a DR solution that meets the stated requirements, you can follow these steps:

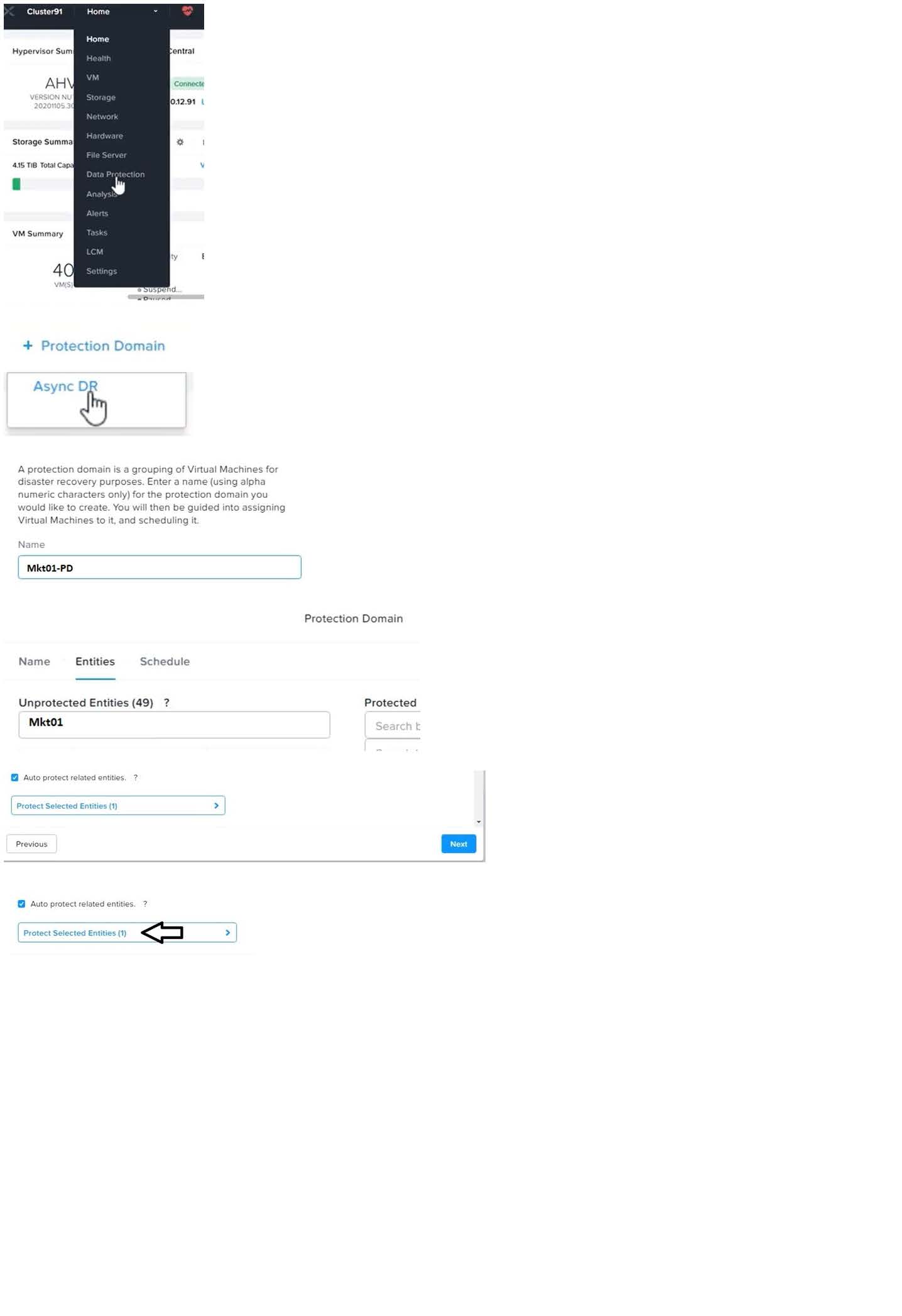

Log in to the Web Console of the source cluster where the VMs are running. Click on Protection Domains on the left menu and click on Create Protection Domain. Enter a name for the protection domain, such as PD_Mkt01, and a description

if required.

Click Next.

Select Mkt01 from the list of VMs and click Next. Select Schedule Based from the drop-down menu and enter 2 hours as the interval. Click Next.

Select Remote Site from the drop-down menu and choose the remote site where you want to replicate the VM. Click Next.

Enter 5 as the number of snapshots to retain on both local and remote sites. Click Next. Review the protection domain details and click Finish. Repeat the same steps for Fin01 and Dev01, using PD_Fin01 and PD_Dev01 as the protection

domain names, and adjusting the interval and retention values according to the requirements.

Correct Answer: A

To create a report named VMs_Power_State that lists the VMs in the cluster and their basic details including the power state for the last month, you can follow these steps:

Log in to Prism Central and click on Entities on the left menu. Select Virtual Machines from the drop-down menu and click on Create Report. Enter VMs_Power_State as the report name and a description if required. Click Next. Under the

Custom Views section, select Data Table. Click Next. Under the Entity Type option, select VM. Click Next. Under the Custom Columns option, add the following variables: Name, Cluster Name, vCPUs, Memory, Power State. Click Next.

Under the Time Period option, select Last Month. Click Next. Under the Report Settings option, select Monthly from the Schedule drop-down menu. Enter admin@syberdyne.net as the Email Recipient. Select CSV as the Report Output

Format. Click Next.

Review the report details and click Finish.

To generate an instance of the report named VMs_Power_State as a CSV and save the zip file as Desktop\Files\VMs_Power_state.zip, you can follow these steps:

Log in to Prism Central and click on Operations on the left menu. Select Reports from the drop-down menu and find the VMs_Power_State report from the list. Click on Run Now.

Wait for the report to be generated and click on Download Report. Save the file as Desktop\Files\VMs_Power_state.zip.

1.Open the Report section on Prism Central (Operations > Reports) 2.Click on the New Report button to start the creation of your custom report 3.Under the Custom Views section, select Data Table 4.Provide a title to your custom report, as

well as a description if required.

5.Under the Entity Type option, select VM

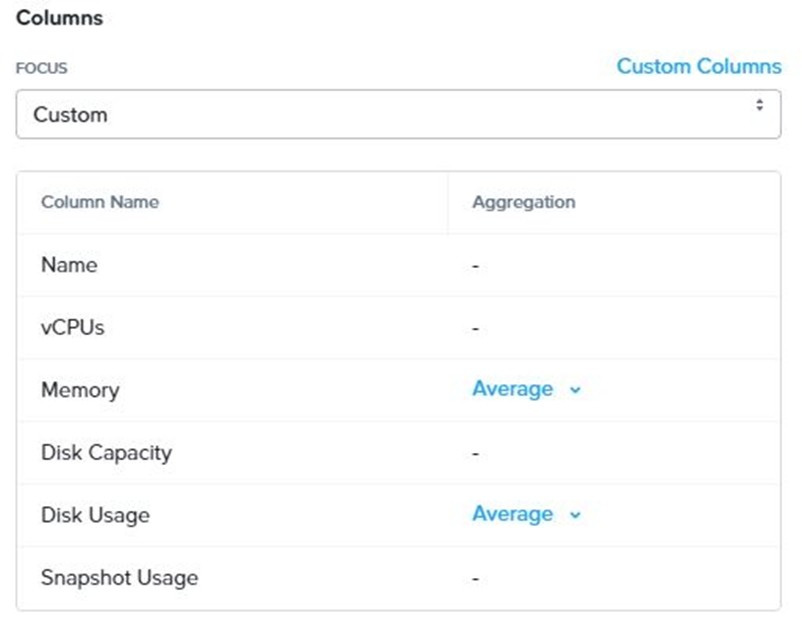

6.This report can include all as well as a selection of the VMs 7.Click on the Custom Columns option and add the below variables:

a.Name - Name of the listed Virtual Machine

b.vCPUs - A combination of the vCores and vCPU's assigned to the Virtual Machine c.Memory - Amount of memory assigned to the Virtual Machine d.Disk Capacity - The total amount of assigned virtual disk capacity e.Disk Usage - The total

used virtual disk capacity f.Snapshot Usage - The total amount of capacity used by snapshots (Excluding Protection Domain snapshots)

8.Under the Aggregation option for Memory and Disk Usage accept the default Average option

9.Click on the Add button to add this custom selection to your report 10.Next click on the Save and Run Now button on the bottom right of the screen 11.Provide the relevant details on this screen for your custom report:

12.You can leave the Time Period For Report variable at the default of Last 24 Hours 13.Specify a report output of preference (PDF or CSV) and if required Additional Recipients for this report to be mailed to. The report can also simply be

downloaded after this creation and initial run if required

14.Below is an example of this report in a CSV format:

Correct Answer: A

To configure the storage for the Citrix-based VDI, you can follow these steps:

Log in to Prism Central using the credentials provided. Go to Storage > Storage Pools and click on Create Storage Pool. Enter a name for the new storage pool, such as VDI_Storage_Pool, and select the disks to include in the pool. You can

choose any combination of SSDs and HDDs, but for optimal performance, you may prefer to use more SSDs than HDDs.

Click Save to create the storage pool.

Go to Storage > Containers and click on Create Container. Enter a name for the new container for the non-persistent pool, such as MCS_Pool_Container, and select the storage pool that you just created, VDI_Storage_Pool, as the source.

Under Advanced Settings, enable Deduplication and Compression to reduce the storage footprint of the non-persistent desktops. You can also enable Erasure Coding if you have enough nodes in your cluster and want to save more space.

These settings will help you optimize the storage capacity for the non-persistent pool.

Click Save to create the container.

Go to Storage > Containers and click on Create Container again. Enter a name for the new container for the persistent pool, such as Persist_Pool_Container, and select the same storage pool, VDI_Storage_Pool, as the source.

Under Advanced Settings, enable Capacity Reservation and enter 20 GiB as the reserved capacity. This will guarantee that 20 GiB of space is always available for the persistent desktops. You can also enter 100 GiB as the advertised

capacity to limit the maximum space that this container can use. These settings will help you control the storage allocation for the persistent pool.

Click Save to create the container.

Go to Storage > Datastores and click on Create Datastore. Enter a name for the new datastore for the non-persistent pool, such as MCS_Pool_Datastore, and select NFS as the datastore type. Select the container that you just created,

MCS_Pool_Container, as the source.

Click Save to create the datastore.

Go to Storage > Datastores and click on Create Datastore again. Enter a name for the new datastore for the persistent pool, such as Persist_Pool_Datastore, and select NFS as the datastore type. Select the container that you just created,

Persist_Pool_Container, as the source.

Click Save to create the datastore.

The datastores will be automatically mounted on all nodes in the cluster. You can verify this by going to Storage > Datastores and clicking on each datastore. You should see all nodes listed under Hosts.

You can now use Citrix Studio to create your VDI pools using MCS or full clones on these datastores. For more information on how to use Citrix Studio with Nutanix Acropolis, seeCitrix Virtual Apps and Desktops on NutanixorNutanix

virtualization environments.

https://portal.nutanix.com/page/documents/solutions/details?targetId=BP-2079-Citrix- Virtual-Apps-and-Desktops:bp-nutanix-storage-configuration.html
