Correct Answer: A

To create a report named Weekends that meets the requirements, you can follow these steps:

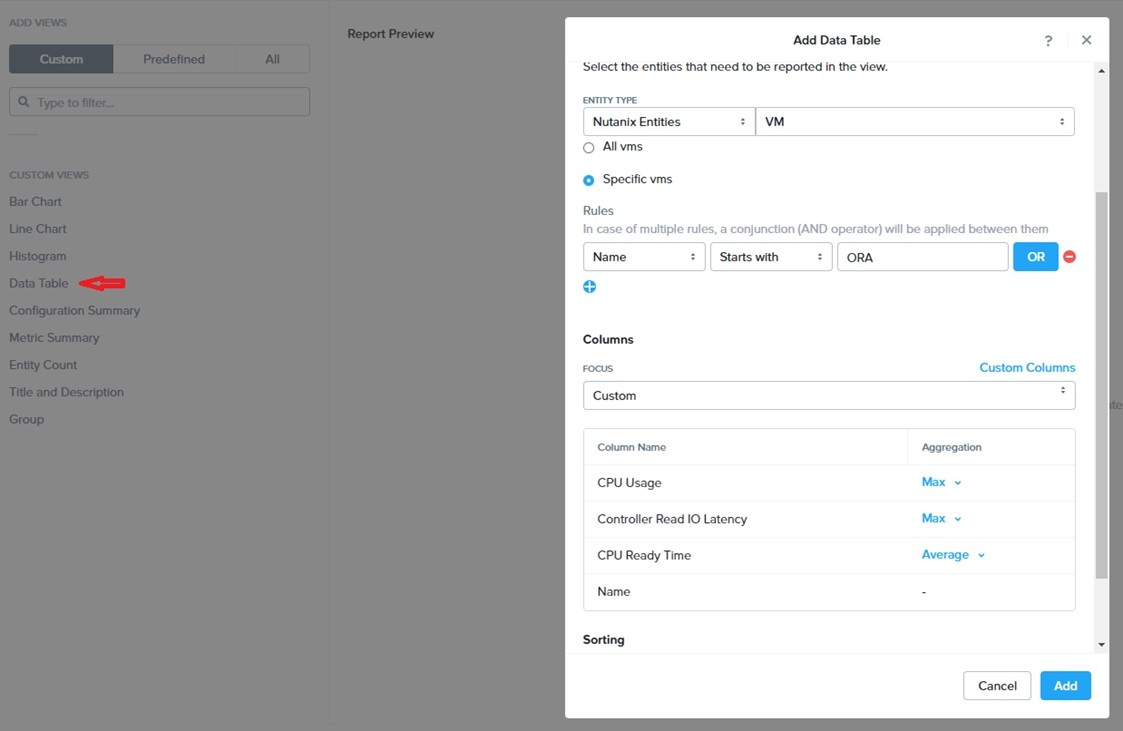

Log in to Prism Central and click on Entities on the left menu. Select Virtual Machines from the drop-down menu and click on Create Report. Enter Weekends as the report name and a description if required. Click Next. Under the Custom

Views section, select Data Table. Click Next. Under the Entity Type option, select Cluster. Click Next. Under the Custom Columns option, add the following variable: CPU Usage (%). Click Next. Under the Aggregation option for CPU Usage

(%), select Max. Click Next. Under the Filter option, select Current Cluster from the drop-down menu. Click Next. Click on Add to add this custom view to your report. Click Next. Under the Custom Views section, select Data Table again. Click

Next. Under the Entity Type option, select VM. Click Next. Under the Custom Columns option, add the following variables: Name, I/O Read Latency (ms), VM Ready Time (%). Click Next.

Under the Aggregation option for I/O Read Latency (ms) and VM Ready Time (%), select Max. Click Next.

Under the Filter option, enter ORA* in the Name field. This will include any future VM with the prefix ORA. Click Next.

Click on Add to add this custom view to your report. Click Next. Under the Report Settings option, select Weekly from the Schedule drop-down menu and choose Sunday as the day of week. Enter 12:00 AM as the time of day. Enter

appdev@cyberdyne.net as the Email Recipient. Select CSV as the Report Output Format.

Click Next.

Review the report details and click Finish.

Correct Answer: A

One possible reason why the SQL03 VM was not powered back on after a host failure is that the cluster was configured with the default (best effort) VM high availability mode, which does not guarantee the availability of VMs in case of

insufficient resources on the remaining hosts. To resolve this issue, I suggest changing the VM high availability mode to guarantee (reserved segments), which reserves some memory on each host for failover of VMs from a failed host. This

way, the SQL03 VM will have a higher chance of being restarted on another host in case of a host failure. To change the VM high availability mode to guarantee (reserved segments), you can follow these steps:

Log in to Prism Central and select the cluster where the SQL VMs are running. Click on the gear icon on the top right corner and select Cluster Settings. Under Cluster Services, click on Virtual Machine High Availability. Select Guarantee

(Reserved Segments) from the drop-down menu and click Save. To configure the environment to ensure any single host failure affects a minimal number of SQL VMs, I suggest using anti-affinity rules, which prevent VMs that belong to the

same group from running on the same host. This way, if one host fails, only one SQL VM will be affected and the other SQL VMs will continue running on different hosts. To create an anti-affinity rule for the SQL VMs, you can follow these

steps:

Log in to Prism Central and click on Entities on the left menu. Select Virtual Machines from the drop-down menu and click on Create Group. Enter a name for the group, such as SQL Group, and click Next. Select the SQL VMs (SQL01,

SQL02, SQL03) from the list and click Next. Select Anti-Affinity from the drop-down menu and click Next.

Review the group details and click Finish.

I hope this helps. How else can I help?

https://portal.nutanix.com/page/documents/details?targetId=AHV-Admin-Guide-v6_5:ahv- affinity-policies-c.html

A screenshot of a computer

Description automatically generated with medium confidence

Correct Answer: A

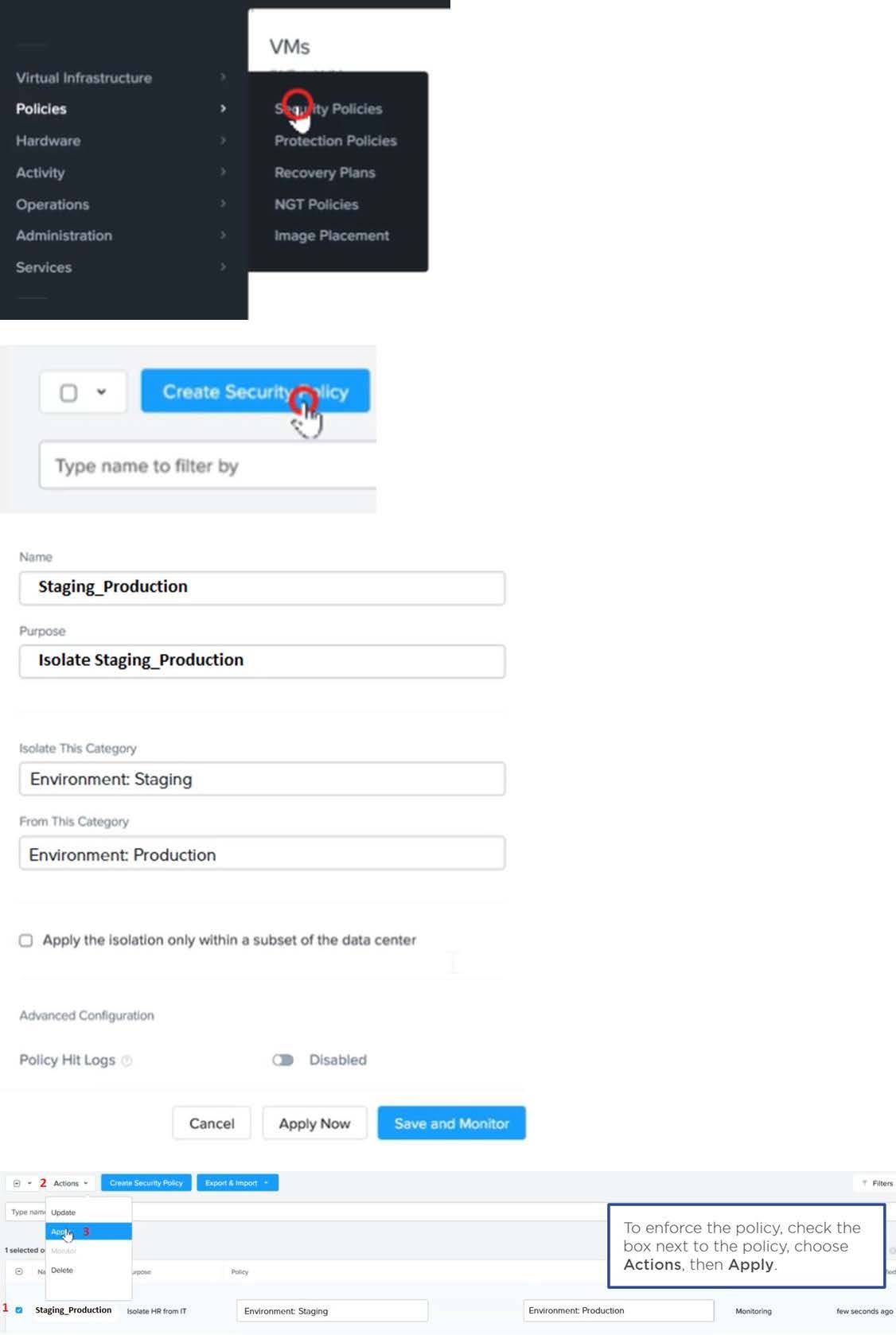

To configure the environment to satisfy the requirement of implementing a security policy named Staging_Production, such that no VM in the Staging Environment can communicate with any VM in the production Environment, you need to do the following steps: Log in to Prism Central and go to Network > Security Policies > Create Security Policy. Enter Staging_Production as the name of the security policy and select Cluster A as the cluster. In the Scope section, select VMs as the entity type and add the VMs that belong to the Staging Environment and the Production Environment as the entities. You can use tags or categories to filter the VMs based on their environment. In the Rules section, create a new rule with the following settings: Direction: Bidirectional Protocol: Any Source: Staging Environment Destination: Production Environment Action: Deny Save the security policy and apply it to the cluster. This will create a security policy that will block any traffic between the VMs in the Staging Environment and the VMs in the Production Environment. You can verify that the security policy is working by trying to ping or access any VM in the Production Environment from any VM in the Staging Environment, or vice versa. You should not be able to do so.

Correct Answer: A

To configure the VM to better leverage AHV Turbo, you can follow these steps:

Log in to Prism Element of cluster A using the credentials provided.

Go to VM > Table and select the VM named Turbo.

Click on Update and go to Hardware tab.

Increase the number of vCPUs to match the number of multiqueues that you want to enable. For example, if you want to enable 8 multiqueues, set the vCPUs to 8. This will improve the performance of multi-threaded workloads by allowing

them to use multiple processors.

Change the SCSI Controller type from SATA to VirtIO. This will enable the use of VirtIO drivers, which are required for AHV Turbo.

Click Save to apply the changes.

Power off the VM if it is running and mount the Nutanix VirtIO ISO image as a CD-ROM device. You can download the ISO image fromNutanix Portal. Power on the VM and install the latest Nutanix VirtIO drivers for Windows 10. You can

follow the instructions fromNutanix Support Portal. After installing the drivers, power off the VM and unmount the Nutanix VirtIO ISO image.

Power on the VM and log in to Windows 10.

Open a command prompt as administrator and run the following command to enable multiqueue for the VirtIO NIC:

ethtool -L eth0 combined 8

Replaceeth0with the name of your network interface and8with the number of multiqueues that you want to enable. You can useipconfig /allto find out your network interface name.

Restart the VM for the changes to take effect.

You have now configured the VM to better leverage AHV Turbo. You can run your stress test application again and observe the performance gains.

https://portal.nutanix.com/page/documents/kbs/details?targetId=kA00e000000LKPdCAO change vCPU to 2/4 ?

Change SATA Controller to SCSI:

acli vm.get Turbo

Output Example:

Turbo {

config {

agent_vm: False

allow_live_migrate: True

boot {

boot_device_order: "kCdrom"

boot_device_order: "kDisk"

boot_device_order: "kNetwork"

uefi_boot: False

}

cpu_passthrough: False

disable_branding: False

disk_list {

addr {

bus: "ide"

index: 0

}

cdrom: True

device_uuid: "994b7840-dc7b-463e-a9bb-1950d7138671" empty: True

}

disk_list {

addr {

bus: "sata"

index: 0

}

container_id: 4

container_uuid: "49b3e1a4-4201-4a3a-8abc-447c663a2a3e" device_uuid: "622550e4-fb91-49dd-8fc7-9e90e89a7b0e" naa_id: "naa.6506b8dcda1de6e9ce911de7d3a22111"

storage_vdisk_uuid: "7e98a626-4cb3-47df-a1e2-8627cf90eae6" vmdisk_size: 10737418240

vmdisk_uuid: "17e0413b-9326-4572-942f-68101f2bc716" }

flash_mode: False

hwclock_timezone: "UTC"

machine_type: "pc"

memory_mb: 2048

name: "Turbo"

nic_list {

connected: True

mac_addr: "50:6b:8d:b2:a5:e4"

network_name: "network"

network_type: "kNativeNetwork"

network_uuid: "86a0d7ca-acfd-48db-b15c-5d654ff39096" type: "kNormalNic"

uuid: "b9e3e127-966c-43f3-b33c-13608154c8bf"

vlan_mode: "kAccess"

}

num_cores_per_vcpu: 2

num_threads_per_core: 1

num_vcpus: 2

num_vnuma_nodes: 0

vga_console: True

vm_type: "kGuestVM"

}

is_rf1_vm: False

logical_timestamp: 2

state: "Off"

uuid: "9670901f-8c5b-4586-a699-41f0c9ab26c3"

}

acli vm.disk_create Turbo clone_from_vmdisk=17e0413b-9326-4572-942f-68101f2bc716 bus=scsi

remove the old disk

acli vm.disk_delete 17e0413b-9326-4572-942f-68101f2bc716 disk_addr=sata.0

Correct Answer: A

To configure the cluster to meet the requirements of the infosec team, you need to do the following steps:

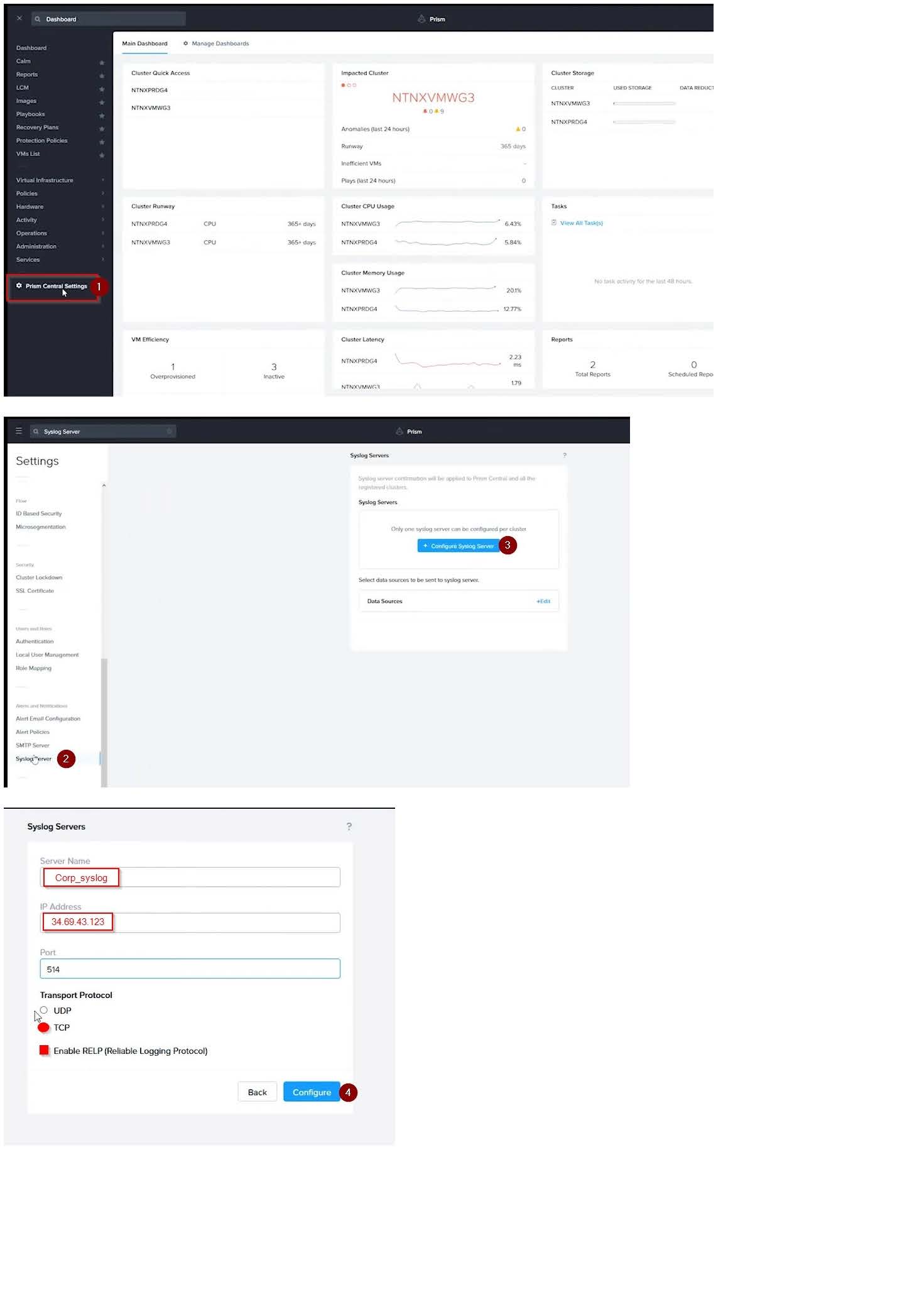

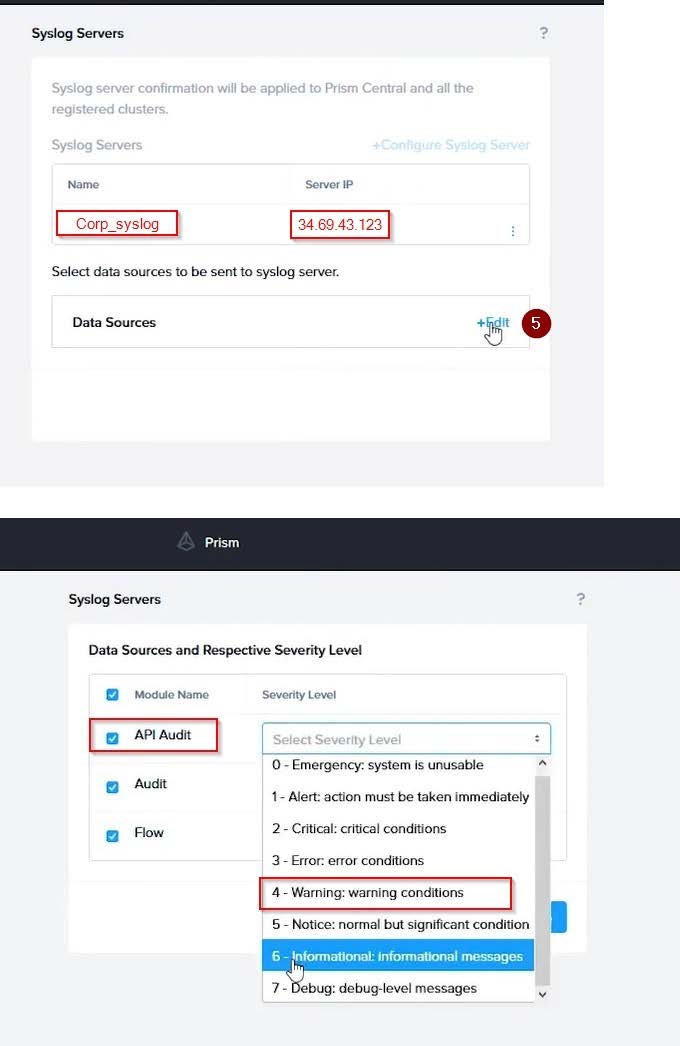

Log in to Prism Central and go to Network > Syslog Servers > Configure Syslog Server. Enter Corp_syslog as the Server Name, 34.69.43.123 as the IP Address, and 514 as the Port. Select TCP as the Transport Protocol and enable RELP

(Reliable Logging Protocol). This will create a syslog server with the highest reliability possible. Click Edit against Data Sources and select Cluster B as the cluster. Select API Requests and Replication as the data sources and set the log level

to CRITICAL for both of them. This will enable audit logs for API requests and replication capabilities for the top 4 severity levels (EMERGENCY, ALERT, CRITICAL, and ERROR) and push them to the syslog server. Click Save.

Repeat step 2 for any other clusters that you want to configure with the same requirements.

To configure the Nutanix clusters to enable audit logs for API Requests and replication capabilities, and push them to the syslog system with the highest reliability possible, you can follow these steps:

Log in to the Nutanix Prism web console using your administrator credentials. Navigate to the "Settings" section or the configuration settings interface within Prism. Locate the "Syslog Configuration" or "Logging" option and click on it.

Configure the syslog settings as follows:

Syslog Name: Enter "Corp_syslog" as the name for the syslog configuration. Syslog IP: Set the IP address to "34.69.43.123", which is the IP address of the syslog system.

Port: Set the port to "514", which is the default port for syslog. Enable the option for highest reliability or persistent logging, if available. This ensures that logs are sent reliably and not lost in case of network interruptions.

Save the syslog configuration.

Enable Audit Logs for API Requests:

In the Nutanix Prism web console, navigate to the "Cluster" section or the cluster management interface.

Select the desired cluster where you want to enable audit logs. Locate the "Audit Configuration" or "Security Configuration" option and click on it. Look for the settings related to audit logs and API requests. Enable the audit logging feature and

select the top 4 severity levels to be logged.

Save the audit configuration.

Enable Audit Logs for Replication Capabilities:

In the Nutanix Prism web console, navigate to the "Cluster" section or the cluster management interface.

Select the desired cluster where you want to enable audit logs. Locate the "Audit Configuration" or "Security Configuration" option and click on it. Look for the settings related to audit logs and replication capabilities. Enable the audit logging

feature and select the top 4 severity levels to be logged.

Save the audit configuration.

After completing these steps, the Nutanix clusters will be configured to enable audit logs for API Requests and replication capabilities. The logs will be sent to the specified syslog system with the highest reliability possible.

ncli

rsyslog-config set-status enable=false

rsyslog-config add-server name=Corp_Syslog ip-address=34.69.43.123 port=514 network-protocol=tdp relp-enabled=false

rsyslog-config add-module server-name= Corp_Syslog module-name=APLOS level=INFO

rsyslog-config add-module server-name= Corp_Syslog module-name=CEREBRO level=INFO

rsyslog-config set-status enable=true

https://portal.nutanix.com/page/documents/kbs/details?targetId=kA00e0000009CEECA2

Correct Answer: A

To correct the issue of cluster services down on Controller VM (35.197.75.196) in the least disruptive manner, you need to do the following steps:

Log in to Prism Element using the admin user credentials. Go to the Alerts page and click on the alert to see more details. You will see which cluster services are down on the Controller VM. For example, it could be cassandra, curator,

stargate, etc.

To start the cluster services, you need to SSH to the Controller VM using the nutanix user credentials. You can use any SSH client such as PuTTY or Windows PowerShell to connect to the Controller VM. You will need the IP address and the

password of the nutanix user, which you can find in Desktop\Files\SSH\nutanix.txt. Once you are logged in to the Controller VM, run the command:

cluster status | grep -v UP

This will show you which services are down on the Controller VM.

To start the cluster services, run the command:

cluster start

This will start all the cluster services on the Controller VM. To verify that the cluster services are running, run the command:

cluster status | grep -v UP

This should show no output, indicating that all services are up. To clear the alert, go back to Prism Element and click on Resolve in the Alerts page. To meet the security requirements for cluster level security, you need to do the following

steps:

To update the default password for the root user on the node to match the admin user password, you need to SSH to the node using the root user credentials. You can use any SSH client such as PuTTY or Windows PowerShell to connect to

the node. You will need the IP address and the password of the root user, which you can find in Desktop\Files\SSH\root.txt.

Once you are logged in to the node, run the command:

passwd

This will prompt you to enter a new password for the root user. Enter the same password as the admin user, which you can find in Desktop\Files\SSH\admin.txt. To update the default password for the nutanix user on the CVM to match the

admin user password, you need to SSH to the CVM using the nutanix user credentials. You can use any SSH client such as PuTTY or Windows PowerShell to connect to the CVM. You will need the IP address and the password of the nutanix

user, which you can find in Desktop\Files\SSH\nutanix.txt.

Once you are logged in to the CVM, run the command:

passwd

This will prompt you to enter a new password for the nutanix user. Enter the same password as the admin user, which you can find in Desktop\Files\SSH\admin.txt. To resolve the alert that is being reported, go back to Prism Element and click

on Resolve in the Alerts page.

To output the cluster-wide configuration of SCMA policy to Desktop\Files\output.txt before changes are made, you need to log in to Prism Element using the admin user credentials. Go to Security > SCMA Policy and click on View Policy

Details. This will show you the current settings of SCMA policy for each entity type. Copy and paste these settings into a new text file named Desktop\Files\output.txt. To enable AIDE (Advanced Intrusion Detection Environment) to run on a

weekly basis for the cluster, you need to log in to Prism Element using the admin user credentials. Go to Security > AIDE Configuration and click on Enable AIDE. This will enable AIDE to monitor file system changes on all CVMs and nodes in

the cluster. Select Weekly as the frequency of AIDE scans and click Save. To enable high-strength password policies for the cluster, you need to log in to Prism Element using the admin user credentials.

Go to Security > Password Policy and click on Edit Policy. This will allow you to modify the password policy settings for each entity type.

For each entity type (Admin User, Console User, CVM User, and Host User), select High Strength as the password policy level and click Save. To ensure CVMs require SSH keys for login instead of passwords, you need to log in to Prism

Element using the admin user credentials.

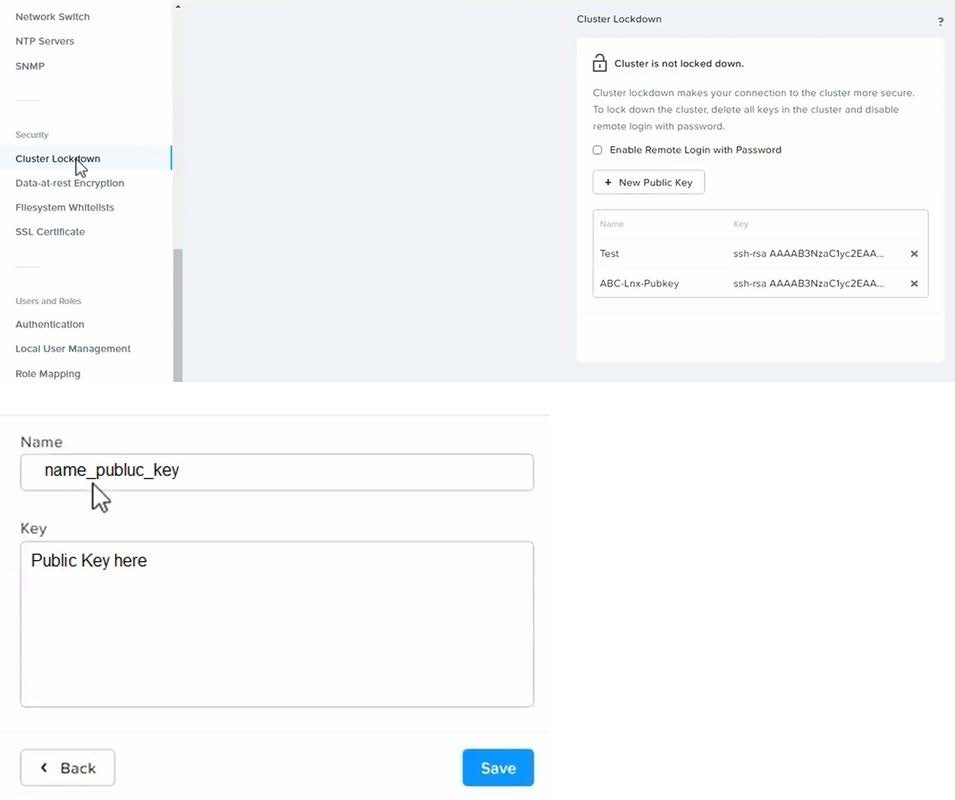

Go to Security > Cluster Lockdown and click on Configure Lockdown. This will allow you to manage SSH access settings for the cluster.

Uncheck Enable Remote Login with Password. This will disable password-based SSH access to the cluster.

Click New Public Key and enter a name for the key and paste the public key value from Desktop\Files\SSH\id_rsa.pub. This will add a public key for key-based SSH access to the cluster.

Click Save and Apply Lockdown. This will apply the changes and ensure CVMs require SSH keys for login instead of passwords.

Part1

Enter CVM ssh and execute:

cluster status | grep -v UP

cluster start

If there are issues starting some services, check the following:

Check if the node is in maintenance mode by running the ncli host ls command on the CVM. Verify if the parameter Under Maintenance Mode is set to False for the node where the services are down. If the parameter Under Maintenance

Mode is set to True, remove the node from maintenance mode by running the following command:

nutanix@cvm$ ncli host edit id= enable-maintenance-mode=false

You can determine the host ID by usingncli host ls. See the troubleshooting topics related to failed cluster services in the Advanced Administration Guide available from the Nutanix Portal'sSoftware Documentationpage. (Use the filters to

search for the guide for your AOS version). These topics have information about common and AOS-specific logs, such as Stargate, Cassandra, and other modules.

Check for any latest FATALs for the service that is down. The following command prints all the FATALs for a CVM. Run this command on all CVMs. nutanix@cvm$ for i in `svmips`; do echo "CVM: $i"; ssh $i "ls -ltr /home/nutanix/data/logs/

*.FATAL"; done

NCC Health Check: cluster_services_down_check (nutanix.com) Part2

Vlad Drac2023-06-05T13:22:00I'll update this one with a smaller, if possible, command Update the default password for the rootuser on the node to match the admin user password

echo -e "CHANGING ALL AHV HOST ROOT PASSWORDS.\nPlease input new password:

"; read -rs password1; echo "Confirm new password: "; read -rs password2; if [ "$password1" == "$password2" ]; then for host in $(hostips); do echo Host $host; echo $password1 | ssh root@$host "passwd --stdin root"; done; else echo "The

passwords do not match"; fi

Update the default password for the nutanix user on the CVM sudo passwd nutanix

Output the cluster-wide configuration of the SCMA policy ncli cluster get-hypervisor-security-config

Output Example:

nutanix@NTNX-372a19a3-A-CVM:10.35.150.184:~$ ncli cluster get-hypervisor-security- config

Enable Aide : false

Enable Core : false

Enable High Strength P... : false

Enable Banner : false

Schedule : DAILY

Enable iTLB Multihit M... : false

Enable the Advance intrusion Detection Environment (AIDE) to run on a weekly basis for the cluster.

ncli cluster edit-hypervisor-security-params enable-aide=true ncli cluster edit-hypervisor-security-params schedule=weekly

Enable high-strength password policies for the cluster. ncli cluster edit-hypervisor-security-params enable-high-strength-password=true

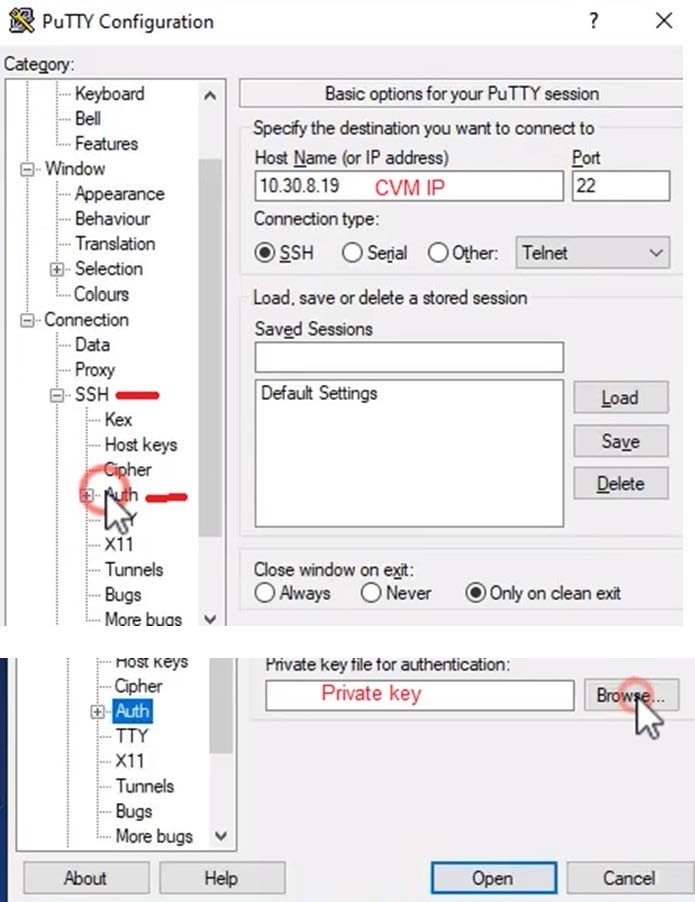

Ensure CVMs require SSH keys for login instead of passwords https://portal.nutanix.com/page/documents/kbs/details?targetId=kA0600000008gb3CAA

Correct Answer: A

To configure the cluster to meet the requirements for the new workload, you need to do the following steps: Create a new VLAN with ID 667 on the cluster. You can do this by logging in to Prism Element and going to Network Configuration > VLANs > Create VLAN. Enter 667 as the VLAN ID and a name for the VLAN, such as 667_VLAN. Create a new network segment with the network details provided. You can do this by logging in to Prism Central and going to Network > Network Segments > Create Network Segment. Enter a name for the network segment, such as 667_Network_Segment, and select 667_VLAN as the VLAN. Enter 192.168.0.0 as the Network Address and 255.255.255.0 as the Subnet Mask. Enter 192.168.0.1 as the Default Gateway and 34.82.231.220 as the DNS Server. Enter cyberdyne.net as the Domain Name. Create a new IP pool with the IP range provided. You can do this by logging in to Prism Central and going to Network > IP Pools > Create IP Pool. Enter a name for the IP pool, such as 667_IP_Pool, and select 667_Network_Segment as the Network Segment. Enter 192.168.9.100 as the Starting IP Address and 192.168.9.200 as the Ending IP Address. Configure the DHCP server with the IP address provided. You can do this by logging in to Prism Central and going to Network > DHCP Servers > Create DHCP Server. Enter a name for the DHCP server, such as 667_DHCP_Server, and select 667_Network_Segment as the Network Segment. Enter 192.168.0.2 as the IP Address and select 667_IP_Pool as the IP Pool.

Correct Answer: A

To configure the storage on the cluster for the distributed application, you can follow these steps:

Log in to Prism Element of cluster A using the credentials provided. Go to Storage > Storage Pools and click on Create Storage Pool. Enter a name for the new storage pool, such as Distributed_App_Storage_Pool, and select the disks to

include in the pool. You can choose any combination of SSDs and HDDs, but for low cost per GB, you may prefer to use more HDDs than SSDs.

Click Save to create the storage pool.

Go to Storage > Containers and click on Create Container. Enter a name for the new container, such as Distributed_App_Container, and select the storage pool that you just created, Distributed_App_Storage_Pool, as the source. Under

Advanced Settings, enable Erasure Coding and Compression to reduce the storage footprint of the data. You can also disable Replication Factor since data resilience is provided at the application level. These settings will help you achieve

low cost per GB for the container.

Click Save to create the container.

Go to Storage > Datastores and click on Create Datastore. Enter a name for the new datastore, such as Distributed_App_Datastore, and select NFS as the datastore type. Select the container that you just created, Distributed_App_Container,

as the source.

Click Save to create the datastore.

The datastore will be automatically mounted on all nodes in the cluster. You can verify this by going to Storage > Datastores and clicking on Distributed_App_Datastore. You should see all nodes listed under Hosts.

You can now create or migrate your worker VMs to this datastore and run them on any node in the cluster. The datastore will provide low cost per GB and high performance for your distributed application.

Correct Answer: A

https://portal.nutanix.com/page/documents/kbs/details?targetId=kA00e000000LLEzCAO https://jsonformatter.curiousconcept.com/#

acli net.list(uuid network defult_net)

ncli cluster info(uuid cluster)

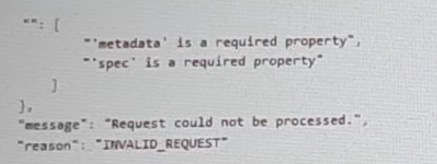

Put Call: https://Prism Central IP address : 9440/api/nutanix/v3vms Edit these lines to fix the API call, do not add new lines or copy lines. You can test using the Prism Element API explorer or PostMan Body:

{

{

"spec": {

"name": "Test_Deploy",

"resources": {

"power_state":"OFF",

"num_vcpus_per_socket": ,

"num_sockets": 1,

"memory_size_mib": 8192,

"disk_list": [

{

"disk_size_mib": 51200,

"device_properties": {

"device_type":"DISK"

}

},

{

"device_properties": {

"device_type":"CDROM"

}

}

],

"nic_list":[

{

"nic_type": "NORMAL_NIC",

"is_connected": true,

"ip_endpoint_list": [

{

"ip_type": "DHCP"

}

],

"subnet_reference": {

"kind": "subnet",

"name": "default_net",

"uuid": "00000000-0000-0000-0000-000000000000"

}

}

],

},

"cluster_reference": {

"kind": "cluster",

"name": "NTNXDemo",

"uuid": "00000000-0000-0000-0000-000000000000"

}

},

"api_version": "3.1.0",

"metadata": {

"kind": "vm"

}

}

https://www.nutanix.dev/2019/08/26/post-a-package-building-your-first-nutanix-rest-api- post-request/

Reference

Correct Answer: A

To configure traffic segmentation on an unconfigured node, you need to run the following commands on the node: manage_ovs --bond_name br0-up --bond_mode active-backup --interfaces eth0,eth1 update_uplinks manage_ovs --bridge_name br0-up --interfaces eth2,eth3 --bond_name bond1 --bond_mode balance-slb update_uplinks These commands will create a bond named br0-up with eth0 and eth1 as active and passive interfaces, and assign it to the default bridge. Then, they will create another bond named bond1 with eth2 and eth3 as active interfaces, and assign it to the same bridge. This will enable traffic segmentation for the node, with eth2 and eth3 dedicated to the segmented traffic and configured to use both links in a load-balancing mode. I have replaced the x in the file Desktop\Files\Network \unconfigured.txt with the appropriate character or string for you. You can find the updated file in Desktop\Files\Network\configured.txt.

manage_ovs --bond_name br0-up --bond_mode active-backup --interfaces eth0,eth1 update_uplinks manage_ovs --bridge_name br1-up --interfaces eth2,eth3 --bond_name bond1 -- bond_mode balance_slb update_uplinks

https://portal.nutanix.com/page/documents/solutions/details?targetId=BP-2071-AHV- Networking:ovs-command-line-configuration.html

Correct Answer: A

To restore the VM and ensure it is reachable on the network, you can follow these steps:

Log in to the Web Console of the cluster where the VM is running. Click on Virtual Machines on the left menu and find Cent_Down from the list. Click on the power icon to power off the VM.

Click on the snapshot icon next to the power icon to open the Snapshot Management window.

Select a snapshot from the list that was taken before the network stack was corrupted. You can use the date and time information to choose a suitable snapshot. Click on Restore VM and confirm the action in the dialog box. Wait for the

restore process to complete.

Click on the power icon again to power on the VM. Log in to the VM using SSH or console with the username and password provided. Run the command ping 172.31.0.1 to verify that the VM is reachable on the network. You should see a

reply from the destination IP address.

Go to VMS from the prism central gui

Select the VMand go to More -> Guest Shutdown

Go to Snapshots tab and revert to latest snapshot available power on vm and verify if ping is working
