Refer to the scenario.

A customer requires these rights for clients in the "medical-mobile" AOS firewall role on Aruba Mobility Controllers (MCs):

1.

Permitted to receive IP addresses with DHCP

2.

Permitted access to DNS services from 10.8.9.7 and no other server

3.

Permitted access to all subnets in the 10.1.0.0/16 range except denied access to 10.1.12.0/22

4.

Denied access to other 10.0.0.0/8 subnets

5.

Permitted access to the Internet

6.

Denied access to the WLAN for a period of time if they send any SSH traffic

7.

Denied access to the WLAN for a period of time if they send any Telnet traffic

8.

Denied access to all high-risk websites

External devices should not be permitted to initiate sessions with "medical-mobile" clients, only send return traffic.

The exhibits below show the configuration for the role.

There are multiple issues with this configuration. What is one change you must make to meet the scenario requirements? (In the options, rules in a policy are referenced from top to bottom. For example, "medical-mobile" rule 1 is "ipv4 any any svc-dhcp permit," and rule 8 is "ipv4 any any any permit".)

A. In the "medical-mobile" policy, move rules 2 and 3 between rules 7 and 8.

B. In the "medical-mobile" policy, change the subnet mask in rule 3 to 255.255.248.0.

C. Move the rule in the "apprf-medical-mobile-sacl" policy between rules 7 and 8 in the "medical-mobile" policy.

D. In the "medical-mobile" policy, change the source in rule 8 to "user."

Refer to the scenario.

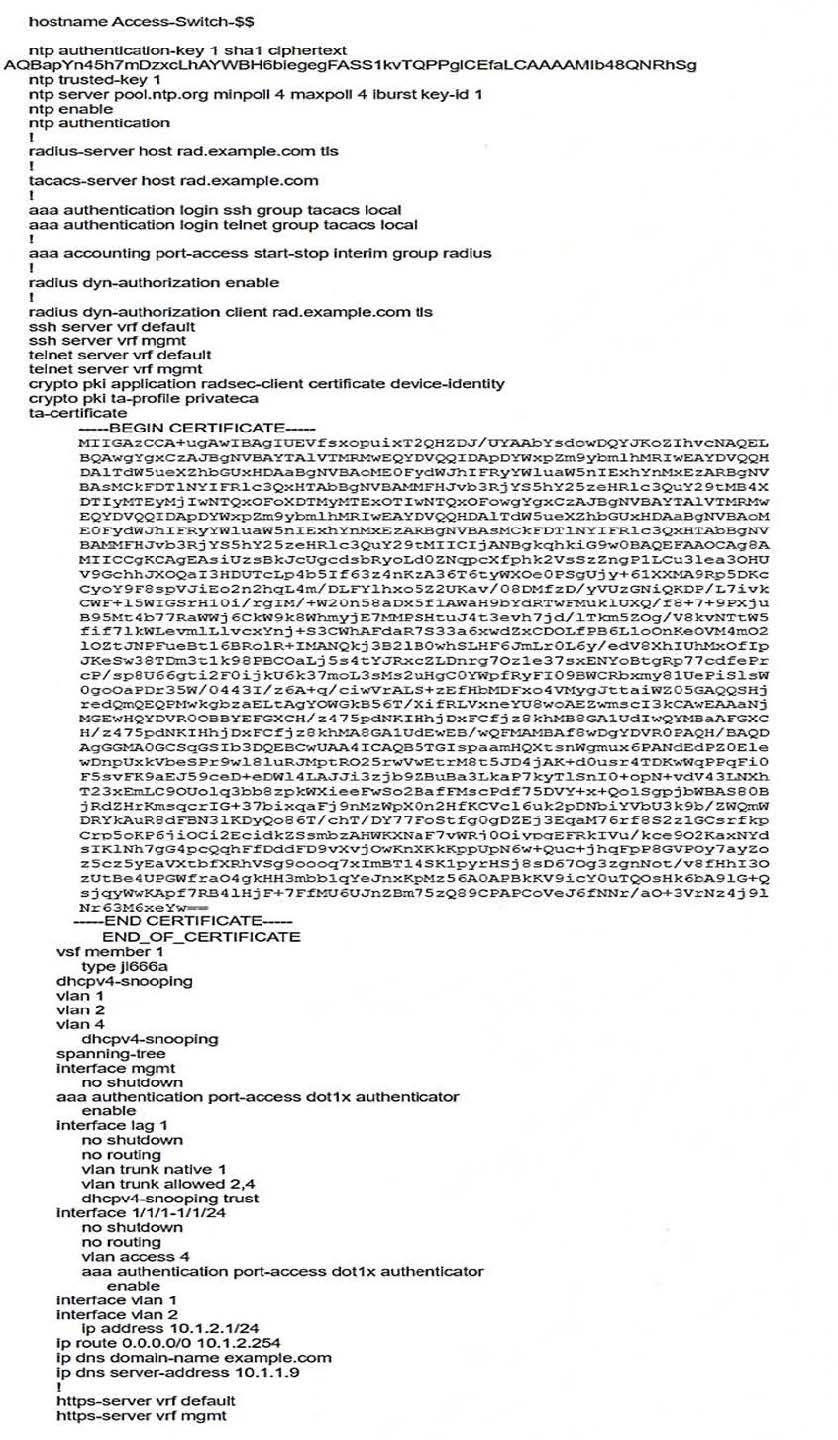

A customer has asked you to review their AOS-CX switches for potential vulnerabilities. The configuration for these switches is shown below:

What is one recommendation to make?

A. Let the RADIUS server confiqure VLANs on LAG 1 dynamically.

B. Use MDS instead of SHA1 for the NTP authentication key.

C. Encrypt the certificate in the TA-profile.

D. Create a control plane ACL to limit the sources that can access the switch with SSH.

Several AOS-CX switches are responding to SNMPv2 GET requests for the public community. The customer only permits SNMPv3. You have asked a network admin to fix this problem. The admin says, "I tried to remove the community, but the CLI output an error."

What should you recommend to remediate the vulnerability and meet the customer's requirements?

A. Enabling control plane policing to automatically drop SNMP GET requests

B. Setting the snmp-server settings to "snmpv3-only"

C. Adding an SNMP community with a long random name

D. Enabling SNMPv3, which implicitly disables SNMPv1/v2

Refer to the scenario.

# Introduction to the customer

You are helping a company add Aruba ClearPass to their network, which uses Aruba network infrastructure devices.

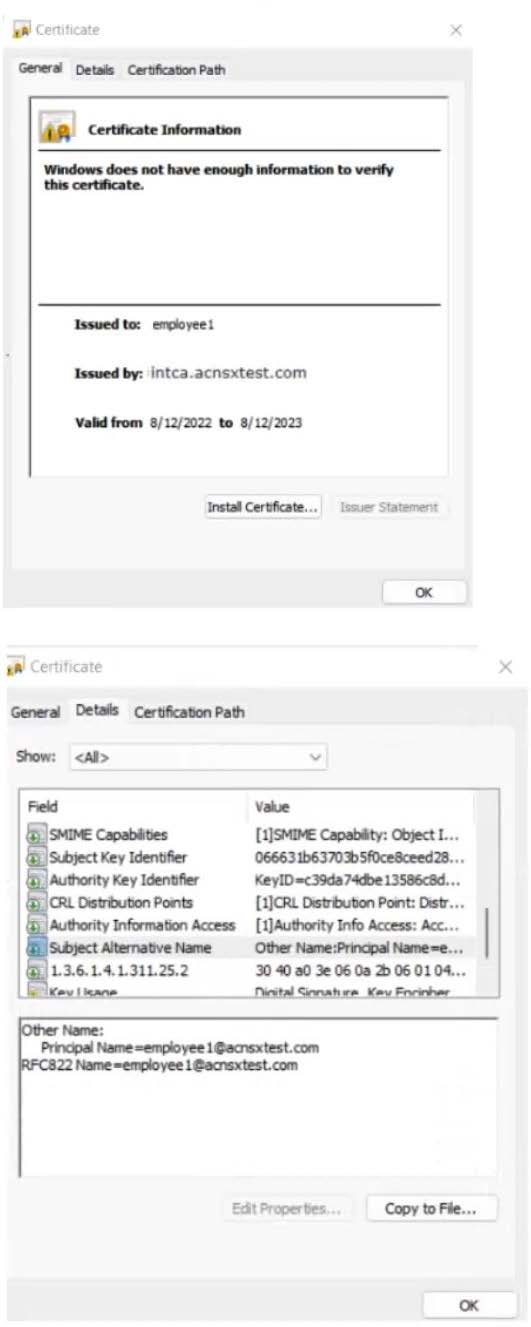

The company currently has a Windows domain and Windows CA. The Window CA issues certificates to domain computers, domain users, and servers such as domain controllers. An example of a certificate issued by the Windows CA is shown here.

The company is in the process of adding Microsoft Endpoint Manager (Intune) to manage its mobile clients. The customer is maintaining the on-prem AD for now and uses Azure AD Connect to sync with Azure AD.

# Requirements for issuing certificates to mobile clients

The company wants to use ClearPass Onboard to deploy certificates automatically to mobile clients enrolled in Intune. During this process, Onboard should communicate with Azure AD to validate the clients. High availability should also be

provided for this scenario; in other words, clients should be able to get certificates from Subscriber 2 if Subscriber 1 is down.

The Intune admins intend to create certificate profiles that include a UPN SAN with the UPN of the user who enrolled the device.

# Requirements for authenticating clients

The customer requires all types of clients to connect and authenticate on the same corporate SSID.

The company wants CPPM to use these authentication methods:

1.

EAP-TLS to authenticate users on mobile clients registered in Intune

2.

TEAR, with EAP-TLS as the inner method to authenticate Windows domain computers and the users on them To succeed, EAP-TLS (standalone or as a TEAP method) clients must meet these requirements:

1.

Their certificate is valid and is not revoked, as validated by OCSP

2.

The client's username matches an account in AD

# Requirements for assigning clients to roles

After authentication, the customer wants the CPPM to assign clients to ClearPass roles based on the following rules:

1.

Clients with certificates issued by Onboard are assigned the "mobile-onboarded" role

2.

Clients that have passed TEAP Method 1 are assigned the "domain-computer" role

3.

Clients in the AD group "Medical" are assigned the "medical-staff" role

4.

Clients in the AD group "Reception" are assigned to the "reception-staff" role

The customer requires CPPM to assign authenticated clients to AOS firewall roles as follows:

1.

Assign medical staff on mobile-onboarded clients to the "medical-mobile" firewall role

2.

Assign other mobile-onboarded clients to the "mobile-other" firewall role

3.

Assign medical staff on domain computers to the "medical-domain" firewall role

4.

All reception staff on domain computers to the "reception-domain" firewall role

5.

All domain computers with no valid user logged in to the "computer-only" firewall role

6.

Deny other clients access

# Other requirements

Communications between ClearPass servers and on-prem AD domain controllers must be encrypted.

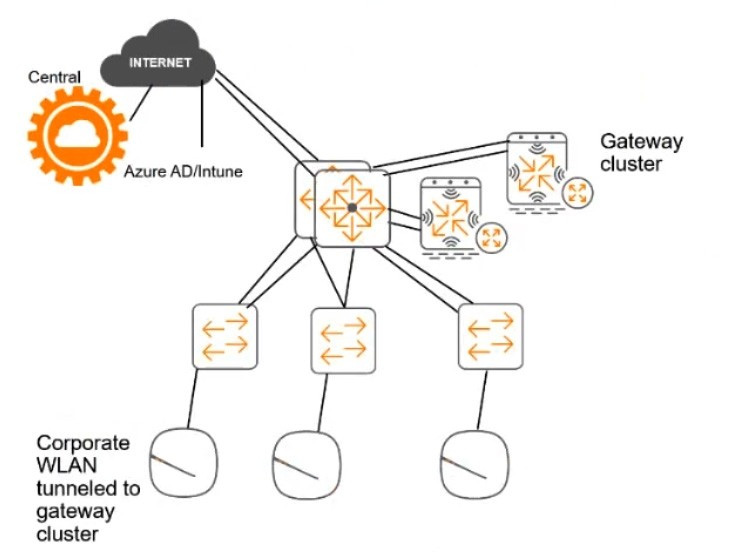

# Network topology

For the network infrastructure, this customer has Aruba APs and Aruba gateways, which are managed by Central. APs use tunneled WLANs, which tunnel traffic to the gateway cluster. The customer also has AOS-CX switches that are not managed by Central at this point.

# ClearPass cluster IP addressing and hostnames

A customer's ClearPass cluster has these IP addresses:

1.

Publisher = 10.47.47.5

2.

Subscriber 1 = 10.47.47.6

3.

Subscriber 2 = 10.47.47.7

4.

Virtual IP with Subscriber 1 and Subscriber 2 = 10.47.47.8

The customer's DNS server has these entries

1.

cp.acnsxtest.com = 10.47.47.5

2.

cps1.acnsxtest.com = 10.47.47.6

3.

cps2.acnsxtest.com = 10.47.47.7

4.

radius.acnsxtest.com = 10.47.47.8

5.

onboard.acnsxtest.com = 10.47.47.8

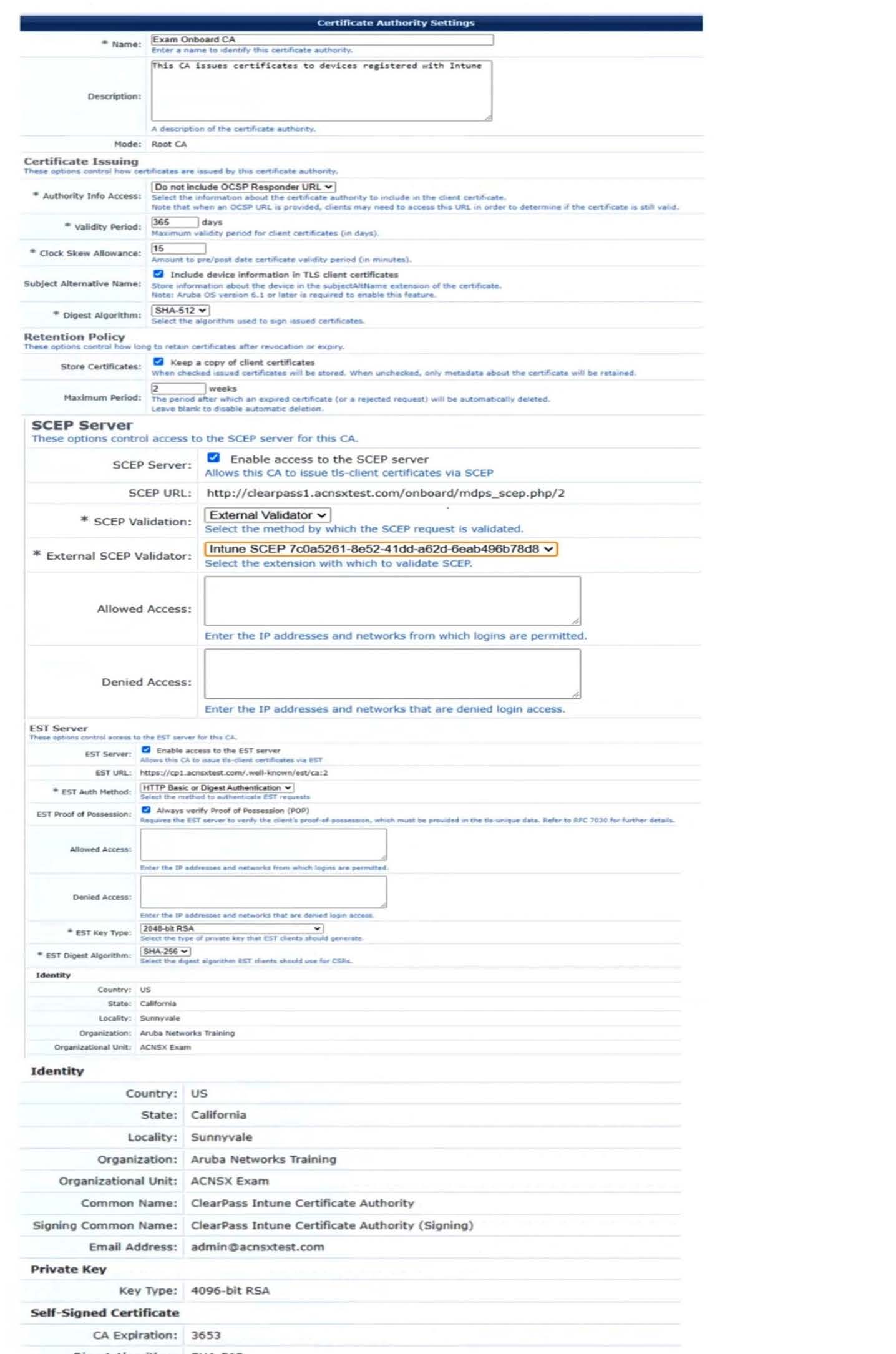

You have started to create a CA to meet the customer's requirements for issuing certificates to mobile clients, as shown in the exhibit below.

What change will help to meet those requirements and the requirements for authenticating clients?

A. Change the EST authentication method to use an external validator.

B. Change the EST Digest Algorithm to SHA-512.

C. Recreate the CA as a registration authority under Azure AD.

D. Specify an OCSP responder, setting the hostname to localhost.

A customer has an AOS 10 architecture, consisting of Aruba AP and AOS-CX switches, managed by Aruba Central. The customer wants to obtain information about the clients, such as their general category and OS. What should you explain?

A. The customer must deploy Aruba gateways in order to receive any client profiling information.

B. You will need to set up Aruba Central as a secondary IP helper for client VLANs, but this will not interfere with existing operations.

C. Aruba Central will automatically derive this information using telemetry from the Aruba devices.

D. The customer should set up a dedicated switch VSX group to sniff packets and direct them to Aruba Central.
