A network administrator is in charge of a Mobility Master (MM) ?Mobility Controller (MC) based WLAN. The administrator has deployed an Airwave Management Platform (AMP) server in order to improve the monitoring capabilities and

generate reports and alerts.

The administrator has configured SNMPv3 and Admin credentials on both the MMs and MCs and has created Groups and Folders in the AMP server.

What two additional steps must the administrator do in order to let Airwave monitor the network devices? (Choose two.)

A. Manually add the Active MM and wait for automatic Discovery.

B. Map the AMP's IP address with a mgmt-config profile in the MM.

C. Set the AMP's IP address and Org string as DHCP option 43.

D. Manually add each MM, MC and Access Point in the AMP server.

E. Move "New" devices into a group and folder in Airwave.

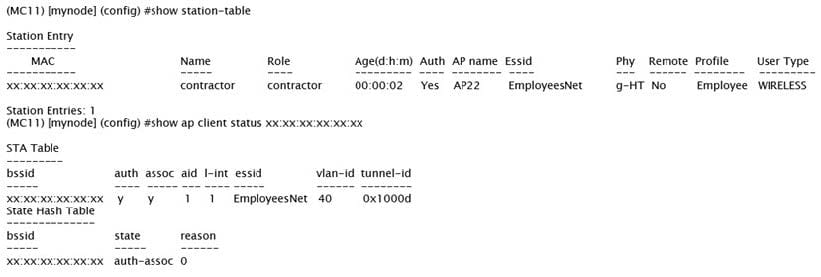

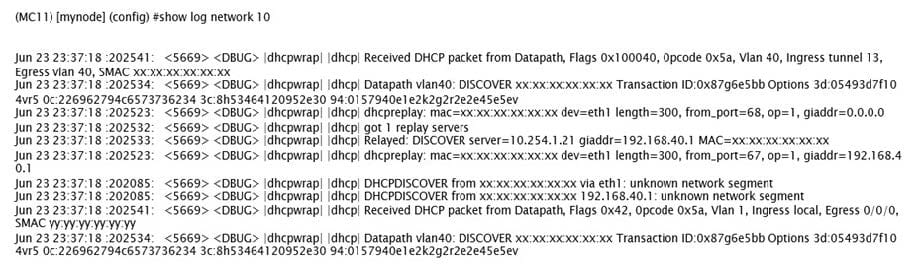

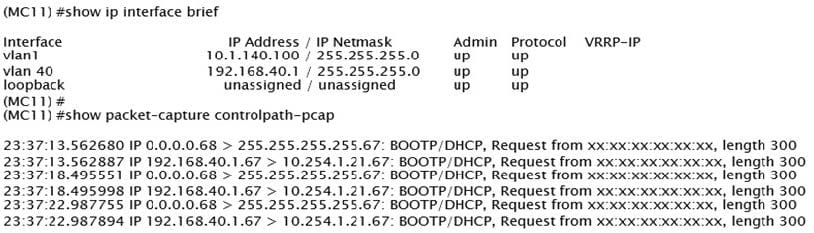

Refer to the exhibits. Exhibit 1

Exhibit 2

Exhibit 3

A network administrator wants to allow contractors to access the corporate WLAN named EmployeesNet with the contractor role in VLAN 40. When users connect, they do not seem to get an IP address. After some verification checks, the network administrator confirms the DHCP server (10.254.1.21) is reachable from the Mobility Controller (MC) and obtains the outputs shown in the exhibits.

What should the network administrator do next to troubleshoot this problem?

A. Permit UDP67 to the contractor role.

B. Remove the IP address in VLAN 40.

C. Configure the DHCP helper address.

D. Confirm there is an IP pool for VLAN 40.

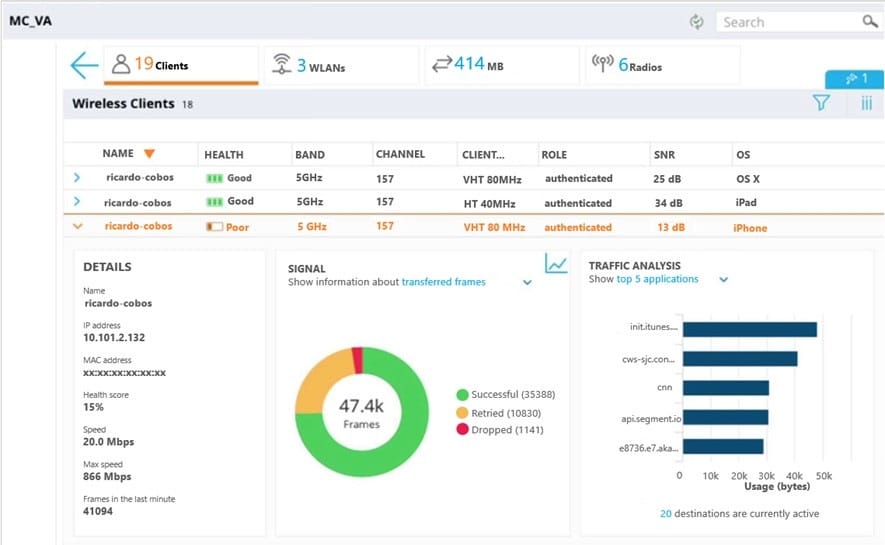

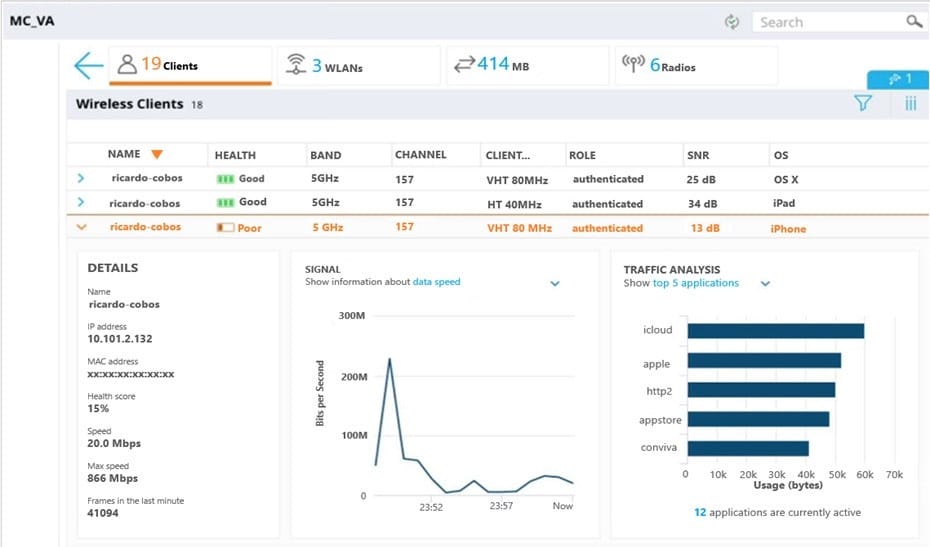

Refer to the exhibits.

A user reports slow response time to a network administrator and suggests that there might be a problem with the WLAN. The user's phone supports 802.11ac in the 5 GHz band. The network administrator finds the user in the Mobility Master (MM) and reviews the output shown in the exhibit.

What can the network administrator conclude after analyzing the data?

A. The low SNR forces the client to back off to low MCs, therefore speed is low and retransmits are high.

B. Client health is poor, but SNR is fair. TX power must be increased in both the client and the AP.

C. Since SNR is good, then the high retransmit rate must be due a hidden node scenario or high interference.

D. High Successful frame count and high Max Speed is an indication of a healthy client. Connection will improve at any time.

A network administrator has deployed an Airwave Management Platform (AMP) server and integrated it with a Mobility Master (MM) ?Mobility Controller (MC) based WLAN. The AMP server already has all Aruba Mobility devices including Access Points (APs) in the "UP" devices list.

What are two actions the administrator can execute upon the APs under "Airwave>Devices>Monitor"? (Choose two.)

A. Open the WebUI of the MC where the AP terminates.

B. Re-provision the Access Point.

C. Disable and change the mode of the AP's radios.

D. Invoke MC's show commands for that Access Point.

E. Run Spectrum Analysis locally.

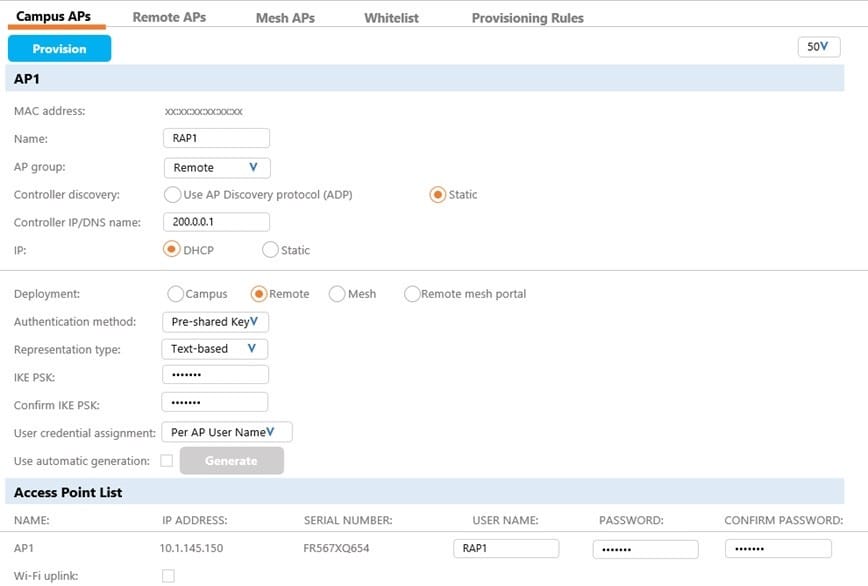

Refer to the exhibit.

A network administrator has a Mobility Master (MM) Mobility Controller (MC) architecture along with the MC in the DMZ for terminating RAPs. The network firewall has been provisioned to allow access to the MC in the DMZ for both UDP 500 and 4500. Then he proceeds to provision an AP as shown in the exhibit.

Which additional configuration steps must the administrator to assure RAPs successfully contact the MC? (Choose two.)

A. Create the RAP1 account in the InternalDB of the MC.

B. Create an IP local pool and PSK at the device node level.

C. Create the RAP1 account in the InternalDB of the MM.

D. Add the RAP1 entry in the CPsec whitelist at the MM level.

E. Create an IP local pool and PSK at the /mm/mynode level.
