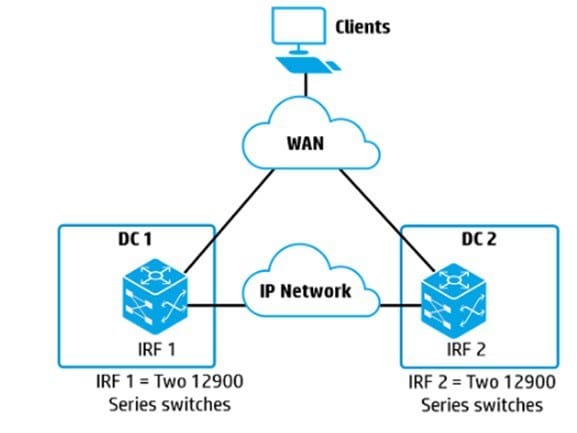

Refer to the exhibit

The exhibit displays a company with two data centers that connect by using EVl. The company needs a

redundant solution for routing traffic between the subnets.

What is the best way to accomplish this goal?

A. Run Virtual Router Redundancy Protocol (VRRP) on the data center subnets

B. Place the EVl tunnel interface on each IRF virtual device in a different VPN instance, and then set up routing on each device by using the same IP addresses.

C. Use TRILL on the EVl network.

D. Combine IRF 1 and IRF 2 into the same IRF virtual device, and set up routing on that device

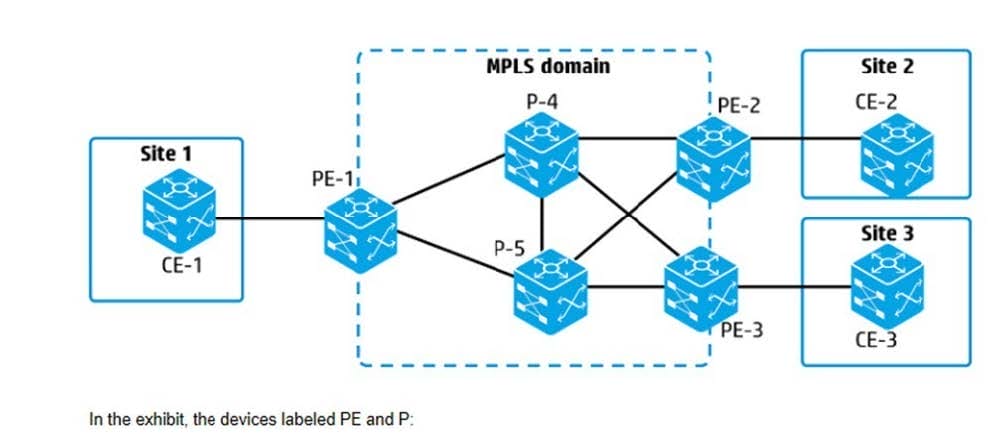

Refer to the exhibit

useOSPF

have established an MPLS domain.

use LDP.

have established a Martini Layer 2 VPN between Sites 1 and 2

VPN traffic is using the link between PE-1 and P-4, and this link fails.

What happens to the VPN traffic?

A. It is disrupted for this particular site-to-site connection until the link is fixed

B. It fails over to the link between PE-1 and P-5 only //administrators created a backup virtual circuit (VC) from PE-1 to

C. It fails over to the link between PE-1 and P-5 only if administrators created two virtual circuits (VCs) between PE-1

D. and PE-2.

E. It fails over to the link between PE-1 and P-5. The failover is automatically handled by MPLS. LDP, and OSPF

Which advantage does a VPLS solution offer over a simple MPLS Layer 2 VPN solution?

A. provides data integrity and privacy for the company traffic

B. provides MAC learning for VLANs extended across the MPLS region

C. allows for a hub and spoke pseudo wire (PW) configuration instead of a full mesh configuration

D. extends Layer 2 connectivity across an IP network that uses non-Ethernet media

An administrator binds VLAN interface 10 to VPN instance "TenantA" on an HP Comware switch by using this configuration: interfaceVlan-interface 10 ip address 10.1.10.1 255.255.255.0 How does the administrator's action affect the interface IP address?

A. The interface loses the IP address, and the administrator must configure the IP address on this interface again.

B. The IP address remains 10.1.10.1/24 but is extended with the Route Distinguisher (RD) and can now be assigned to an interface in another VPN instance.

C. The interface loses the IP address and the administrator must map the interface to 10.1 10.1/24 from the VPN instance context

D. The IP address remains 10.1 10.1/24. but now this subnet can also be assigned to an interface in another VPN instance.

An HP IRF virtual switch with two members is implementing TRILL. The administrator wants to ensure that the master can fail without causing topology changes or changes in forwarding tables in the TRILL region. Which setting helps support this requirement?

A. Graceful Restart for TRILL

B. Bidirectional Forwarding Detection (BFD) Multi-Active Detection (MAD) for the IRF link

C. calculation of at least two trees

D. non-stop-forwarding for TRILL
