CKS Online Practice Questions and Answers

Correct Answer: A

Correct Answer: A

Fix all of the following violations that were found against the API server:

a. Ensure that the RotateKubeletServerCertificate argument is set to true.

apiVersion: v1 kind: Pod metadata: creationTimestamp: null labels: component: kubelet tier: control-plane name: kubelet namespace: kube-system spec: containers:

-command:

-kube-controller-manager + - --feature-gates=RotateKubeletServerCertificate=true image: gcr.io/google_containers/kubelet-amd64:v1.6.0 livenessProbe: failureThreshold: 8 httpGet: host: 127.0.0.1 path: /healthz port: 6443 scheme: HTTPS initialDelaySeconds: 15 timeoutSeconds: 15 name: kubelet resources: requests: cpu: 250m volumeMounts:

-

mountPath: /etc/kubernetes/ name: k8s readOnly: true

-

mountPath: /etc/ssl/certs name: certs

-

mountPath: /etc/pki name: pki hostNetwork: true volumes:

-

hostPath: path: /etc/kubernetes name: k8s

-

hostPath: path: /etc/ssl/certs name: certs

-

hostPath: path: /etc/pki name: pki

b.

Ensure that the admission control plugin PodSecurityPolicy is set.

audit: "/bin/ps -ef | grep $apiserverbin | grep -v grep"

tests:

test_items:

-flag: "--enable-admission-plugins"

compare:

op: has

value: "PodSecurityPolicy"

set: true

remediation: |

Follow the documentation and create Pod Security Policy objects as per your environment.

Then, edit the API server pod specification file $apiserverconf

on the master node and set the --enable-admission-plugins parameter to a

value that includes PodSecurityPolicy :

--enable-admission-plugins=...,PodSecurityPolicy,...

Then restart the API Server.

scored: true

c. Ensure that the --kubelet-certificate-authority argument is set as appropriate. audit: "/bin/ps -ef | grep $apiserverbin | grep -v grep"

tests: test_items:

-flag: "--kubelet-certificate-authority"

set: true

remediation: |

Follow the Kubernetes documentation and setup the TLS connection between the

apiserver and kubelets. Then, edit the API server pod specification file

$apiserverconf on the master node and set the --kubelet-certificate-authority

parameter to the path to the cert file for the certificate authority.

--kubelet-certificate-authority=

scored: true

Fix all of the following violations that were found against the ETCD:

a.

Ensure that the --auto-tls argument is not set to true Edit the etcd pod specification file $etcdconf on the masternode and either remove the -- auto-tls parameter or set it to false.--auto-tls=false

b.

Ensure that the --peer-auto-tls argument is not set to true

Edit the etcd pod specification file $etcdconf on the masternode and either remove the -- peer-auto-tls parameter or set it to false.--peer-auto-tls=false

Correct Answer: A

apiVersion: policy/v1beta1

kind: PodSecurityPolicy

metadata:

name: restricted

annotations:

seccomp.security.alpha.kubernetes.io/allowedProfileNames:

'docker/default,runtime/default'

apparmor.security.beta.kubernetes.io/allowedProfileNames: 'runtime/default' seccomp.security.alpha.kubernetes.io/defaultProfileName: 'runtime/default' apparmor.security.beta.kubernetes.io/defaultProfileName: 'runtime/default' spec:

privileged: false

# Required to prevent escalations to root.

allowPrivilegeEscalation: false

# This is redundant with non-root + disallow privilege escalation, # but we can provide it for defense in depth.

requiredDropCapabilities:

-ALL

# Allow core volume types.

volumes:

-'configMap'

-'emptyDir'

-'projected'

-'secret'

-'downwardAPI'

# Assume that persistentVolumes set up by the cluster admin are safe to use.

-'persistentVolumeClaim'

hostNetwork: false

hostIPC: false

hostPID: false

runAsUser:

# Require the container to run without root privileges.

rule: 'MustRunAsNonRoot'

seLinux:

# This policy assumes the nodes are using AppArmor rather than SELinux.

rule: 'RunAsAny'

supplementalGroups:

rule: 'MustRunAs'

ranges:

# Forbid adding the root group.

-

min: 1

max: 65535

fsGroup:

rule: 'MustRunAs'

ranges:

# Forbid adding the root group.

-

min: 1

max: 65535

readOnlyRootFilesystem: false

Correct Answer: A

Correct Answer: A

1. For Dockerfile: Fix the image version and user name in Dockerfile2. For mydeployment.yaml : Fix security contexts

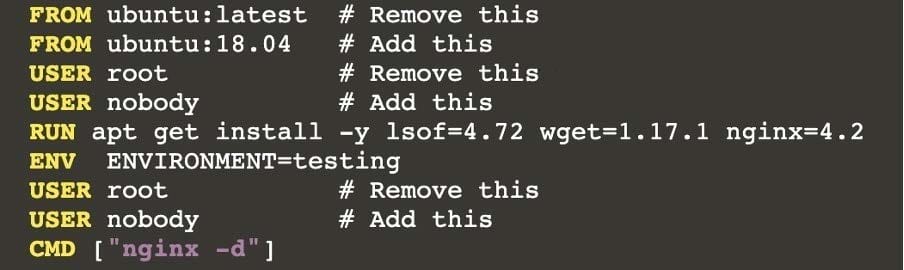

Explanation[desk@cli] $ vim /home/cert_masters/Dockerfile FROM ubuntu:latest # Remove this FROM ubuntu:18.04 # Add this USER root # Remove this USER nobody # Add this RUN apt get install -y lsof=4.72 wget=1.17.1 nginx=4.2 ENV ENVIRONMENT=testing USER root # Remove this USER nobody # Add this CMD ["nginx -d"]

Text

[desk@cli] $ vim /home/cert_masters/mydeployment.yaml

apiVersion: apps/v1

kind: Deployment

metadata:

creationTimestamp: null

labels:

app: kafka

name: kafka

spec:

replicas: 1

selector:

matchLabels:

app: kafka

strategy: {}

template:

metadata:

creationTimestamp: null

labels:

app: kafka

spec:

containers:

-image: bitnami/kafka

name: kafka

volumeMounts:

-

name: kafka-vol

mountPath: /var/lib/kafka

securityContext:

{"capabilities":{"add":["NET_ADMIN"],"drop":["all"]},"privileged":

True,"readOnlyRootFilesystem": False, "runAsUser": 65535} # Delete This {"capabilities":{"add":["NET_ADMIN"],"drop":["all"]},"privileged":

False,"readOnlyRootFilesystem": True, "runAsUser": 65535} # Add This resources: {}

volumes:

-

name: kafka-vol

emptyDir: {}

status: {}

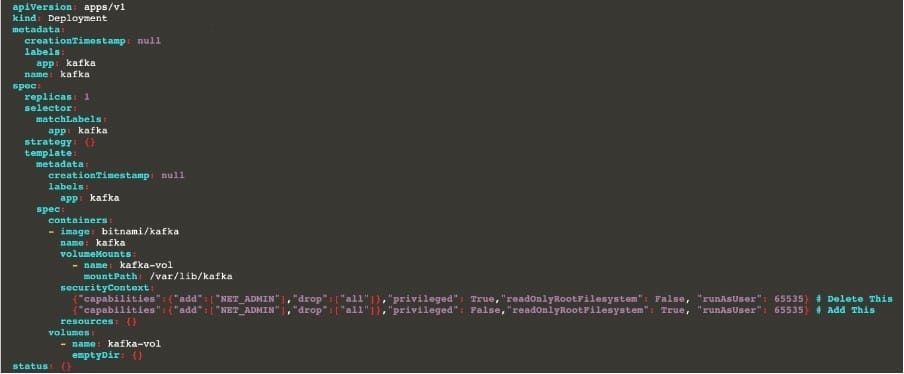

Pictorial View:[desk@cli] $ vim /home/cert_masters/mydeployment.yaml

Correct Answer: A

Correct Answer: A

Correct Answer: A

To add a Kubernetes cluster to your project, group, or instance:

1.

Navigate to your:

2.

Click Add Kubernetes cluster.

3.

Click the Add existing cluster tab and fill in the details:

Get the API URL by running this command:

kubectl cluster-info | grep -E 'Kubernetes master|Kubernetes control plane' | awk '/http/ {print $NF}'

uk.co.certification.simulator.questionpool.PList@113e1f90

kubectl get secret -o jsonpath="{['data']['ca\.crt']}"

Correct Answer: A

Create a PSP that will prevent the creation of privileged pods in the namespace. $ cat clusterrole-use-privileged.yaml apiVersion: rbac.authorization.k8s.io/v1

kind: ClusterRole metadata: name: use-privileged-psp rules:

-apiGroups: ['policy']

resources: ['podsecuritypolicies']

verbs: ['use']

resourceNames:

-default-psp

apiVersion: rbac.authorization.k8s.io/v1 kind: RoleBinding metadata: name: privileged-role-bind namespace: psp-test roleRef: apiGroup: rbac.authorization.k8s.io kind: ClusterRole name: use-privileged-psp subjects:

-kind: ServiceAccount name: privileged-sa $ kubectl -n psp-test apply -f clusterrole-use-privileged.yaml

After a few moments, the privileged Pod should be created.

Create a new PodSecurityPolicy named prevent-privileged-policy which prevents the creation of privileged pods.

apiVersion: policy/v1beta1

kind: PodSecurityPolicy

metadata:

name: example

spec:

privileged: false # Don't allow privileged pods!

# The rest fills in some required fields.

seLinux:

rule: RunAsAny

supplementalGroups:

rule: RunAsAny

runAsUser:

rule: RunAsAny

fsGroup:

rule: RunAsAny

volumes:

-'*'

And create it with kubectl:

kubectl-admin create -f example-psp.yaml

Now, as the unprivileged user, try to create a simple pod:

kubectl-user create -f- <

apiVersion: v1

kind: Pod

metadata:

name: pause

spec:

containers:

-name: pause

image: k8s.gcr.io/pause

EOF

The output is similar to this:

Error from server (Forbidden): error when creating "STDIN": pods "pause" is forbidden:

unable to validate against any pod security policy: []

Create a new ServiceAccount named psp-sa in the namespace default.

$ cat clusterrole-use-privileged.yaml

apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRole metadata: name: use-privileged-psp rules:

-apiGroups: ['policy']

resources: ['podsecuritypolicies']

verbs: ['use']

resourceNames:

-default-psp

apiVersion: rbac.authorization.k8s.io/v1 kind: RoleBinding metadata: name: privileged-role-bind namespace: psp-test roleRef: apiGroup: rbac.authorization.k8s.io kind: ClusterRole name: use-privileged-psp subjects:

-kind: ServiceAccount name: privileged-sa $ kubectl -n psp-test apply -f clusterrole-use-privileged.yaml After a few moments, the privileged Pod should be created.

Create a new ClusterRole named prevent-role, which uses the newly created Pod Security Policy prevent-privileged-policy.

apiVersion: policy/v1beta1

kind: PodSecurityPolicy

metadata:

name: example

spec:

privileged: false # Don't allow privileged pods!

# The rest fills in some required fields.

seLinux:

rule: RunAsAny

supplementalGroups:

rule: RunAsAny

runAsUser:

rule: RunAsAny

fsGroup:

rule: RunAsAny

volumes:

-'*'

And create it with kubectl:

kubectl-admin create -f example-psp.yaml

Now, as the unprivileged user, try to create a simple pod:

kubectl-user create -f- <

apiVersion: v1

kind: Pod

metadata:

name: pause

spec:

containers:

-name: pause

image: k8s.gcr.io/pause

EOF

The output is similar to this:

Error from server (Forbidden): error when creating "STDIN": pods "pause" is forbidden:

unable to validate against any pod security policy: []

Create a new ClusterRoleBinding named prevent-role-binding, which binds the created ClusterRole prevent-role to the created SA psp-sa.

apiVersion: rbac.authorization.k8s.io/v1

# This role binding allows "jane" to read pods in the "default" namespace. # You need to already have a Role named "pod-reader" in that namespace.

kind: RoleBinding

metadata:

name: read-pods

namespace: default

subjects:

# You can specify more than one "subject"

-kind: User name: jane # "name" is case sensitive apiGroup: rbac.authorization.k8s.io roleRef: # "roleRef" specifies the binding to a Role / ClusterRole kind: Role #this must be Role or ClusterRole name: pod-reader # this must match the name of the Role or ClusterRole you wish to bind to apiGroup: rbac.authorization.k8s.io

apiVersion: rbac.authorization.k8s.io/v1 kind: Role metadata: namespace: default name: pod-reader rules:

-apiGroups: [""] # "" indicates the core API group resources: ["pods"] verbs: ["get", "watch", "list"]

Correct Answer: A

root# netstat -ltnup

Active Internet connections (only servers)

Proto Recv-Q Send-Q Local Address Foreign Address State PID/Program name

tcp 0 0 127.0.0.1:17600 0.0.0.0:* LISTEN 1293/dropbox

tcp 0 0 127.0.0.1:17603 0.0.0.0:* LISTEN 1293/dropbox

tcp 0 0 0.0.0.0:22 0.0.0.0:* LISTEN 575/sshd

tcp 0 0 127.0.0.1:9393 0.0.0.0:* LISTEN 900/perl

tcp 0 0 :::80 :::* LISTEN 9583/docker-proxy

tcp 0 0 :::443 :::* LISTEN 9571/docker-proxy

udp 0 0 0.0.0.0:68 0.0.0.0:* 8822/dhcpcd

root# netstat -ltnup | grep ':22'

tcp 0 0 0.0.0.0:22 0.0.0.0:* LISTEN 575/sshd

The ss command is the replacement of the netstat command.

Now let's see how to use the ss command to see which process is listening on port 22:

root# ss -ltnup 'sport = :22'

Netid State Recv-Q Send-Q Local Address:Port Peer Address:Port

tcp LISTEN 0 128 0.0.0.0:22 0.0.0.0:* users:("sshd",pid=575,fd=3))

Correct Answer: A

Create psp to disallow privileged container uk.co.certification.simulator.questionpool.PList@11600d40 k create sa psp-denial-sa -n development uk.co.certification.simulator.questionpool.PList@11601040 namespace: development Explanationmaster1 $ vim psp.yaml apiVersion: policy/v1beta1 kind: PodSecurityPolicy metadata: name: deny-policy spec: privileged: false # Don't allow privileged pods! seLinux: rule: RunAsAny supplementalGroups: rule: RunAsAny runAsUser: rule: RunAsAny fsGroup: rule: RunAsAny volumes:

-'*'

master1 $ vim cr1.yaml

apiVersion: rbac.authorization.k8s.io/v1

kind: ClusterRole

metadata:

name: deny-access-role

rules:

-apiGroups: ['policy']

resources: ['podsecuritypolicies']

verbs: ['use']

resourceNames:

-"deny-policy"

master1 $ k create sa psp-denial-sa -n developmentmaster1 $ vim cb1.yaml apiVersion: rbac.authorization.k8s.io/v1

kind: ClusterRoleBinding

metadata:

name: restrict-access-bing

roleRef:

kind: ClusterRole

name: deny-access-role

apiGroup: rbac.authorization.k8s.io

subjects:

# Authorize specific service accounts:

-kind: ServiceAccount

name: psp-denial-sa

namespace: development

Correct Answer: A

worker1 $ vim /var/lib/kubelet/config.yaml uk.co.certification.simulator.questionpool.PList@132b77a0 worker1 $ systemctl restart kubelet. # To reload kubelet configssh to master1master1 $ vim /etc/kubernetes/manifests/kube-apiserver.yaml- -- authorizationmode=Node,RBACmaster1 $ vim /etc/kubernetes/manifests/etcd.yaml- --client-cert- auth=true

Explanationssh to worker1worker1 $ vim /var/lib/kubelet/config.yaml apiVersion: kubelet.config.k8s.io/v1beta1 authentication: anonymous: enabled: true #Delete this enabled: false #Replace by this webhook: cacheTTL: 0s enabled: true x509: clientCAFile: /etc/kubernetes/pki/ca.crt authorization: mode: AlwaysAllow #Delete this mode: Webhook #Replace by this webhook: cacheAuthorizedTTL: 0s cacheUnauthorizedTTL: 0s cgroupDriver: systemd clusterDNS:

-10.96.0.10 clusterDomain: cluster.local cpuManagerReconcilePeriod: 0s evictionPressureTransitionPeriod: 0s fileCheckFrequency: 0s healthzBindAddress: 127.0.0.1 healthzPort: 10248 httpCheckFrequency: 0s imageMinimumGCAge: 0s kind: KubeletConfiguration logging: {} nodeStatusReportFrequency: 0s nodeStatusUpdateFrequency: 0s resolvConf: /run/systemd/resolve/resolv.conf rotateCertificates: true runtimeRequestTimeout: 0s staticPodPath: /etc/kubernetes/manifests streamingConnectionIdleTimeout: 0s syncFrequency: 0s volumeStatsAggPeriod: 0s worker1 $ systemctl restart kubelet. # To reload kubelet configssh to master1master1 $ vim /etc/kubernetes/manifests/kube-apiserver.yaml

master1 $ vim /etc/kubernetes/manifests/etcd.yaml

Correct Answer: A

Text

Text

Correct Answer: A

Correct Answer: A
