3605 Online Practice Questions and Answers

What does Ping snoop identify?

A. The path that IP traffic takes over an MLT or SMLT

B. The rate of IP traffic flow

C. Which port filter is best to use on MLT networks

D. Rate limiting for ICMP traffic

When configuring LINK aggregation, a technician created a Distributed Multi-Link Trunk (DMLT) group on the edge connecting switch cluster core. What gets distributed?

A. Access ports

B. VLANS

C. Uplinks

D. PVIDs

Which statement describes a step in provisioning SPBM in an enterprise network?

A. Configure IP addresses on the core links.

B. Enable SPBM and IS-IS globally on all nodes and on the core facing links.

C. Configure the MAC table.

D. Configure L2 and L3 VSNs on the core SPBM nodes.

An Information Technology organization needs to determine whether they should upgrade their existing Routing Switch (ERS) 8600 switches to release 5.0. Each chassis currently has both 8648GTR 8648TX modules. One of the features that the company requires is the ability to perform port mirroring on multiple ports per module at a time.

What should be done to meet their port mirroring requirement when upgrading to software release 5.0?

A. Replace the existing modules with 8648GTRS modules,

B. Upgrade to ERS 8600 Release 5.0 without any hardware upgrade.

C. Replace the existing 8648TX modules with ERS 8648TXE for egress mirroring.

D. Recommend other means to capturing traffic.

An existing enterprise network is using Ethernet Routing Switch (ERS) 8600 switches in the campus core. It has determined that 10 Gigabit links are required to replace the existing 1 Gigabit links 1 to the closest. This will affect 18 connections on each of the ERS 8600 switches. Which statement describes how to accomplish this requirement in each ERS 8600 chassis?

A. Replace the two existing switch fabric modules with 8394SF systems.

B. Replace the two existing switch fabric modules with 8692SF and Supermezz.

C. Replace the two existing 8616SXE modules with 8612XLRS modules.

D. Replace the six 8683XLR modules with 8612XLRS.

Syslog in the Ethernet Routing Switch (ERS) 8600 allows the mapping of ERS 8600 errors to be Specified to the facility Local 0 Local 7. What is another piece of information that syslog provides?

A. severity level

B. message frequency

C. syslog table location

D. system status

A technician is configuring the core of a Converged Campus network, and is adding a backup-master configuration to an existing Virtual Router Redundancy Protocol (VRRP) configuration for a VLAN that extends to the edge switches. Which benefit is expected from the addition of backup-master?

A. reduced traffic on the Inter Switch Trunks (1ST)

B. reduced traffic on the uplink ports

C. redundant default gateways for host devices

D. reduces VRRP hello packets

A technician wants to control the routes being added to the routing table from the BGP routing table. Which statement describes how to do this?

A. BGP filters are applied to all incoming route information.

B. BGP filters are applied only to external route information.

C. Metrics determine which routes are inserted into the routing table,

D. BGP adds all new priority routes to the routing table.

A technician is configuring Multi Link trunking (SMLT) for an Ethernet routing switch (ERS) 8600 switch cluster. To ensure the fastest possible recovery time, which feature should be avoided?

A. VLACP

B. MLT

C. 802.3 ad

D. SLPP

Where is the rate-limit feature of the Converged Campus architecture limited?

A. uplink ports on the core switches

B. access ports on the edge switches

C. inter Switch Trunk ports on the core switches

D. uplink ports on the edge switches

Routed Split Multilinking Trunking (RSMLT) is a way to ensure that traffic can be routed off the VLAN by adding router redundancy. RSMLT is configured on which Ethernet Routing Switch (ERS) configuration component?

A. an OSPF router

B. a core switch port

C. a VLAN

D. an SMLT

Which SMLT resiliency feature uses the Soft Down option?

A. extended Control Packet limit (ext-CP limit)

B. discards untagged frames

C. Simple Loop Prevention Protocol (SLPP)

D. virtual Link Aggregation Control Protocol (VLACP)

Which statement describes how to configure Simple Loop Prevention protocol (SLPP) Rx?

A. SLPP is configured on the edge switch ports that connect to the core switch cluster.

B. SLPP is configured on the core switch cluster ports that connect to the edge switch.

C. SLPP is configured on the Inter Switch Trunk (1ST) ports of the core switch cluster.

D. SLPP is configured on the uplink ports of both the core switch cluster and the edge switch

A technician is preparing to update an Ethernet Routing Switch (ERS) 550D and needs to see the existing configuration. How is the information to be displayed?

A. Use the show running-config command.

B. Use the configuration parameter qualifier.

C. Use the show alt-modules command.

D. Use the verbose qualifier.

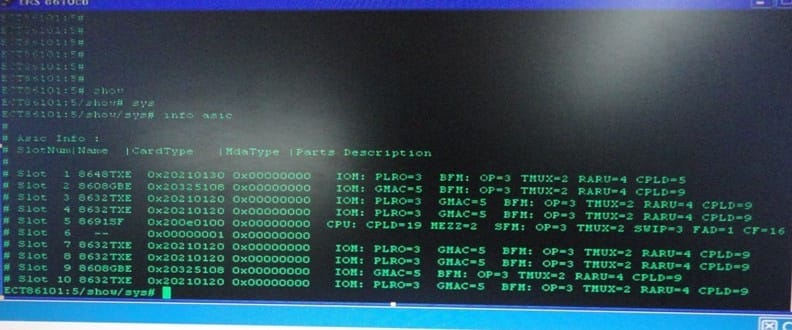

Based on the command line output shown in the exhibit, how many Gigabit Ethernet ports are available on this Ethernet Routing SwitchlT (ERS) 8600?

A. 16

B. 24

C. 26

D. 28
