Cisco 300-440 dumps - 100% Pass Guarantee!

Correct Answer: AE

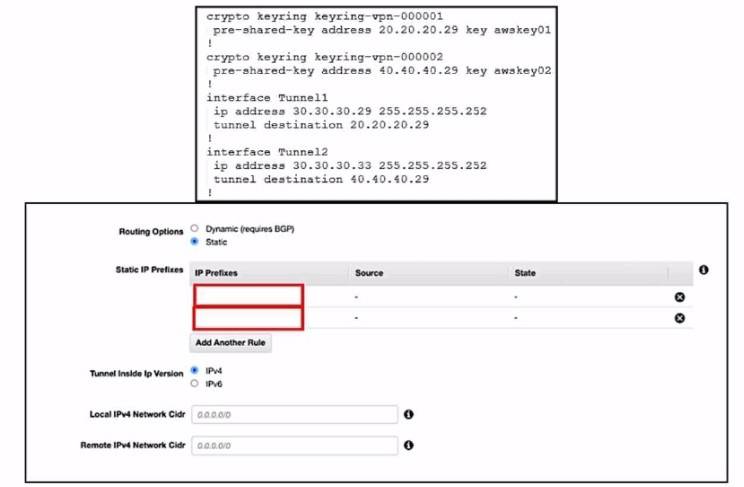

The correct answer is A and E because they are the IP prefixes that match the tunnel interfaces on the Cisco IOS XE router. The AWS routing options should include the local and remote IP prefixes that are used for the IPsec tunnel endpoints. The other options are either the public IP addresses of the routers or the LAN subnets that are not relevant for the IPsec tunnel configuration. References= Designing and Implementing Cloud Connectivity (ENCC) v1.0, Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services, Site-to-Site VPN with Amazon Web Services

Correct Answer: B

Security groups are a feature in AWS that allow you to control the inbound and outbound traffic to your instances. They act as a virtual firewall that can filter the traffic based on the source, destination, protocol, and port. You can assign one or more security groups to your instances, and each security group can have multiple rules. Security groups are stateful, meaning that they automatically allow the response traffic for any allowed inbound traffic, and vice versa. Security groups are essential for securing your nodes in the AWS EKS cluster, as they can prevent unauthorized access to your Mongo Atlas database or other resources.

References: AWS Security Groups Security Groups for Your VPC Security Groups for Your Amazon EC2 Instances Security Groups for Your Amazon EKS Cluster

Correct Answer: B

A highly secure multitier application in AWS that includes S3, RDS, and some additional private links requires specific routing and bucket policies to keep the traffic safe. The reasons are as follows:

Specific routing policies are needed to ensure that the traffic between the tiers is routed through the private links, which provide secure and low-latency connectivity between AWS services and on-premises resources12. The private links can

also prevent the exposure of the data and the application logic to the public internet12. Bucket policies are needed to control the access to the S3 buckets that store the application data34. Bucket policies can specify the conditions under

which the requests are allowed or denied, such as the source IP address, the encryption status, the request time, etc.34. Bucket policies can also enforce encryption in transit and at rest for the data in S334.

References:

1: AWS PrivateLink

2: AWS PrivateLink FAQs

3: Using Bucket Policies and User Policies

4: Bucket Policy Examples

Correct Answer: C

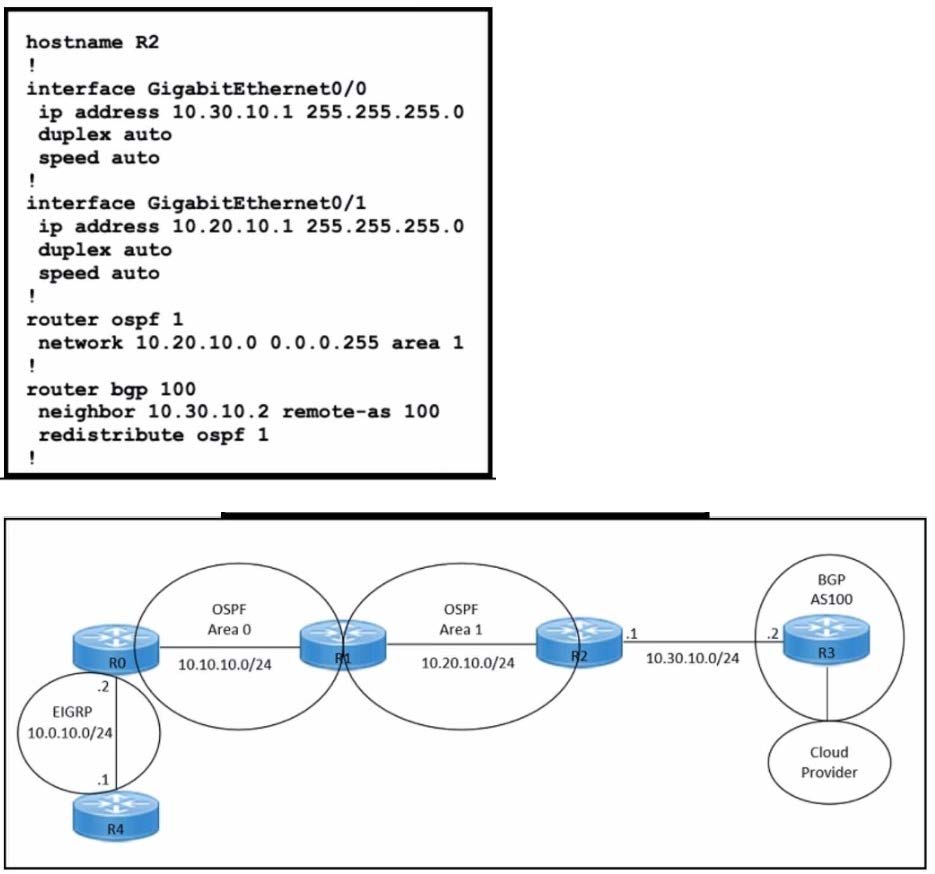

The command redistribute ospf 1 match external is missing on router R2. This command is needed to redistribute only the external OSPF routes into BGP. The external OSPF routes are those that are learned from another routing protocol or

redistributed into OSPF. In this case, the 10.0.10.0/24 network is an external OSPF route, as it is redistributed from EIGRP into OSPF on router R1. The other commands are either already present or not relevant for this scenario.

References:

Designing and Implementing Cloud Connectivity (ENCC) v1.0, Module 3:

Implementing Cloud Connectivity, Lesson 3.1: Implementing IPsec VPN from Cisco IOS XE to AWS, Topic 3.1.2: Configure BGP on the Cisco IOS XE Router Security for VPNs with IPsec Configuration Guide, Cisco IOS XE, Chapter:

Configuring IPsec VPNs with Dynamic Routing Protocols, Section: Configuring BGP over IPsec VPNs

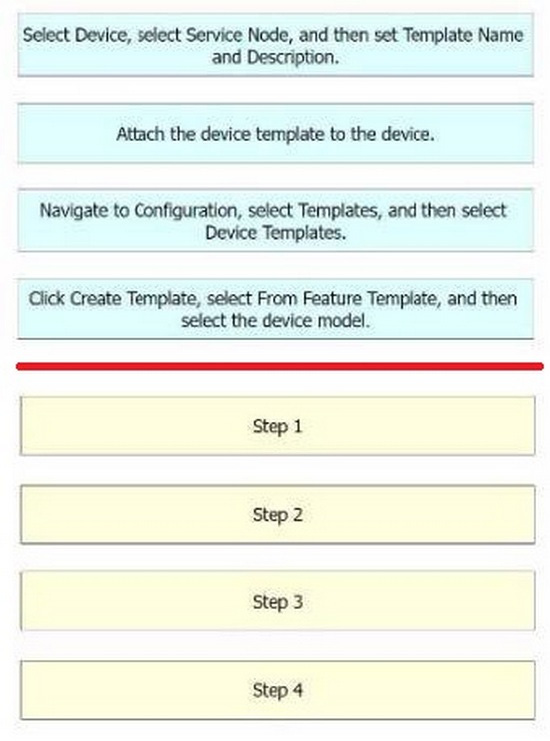

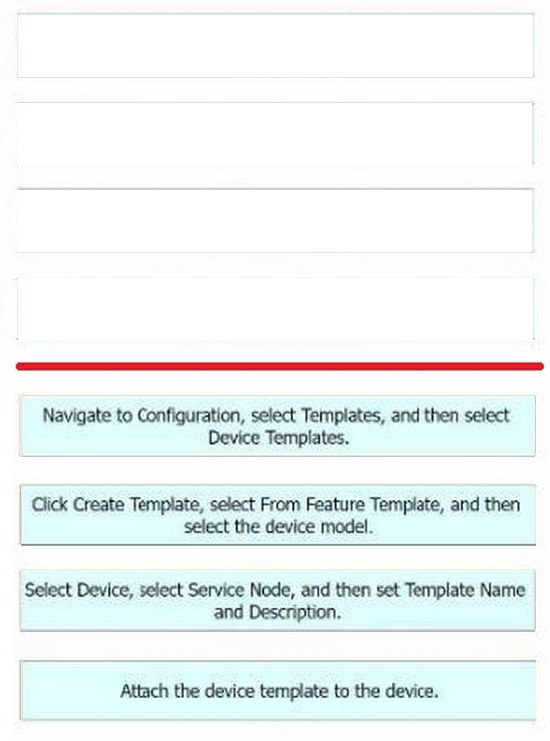

Correct Answer:

Step 1 = Navigate to Configuration, select Templates, and then select Device Templates.

Step 2 = Click Create Template, select From Feature Template, and then select the device model.

Step 3 = Select Device, select Service Node, and then set Template Name and Description.

Step 4 = Attach the device template to the device.

The process of configuring an AppGoE service node for WAN optimization for applications that are hosted in the cloud using Cisco vManage for C8000V or C8500L-8S4X devices involves several steps.

Navigate to Configuration, select Templates, and then select Device Templates:

This is the first step where you navigate to the Templates section in the Configuration menu of Cisco vManage.

Click Create Template, select From Feature Template, and then select the device model: In this step, you create a new template for the device model from the feature template.

Select Device, select Service Node, and then set Template Name and Description:

After setting up the template, you select the device and the service node, and then set the template name and description.

Attach the device template to the device: Finally, you attach the created device template to the device.

References:

AppQoE - Step-by-Step Configuration - Cisco Community Cisco Catalyst SD-WAN AppQoE Configuration Guide, Cisco IOS XE Catalyst SD- WAN Release 17.x
