300-440 Online Practice Questions and Answers

Correct Answer: B

A fully meshed topology with SD-WAN technology, using dynamic routing and BGP as the routing protocol, meets the requirements of the company because it provides the following benefits

It allows direct and secure connectivity between any two branch offices, without the need for a central hub or intermediary devices. This reduces the latency and improves the performance of the critical business applications. It leverages SDWAN technology to optimize the traffic flow and application quality of service (QoS) across the WAN. SD-WAN can dynamically select the best path for each application based on the network conditions and policies. SD- WAN can also provide redundancy, security, and visibility for the WAN. It uses dynamic routing and BGP as the routing protocol to exchange routing information and establish connectivity between the branch offices. BGP is a scalable and flexible protocol that can support multiple address families, such as IPv4 and IPv6, and multiple routing policies, such as local preference and route filtering. BGP can also enable seamless integration with the cloud service providers (CSPs) and internet service providers (ISPs).

References :

1: Designing and Implementing Cloud Connectivity (ENCC, Track 1 of 5) (Cisco U.login required)

2: Cisco SD-WAN Design Guide

Correct Answer: B

References: Learning Plan: Designing and Implementing Cloud Connectivity v1.0 (ENCC 300-440) Exam Prep Designing and Implementing Cloud Connectivity (ENCC) v1.0 Cisco Multiprotocol Label Switching Exploring Cisco Cloud OnRamp for Colocation ENCC: Configuring IPsec VPN from Cisco IOS XE to AWS : [Deploying Cisco IOS VTI-Based Point-to-Point IPsec VPNs]

Correct Answer: C

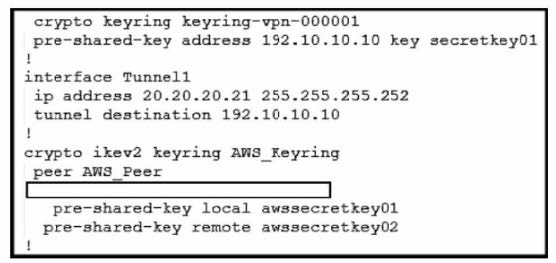

In the given scenario, an engineer is configuring a site-to-site IPsec VPN connection between an on-premises Cisco IOS XE router and AWS. The correct command to complete the tunnel configuration is "tunnel source 20.20.20.21". This command specifies the source IP address for the tunnel, which is essential for establishing a secure connection between two endpoints over the internet or another network.

References: Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services - Cisco Community [Security for VPNs with IPsec Configuration Guide, Cisco IOS XE Release 3S - Config

Correct Answer: C

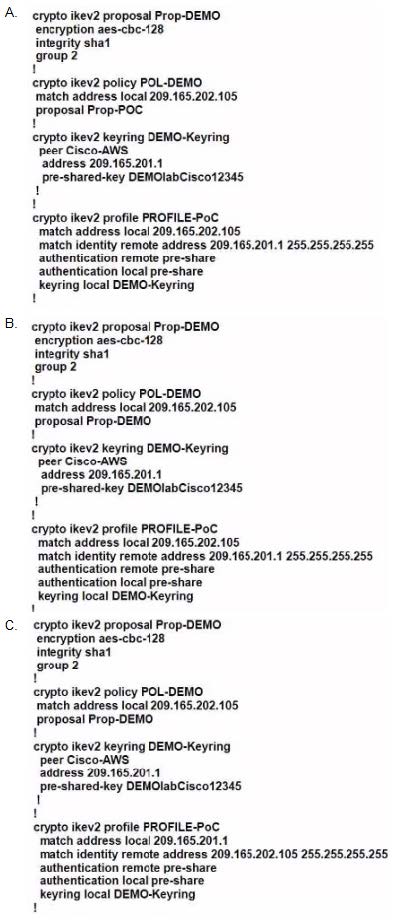

Option C is the correct answer because it configures the IKEv2 profile with the correct match identity, authentication, and keyring parameters. It also configures the IPsecprofile with the correct transform set and lifetime parameters. Option A is incorrect because it does not specify the match identity remote address in the IKEv2 profile, which is required to match the AWS virtual private gateway IP address. Option B is incorrect because it does not specify the authentication preshare in the IKEv2 profile, which is required to authenticate the IKEv2 peers using a pre-shared key. Option C also matches the configuration example provided by AWS and Cisco for setting up an IKEv2 IPsec site-to- site VPN between a Cisco IOS-XE router and an AWS virtual private gateway.

References:

1: AWS VPN Configuration Guide for Cisco IOS-XE

2: Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services

Correct Answer: B

To enable the OMP advertisement of BGP routes for a specific VRF instance on a Cisco IOS XE SD-WAN device, the engineer must first configure the global address-family ipv4 and then enable bgp advertisement under the vrf definition.

This will allow the device to advertise the BGP routes learned from the cloud provider to the OMP control plane, which will then distribute them to the other SD-WAN devices in the overlay network.

References:

Designing and Implementing Cloud Connectivity (ENCC) v1.0, Module 3:Implementing Cloud Connectivity, Lesson 3: Configuring IPsec VPN from Cisco IOS XE to AWS, Topic: Configuring BGP on the Cisco IOS XE Device, Page 3-24.

Correct Answer: D

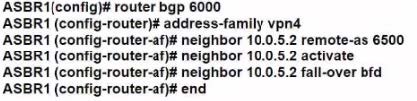

The bgp advertise-best-external command is used to enable the advertisement of the best external path to internal BGP peers. This command is useful when there are multiple exit points from the local AS to other ASes, and the local AS wants to use the closest exit point for each destination. By default, BGP only advertises the best path to its peers, and the best path is usually the one with the lowest IGP metric to the next hop. However, this may not be the optimal path for traffic leaving the local AS, as it may result in suboptimal hot-potato routing or MED oscillations. The bgp advertise-best-external command allows BGP to advertise the best external path, which is the path with the lowest MED among the paths from different neighboring ASes, in addition to the best path. This way, the internal BGP peers can choose the best exit point based on the MED value, rather than the IGP metric. In this scenario, ASBR1 is configured to receive additional paths from ASBR2, which is a route reflector. ASBR2 receivestwo paths for the same prefix from AS6500, one from ASBR3 and one from ASBR4. ASBR2 selects the best path based on the IGP metric to the next hop, and advertises it to ASBR1. However, this path may not be the best external path, as it may have a higher MED value than the other path. If the connection between ASBR1 and ASBR2 goes down, ASBR1 will not have any backup path to reach AS6500, as it does not know the other path from ASBR4. To prevent this situation, ASBR1 should be configured with the bgp advertise-best-external command, so that it can receive the best external path from ASBR2, along with the best path. This way, ASBR1 will have a backup path to reach AS6500, in case the primary path fails.

Correct Answer: D

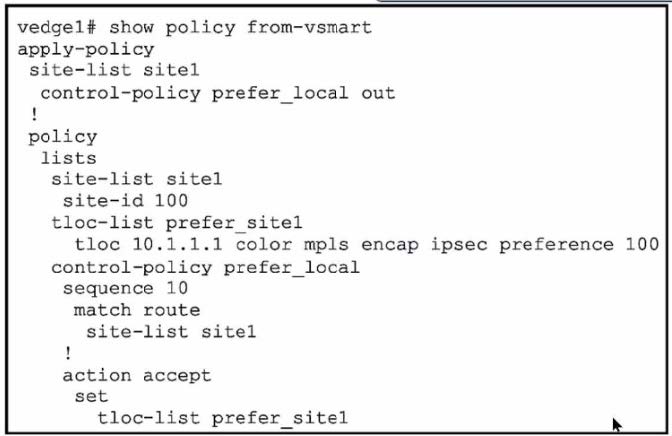

A centralized data policy is a policy that is applied to all devices in the overlay network, regardless of the site list. A localized data policy is a policy that is applied only to the devices that are listed in the site list. In this case, the network

engineer wants to apply the policy to all devices in the overlay network, not just the specific devices in the site list. Therefore, a centralized data policy must be configured on the on-premises Cisco WAN edge router.

References:

Designing and Implementing Cloud Connectivity (ENCC) v1.0, Module 3:

Implementing Cloud Connectivity, Lesson 3: Implementing Cisco SD-WAN Cloud OnRamp for Colocation, Topic: Centralized Data Policy [Cisco SD-WAN Cloud OnRamp for Colocation Deployment Guide], Chapter:

Configuring Centralized Data Policy

Correct Answer: A

Cisco SD-WAN IPsec tunnels are different from native IPsec VPN tunnels in several ways. One of the unique features of Cisco SD-WAN IPsec tunnels is that they support real-time dynamic path selection, which means that they can

automatically choose the best path for each application based on the network conditions and policies. This feature improves the performance, reliability, and efficiency of the network traffic. Native IPsec VPN tunnels, on the other hand, do not

have this capability and rely on static routing or manual configuration to select the path for each tunnel. This can result in suboptimal performance, increased latency, and higher costs.

References:

Traditional IPsec Versus Cisco SD-WAN IPsec, SD-WAN vs IPsec VPN's - What's the difference?, SD-WAN vs. VPN: How Do They Compare?, Traditional IPSEC Versus SD-WAN IPSEC

Correct Answer: A

The connectivity model that meets the requirements of high availability, redundancy, and low latency for the company's business applications is ExpressRoute with private peering using SDCI.

ExpressRoute is a service that provides a dedicated, private, and high-bandwidth connection between the customer's on-premises network and Microsoft Azure cloud network.

Private peering is a type of ExpressRoute circuit that allows the customer to access Azure services that are hosted in a virtual network, such as virtual machines, storage, and databases.

SDCI (Secure Data Center Interconnect) is a Cisco solution that enables secure and scalable connectivity between multiple data centers and cloud providers, using technologies such as MPLS, IPsec, and SD-WAN3.

By using ExpressRoute with private peering and SDCI, the company can achieve the following benefits:

References:

What is Azure ExpressRoute?

Azure ExpressRoute peering

Cisco Secure Data Center Interconnect

ExpressRoute circuit and routing domain

Correct Answer: D

A fully meshed topology with SD-WAN technology using dynamic routing and prioritized traffic for QoS meets the network architecture requirements of the company. A fully meshed topology provides high availability by eliminating single

points of failure and allowing multiple paths between branch offices. SD-WAN technology enables multihoming by supporting multiple transport options, such as MPLS, internet, LTE, etc. SD-WAN also provides QoS by applying policies to

prioritize traffic based on application, user, or network conditions. Dynamic routing allows the SD-WAN solution to adapt to changing network conditions and optimize the path selection for each traffic type. A fully meshed topology with SDWAN technology can also support specific routing needs, such as segment routing, policy-based routing, or application-aware routing.

References:

Designing and Implementing Cloud Connectivity (ENCC) v1.0 [Cisco SD-WAN Design Guide]

[Cisco SD-WAN Configuration Guide]

Correct Answer: BE

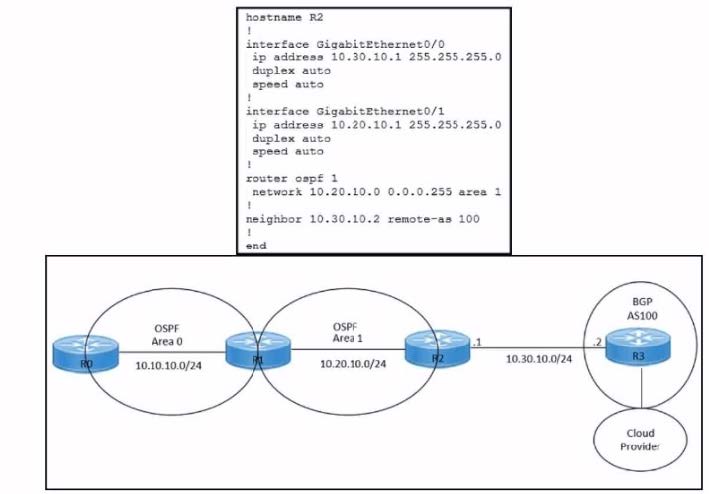

To redistribute OSPF internal routes into BGP, the engineer needs to configure two commands on router R2. The first command is router bgp 100, which enables BGP routing process and specifies the autonomous system number of 100.

The second command is redistribute ospf 1 match internal external, which redistributes the routes from OSPF process into BGP, and matches both internal and external OSPF routes. This way, the engineer can avoid introducing extra routes

that are not part of OSPF process 1, such as the default route or the connected routes.

References:

Designing and Implementing Cloud Connectivity (ENCC) v1.0, [ENCC: Configuring IPsec VPN from Cisco IOS XE to AWS], [Deploying Cisco IOS VTI-Based Point-to-Point IPsec VPNs]

Correct Answer: B

Correct Answer:

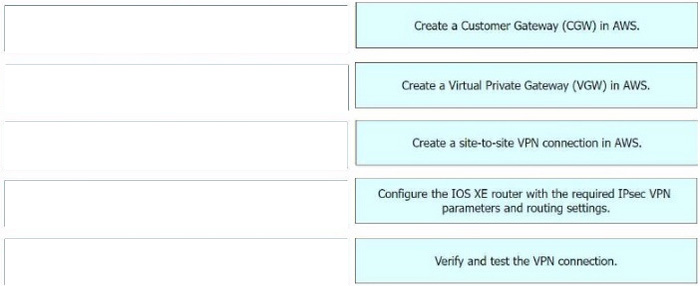

Step 1 = Create a Customer Gateway (CGW) in AWS.

Step 2 = Create a Virtual Private Gateway (VGW) in AWS.

Step 3 = Create a site-to-site VPN connection in AWS.

Step 4 = Configure the IOS XE router with the required IPsec VPN parameters and routing settings.

Step 5 = Verify and test the VPN connection.

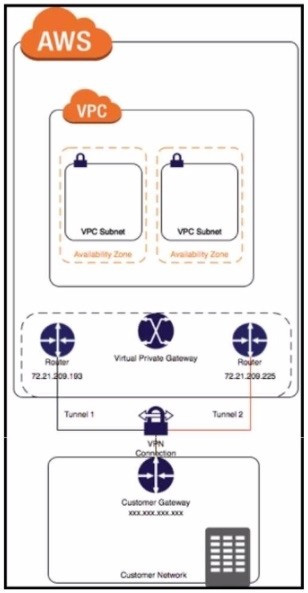

The process of configuring a site-to-site VPN connection between an on-premises Cisco IOS XE router and Amazon Web Services (AWS) involves several steps

Create a Customer Gateway (CGW) in AWS: This is the first step where you define the public IP address of your on-premises Cisco IOS XE router in AWS. Create a Virtual Private Gateway (VGW) in AWS: This involves creating a VGW and

attaching it to the VPC in AWS.

Create a site-to-site VPN connection in AWS: After setting up the CGW and VGW, you then create a site-to-site VPN connection in AWS. This involves specifying the CGW, VGW, and the static IP prefixes for your on-premises network.

Configure the IOS XE router with the required IPsec VPN parameters and routing settings: After the AWS side is set up, you configure the on-premises Cisco IOS XE router with the required IPsec VPN parameters and routing settings. Verify

and test the VPN connection: Finally, you verify and test the VPN connection to ensure that it is working correctly.

References:

Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services - Cisco Community

SD-WAN Configuration Example: Site-to-site (LAN to LAN) IPSec between vEdge and Cisco IOS - Cisco Community

Correct Answer:

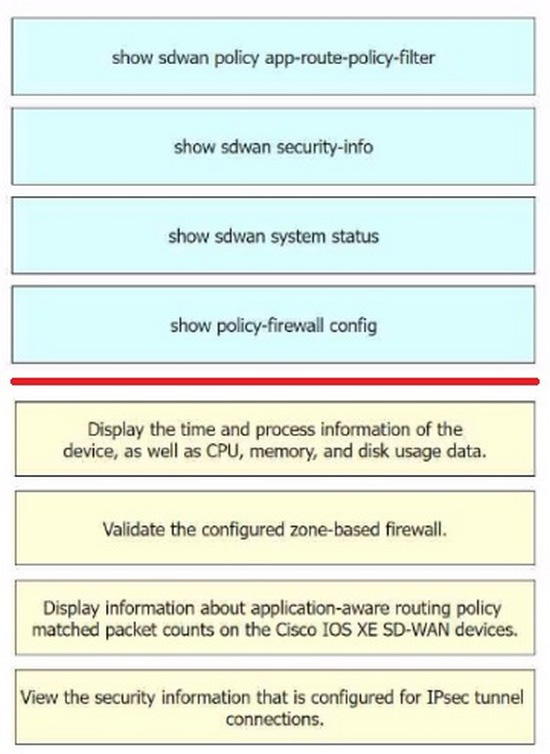

Display the time and process information of the device, as well as CPU, memory, and disk usage data. = show sdwan system status Validate the configured zone-based firewall. = show policy-firewall config1 Display information about application-aware routing policy matched packet counts on the Cisco IOS XE SD-WAN devices. = show sdwan policy app-route-policy- filter View the security information that is configured for IPsec tunnel connections. = show sdwan security-info The commands used to identify issues on a Cisco IOS XE SD-WAN device are as follows show sdwan system status: This command is used to display the time and process information of the device, as well as CPU, memory, and disk usage data. show policy-firewall config: This command is used to validate the configured zone-based firewall. show sdwan policy app-route-policy-filter: This command is used to display information about application-aware routing policy matched packet counts on the Cisco IOS XE SD-WAN devices. show sdwan security-info: This command is used to view the security information that is configured for IPsec tunnel connections

References: Cisco IOS XE Catalyst SD-WAN Qualified Command Reference Cisco Catalyst SD-WAN Command Reference Cisco Catalyst SD-WAN Systems and Interfaces Configuration Guide, Cisco IOS XE SD-WAN Tunnel Interface Commands - Cisco

Correct Answer:

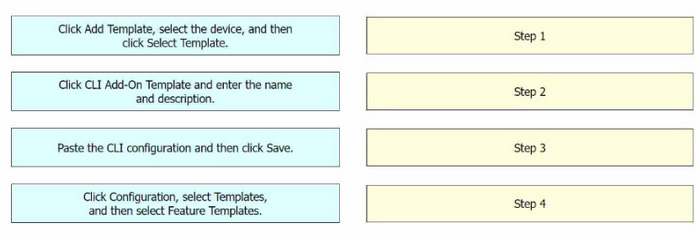

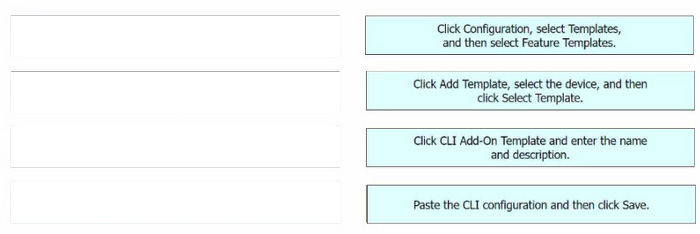

Step 1 = Click Configuration, select Templates, and then select Feature Templates.

Step 2 = Click Add Template, select the device, and then click Select Template.

Step 3 = Click CLI Add-On Template and enter the name and description.

Step 4 = Paste the CLI configuration and then click Save.

The process of configuring a CLI add-on feature template in Cisco vManage for enhanced policy-based routing (ePBR) for IPv4 involves several steps1234. Click Configuration, select Templates, and then select Feature Templates: This is the

first step where you navigate to the Templates section in the Configuration menu of Cisco vManage.

Click Add Template, select the device, and then click Select Template: In this step, you add a new template for the device.

Click CLI Add-On Template and enter the name and description: After setting up the template, you select the CLI Add-On Template option, and then enter the name and description for the template.

Paste the CLI configuration and then click Save: Finally, you paste the CLI configuration into the template and save the changes.

References:

CLI Add-On Feature Templates - Cisco

Cisco Catalyst SD-WAN Systems and Interfaces Configuration Guide, Cisco IOS XE Catalyst SD-WAN Release 17.x - CLI Add-On Feature Templates Cisco SD-WAN vSmart CLI Template - NetworkLessons.com CLI Templates for Cisco XE

SD-WAN Routers
