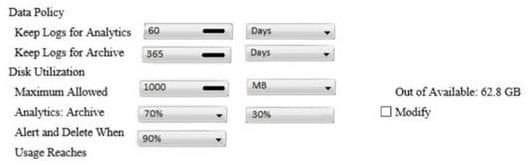

View the exhibit:
What does the 1000MB maximum for disk utilization refer to?
A. The disk quota for the FortiAnalyzer model
B. The disk quota for all devices in the ADOM
C. The disk quota for each device in the ADOM
D. The disk quota for the ADOM type
What is the purpose of employing RAID with FortiAnalyzer?
A. To introduce redundancy to your log data
B. To provide data separation between ADOMs
C. To separate analytical and archive data
D. To back up your logs
How are logs forwarded when FortiAnalyzer is using aggregation mode?
A. Logs are forwarded as they are received and content files are uploaded at a scheduled time.
B. Logs and content files are stored and uploaded at a scheduled time.
C. Logs are forwarded as they are received.
D. Logs and content files are forwarded as they are received.
How do you restrict an administrator's access to a subset of your organization's ADOMs?
A. Set the ADOM mode to Advanced
B. Assign the ADOMs to the administrator's account
C. Configure trusted hosts
D. Assign the default Super_User administrator profile
In order for FortiAnalyzer to collect logs from a FortiGate device, what configuration is required? (Choose two.)
A. Remote logging must be enabled on FortiGate
B. Log encryption must be enabled
C. ADOMs must be enabled
D. FortiGate must be registered with FortiAnalyzer
What can the CLI command # diagnose test application oftpd 3 help you to determine?
A. What devices and IP addresses are connecting to FortiAnalyzer
B. What logs, if any, are reaching FortiAnalyzer
C. What ADOMs are enabled and configured
D. What devices are registered and unregistered
What FortiView tool can you use to automatically build a dataset and chart based on a filtered search result?
A. Chart Builder
B. Export to Report Chart
C. Dataset Library
D. Custom View
In FortiAnalyzer's FormView, source and destination IP addresses from FortiGate devices are not resolving to a hostname.
How can you resolve the source and destination IPs, without introducing any additional performance impact to FortiAnalyzer?
A. Configure local DNS servers on FortiAnalyzer
B. Resolve IPs on FortiGate
C. Configure # set resolve-ip enable in the system FortiView settings
D. Resolve IPs on a per-ADOM basis to reduce delay on FortiView while IPs resolve
What must you configure on FortiAnalyzer to upload a FortiAnalyzer report to a supported external server? (Choose two.)
A. SFTP, FTP, or SCP server
B. Mail server
C. Output profile
D. Report scheduling
What purposes does the auto-cache setting on reports serve? (Choose two.)
A. To reduce report generation time
B. To automatically update the hcache when new logs arrive
C. To reduce the log insert lag rate
D. To provide diagnostics on report generation time
How does FortiAnalyzer retrieve specific log data from the database?
A. SQL FROM statement
B. SQL GET statement
C. SQL SELECT statement
D. SQL EXTRACT statement
For proper log correlation between the logging devices and FortiAnalyzer, FortiAnalyzer and all registered devices should:
A. Use DNS
B. Use host name resolution
C. Use real-time forwarding
D. Use an NTP server
FortiAnalyzer uses the Optimized Fabric Transfer Protocol (OFTP) over SSL for what purpose?
A. To upload logs to an SFTP server
B. To prevent log modification during backup
C. To send an identical set of logs to a second logging server
D. To encrypt log communication between devices
What is the purpose of the following CLI command?
A. To add a log file checksum
B. To add the MD5's hash value and authentication code
C. To add a unique tag to each log to prove that it came from this FortiAnalyzer
D. To encrypt log communications

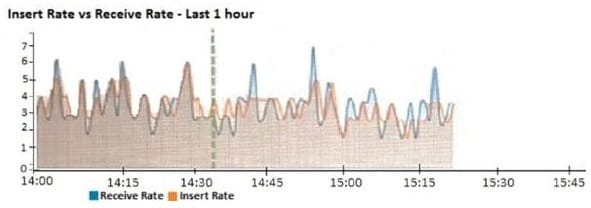

View the exhibit.
What does the data point at 14:35 tell you?
A. FortiAnalyzer is dropping logs.
B. FortiAnalyzer is indexing logs faster than logs are being received.
C. FortiAnalyzer has temporarily stopped receiving logs so older logs' can be indexed.
D. The sqlplugind daemon is ahead in indexing by one log.
