NS0-593 Online Practice Questions and Answers

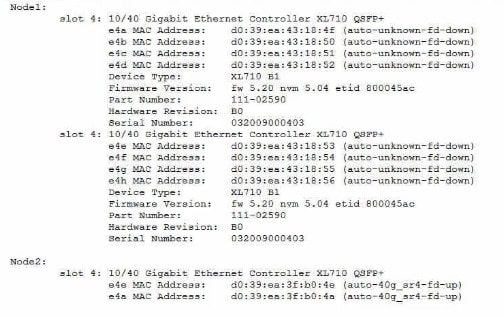

A customer wants to connect a NetApp AFF A700 system to a 40GbE switch. The controllers have a 10/40G Ethernet card in slot 4 for this purpose. The link comes up fine on node 2,but it will not come up on node 1. You look at the AutoSupport data for the nodes in question and see the output shown in the exhibit.

What is the cause of the customer's problem?

A. The cable is plugged in upside down.

B. The incorrect cable is used.

C. The ports are configured for 4x10Gbit instead of 40Gbit.

D. The port has an incorrect SFP inserted.

After a normal power down of both nodes forbuilding maintenance, Node01 of a 2-node cluster cannot be powered back up; however, all disk shelves are powered. Which action should be performed to bring the cluster online and allow Node02 to serve data?

A. Recreate the cluster with the system configuration recovery cluster recreate -from node command.

B. Reboot the node With the system node reboot -node Node02 -bypass-optimization true command.

C. Perform a takeover with the storage failover takeover -ofnode Node01 -option forcecommand.

D. Reinitialize the cluster with option 4a from the boot menu.

A user mentions that their home drive, that Is an export within a volume, is no longer allowing them to save files. The drive reports that it Is full, even though It shows that minimal data is written to it.

Which statement would explain this behavior?

A. The mount is stale and uses a cached version of the volume.

B. Other users wrote to this user's home drive.

C. Other files within the volume are also owned by the user, exceeding the user quota.

D. The client system needs to remount the export to show the proper space.

You are trying to deploy a Connector in the AWScloud from NetApp Cloud Manager. The deployment fails and shows the message 'Insufficient permissions to deploy Cloud Connector". You have verified the AWS access key and the AWS secret key.

In this scenario, what Is the reason that the deployment failed?

A. No AWS Marketplace subscription is associated with Cloud Manager.

B. The required Identity and Access Management (IAM) policies were not Installed.

C. The user lacks the permission to deploy within Cloud Manager.

D. The Connector can be deployed only inAWS GovCloud (US).

You have a customer complaining of long build times from their NetApp ONTAP-based datastores. They provided you packet traces from the controller and client. Analysis of these traces shows an average service response time of 1 ms. QoS outputconfirms the same. The client traces are reporting an average of 15 ms in the same time period.

In this situation, what would be your next step?

A. The cluster is responding slowly and requires further investigation using performance archives.

B. The client that reports high latency should be investigated.

C. The cluster interconnects should be investigated.

D. A sync core should be triggered.

Your customer Informs you about SnapMlrror problems after upgrading NetApp ONTAP software to a newer version. After investigating the event logs and the SnapMirror history, you see information about delayed updates of the SnapMirror relationships.

How would your customer prevent such problems in the future?

A. Quiesce the SnapMirror relationships before upgrading the ONTAP software.

B. Verify that the cabling of the hardware port that Is responsible for SnapMirror transfers Is correct.

C. Modify the schedules of the SnapMirror relationships after upgrading the ONTAP software.

D. Delete the SnapMirror relationships and create them new after upgrading the ONTAP software.

A customer reports that some of their client computers are unable to access a FlexGroup over CIFS. This problem involves only their older Windows XP clients and some printers and scanners.

In this scenario, which statement Is correct?

A. FlexGroup requires CIFS shares to be located in qtrees, which these clients do not support.

B. FlexGroup requires CIFS shares to use the Continuously Available Feature, which these clients do not support.

C. These systems use the SMQI protocol which Is an unsupported feature in FlexGroup

D. These systems use Offloaded Data Transfer, which is an unsupported feature in FlexGroup.

The motherboard of Node-01 is being replaced. To perform this task, a takeover was Initiated from Node-02. Node-02 panics showing the string below.

PANIC; Permanent errors on all HA mailbox disks (while marshalling header) in SKprocess fnmbx_instanceWorker on release 9.5P8 (C)

What has happened in this situation?

A. While in maintenance mode, the sldiag device show command was executed.

B. While in maintenance mode, the fcadmin device_map command was executed.

C. While in maintenance mode, the HA_config show command was executed.

D. While in maintenance mode, the mailbox destroy local command was executed.

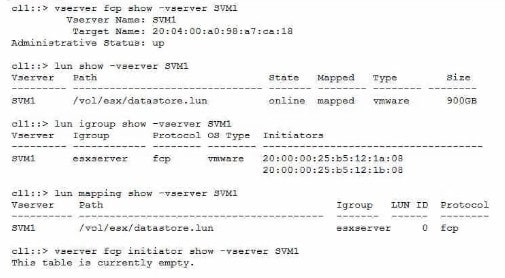

Your customer wants to access a LUN on a FAS 8300 system from a VMware ESXi server through the FC protocol. They already created a new SVM, volume. LUN, and igroup for this purpose. The customer reports that the server's FC HBA port Is online, but the LUN does not show up.

Referring to the exhibit, what is the reason for this problem?

A. The FC service has not been configured on the SVM.

B. The zoning on the FC switches Is Incorrect.

C. The LUN Is not mapped to the correct SCSI ID.

D. The esxserver igroup contains incorrect IQNs.

Your customer noticed in NetApp Active IQ that their NetApp Cloud Volumes ONTAP forAzure HA solution is no longer sending AutoSupport messages over HTTPS. A support ticket has been opened to find out why. No changes have been made to the Cloud Volumes ONTAP for Azure HA environment.

In this scenario, which two autosupport command parameters should be used to validate that AutoSupport Is working properly? {Choose two.)

A. -mail-hosts

B. -transport

C. -proxy-url

D. -to

You have recently discovered that NetApp ONTAP Cloud Manager is not sending AutoSupport messages to NetApp. In this scenario, what would solve this Issue?

A. Verify that your AWScredentials are correctly added to Cloud Manager.

B. Verify that your NetApp Support site credentials are correctly added to Cloud Manager.

C. Verify that your data LIFs allow traffic to mysupport .netapp.com on port 443.

D. Verify that the inbound and outbound rules allow AutoSupport on port 80.

You are deploying NetApp ONTAP Select. When trying to add VMware vCenter to the inventory, you receive the message shown below.

Credential authentication failed for x.x.x.x with: HostConnectionFailed

In this scenario, how would you correct this problem?

A. Change the vCenter password.

B. Change the IP address of the ONTAP Select Deploy VM.

C. Change the gateway address of the ONTAP Select Deploy VM.

D. Change the IP address of the vCenter server.

A customer reports that while Installing Windows updates on their external Vscan servers, clients couldnot access any files on their CIF-S SVM. The problem disappeared after the update process was completed. The customer wants to prevent this issue from happening during the next patch window.

In this scenario, what are two ways to accomplish this task? (Choose two.)

A. Enable the -scan-mandatory flag in the Vscan policy.

B. Update the Vscan servers one at a time.

C. Modify the CIFS shares to be continuously available (CA) shares.

D. Disable the -scan-mandatory flag in the Vscan policy.

You recently discovered the error message shown below in your ONTAP logs.

What should be your first action to correct this Issue?

A. Power cycle all the disk storage shelves that contain drives of the aggregate with the my_data_vol volume.

B. Determine the root cause behind the inconsistency before attempting any recovery procedure.

C. Use the storage takeover command on the storage controller that contains my_data_vol.

D. Use the wafliron command against my_data_vol to solve the inconsistency on the volume.

You have connection Issues from a Linux host to an AFF A400 FC LUN. You are asked by support to run the NetApp sanlun command to provide troubleshooting information.

Which NetApp software package must be installed on the host?

A. Virtual Storage Console

B. Inventory Collect Tool

C. Host Utilities package

D. SnapDrive for UNIX
