MCPA-LEVEL-1-MAINTENANCE Online Practice Questions and Answers

Correct Answer: C

Create API Notebooks and Include them in the relevant Anypoint exchange entries ***************************************** >> API Notebooks are the one on Anypoint Platform that enable us to provide code-centric API documentation : https://docs.mulesoft.com/exchange/to-use-api-notebook

Correct Answer: D

API Consumer ***************************************** >> API clients are piece of code or programs that use the client credentials of API consumer but does not directly interact with Anypoint Exchange to get the access >> API consumer is the one who should get registered and request access to API and then API client needs to use those client credentials to hit the APIs So, API consumer is the one who needs to request access on the API from Anypoint Exchange

Correct Answer: C

Create a bounded-context model for the system layer to closely match the backend data model, and add an anti-corruption layer to let the different bounded contexts cooperate across the system and process layers ***************************************** >> Canonical models are not an option here as the organization has already put in efforts and created bounded-context models for Experience and Process APIs. >> Anti-corruption layers for ALL APIs is unnecessary and invalid because it is mentioned that experience and process APIs share same bounded-context model. It is just the System layer APIs that need to choose their approach now. >> So, having an anti-corruption layer just between the process and system layers will work well. Also to speed up the approach, system APIs can mimic the backend system data model.

Correct Answer: A

***************************************** >> Application Network is a disposable architecture. >> Which means, it can be altered without disturbing entire architecture and its components. >> It bends as per requirements or design changes but does not break Reference: https://www.mulesoft.com/resources/api/what-is-an-application-network

Correct Answer: A

Use an SLA-based rate limiting policy and assign a client application to a matching SLA tier based on its type.

*****************************************

>> SLA tiers will come into play whenever any limits to be imposed on APIs based on client type

Reference: https://docs.mulesoft.com/api-manager/2.x/rate-limiting-and-throttling-sla- based-policies

Correct Answer: D

IP whitelist ***************************************** >> OAuth 2.0 access token and Client ID enforcement policies are VERY common to apply on Experience APIs as API consumers need to register and access the APIs using one of these mechanisms >> JSON threat protection is also VERY common policy to apply on Experience APIs to prevent bad or suspicious payloads hitting the API implementations. >> IP whitelisting policy is usually very common in Process and System APIs to only whitelist the IP range inside the local VPC. But also applied occassionally on some experience APIs where the End User/ API Consumers are FIXED. >> When we know the API consumers upfront who are going to access certain Experience APIs, then we can request for static IPs from such consumers and whitelist them to prevent anyone else hitting the API. However, the experience API given in the question/ scenario is intended to work with a consumer mobile phone or tablet application. Which means, there is no way we can know all possible IPs that are to be whitelisted as mobile phones and tablets can so many in number and any device in the city/state/country/globe. So, It is very LEAST LIKELY to apply IP Whitelisting on such Experience APIs whose consumers are typically Mobile Phones or Tablets.

Correct Answer: A

At the API proxy

*****************************************

>> API Policies can be enforced at two places in Mule platform. >> One - As an Embedded Policy enforcement in the same Mule Runtime where API implementation is running.

>> Two - On an API Proxy sitting in front of the Mule Runtime where API implementation is running.

>> As the deployment scenario in the question has API Proxy involved, the policies will be enforced at the API Proxy.

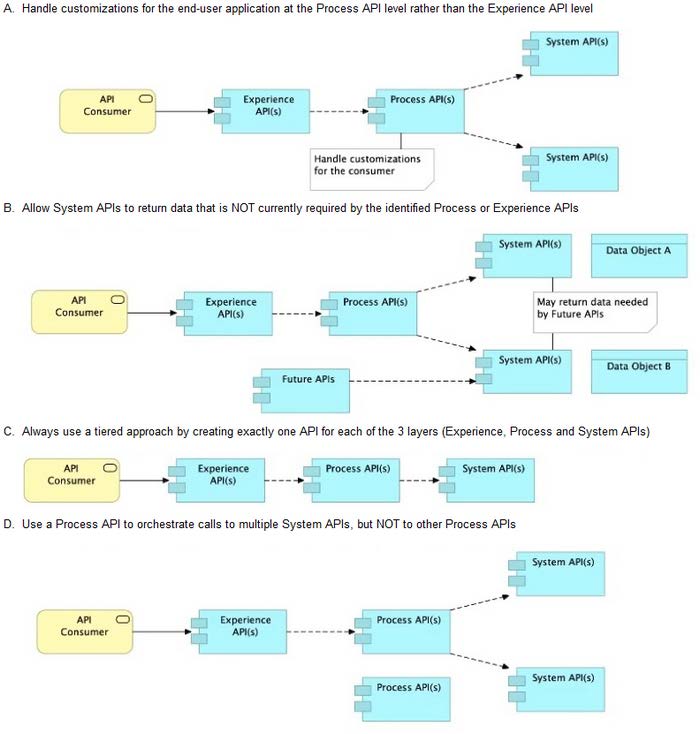

Correct Answer: B

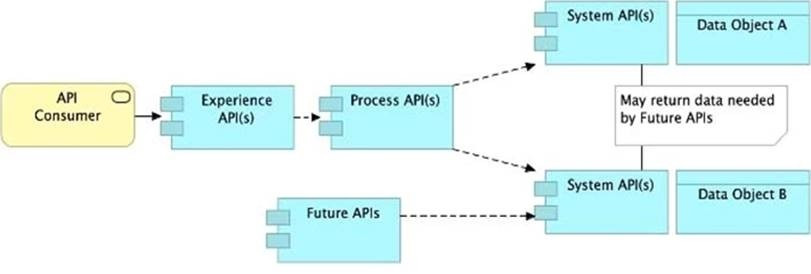

Allow System APIs to return data that is NOT currently required by the identified Process or Experience APIs.

*****************************************

>> All customizations for the end-user application should be handled in "Experience API" only. Not in Process API

>> We should use tiered approach but NOT always by creating exactly one API for each of the 3 layers. Experience APIs might be one but Process APIs and System APIs are often more than one. System APIs for sure will be more than one

all the time as they are the smallest modular APIs built in front of end systems. >> Process APIs can call System APIs as well as other Process APIs. There is no such anti-design pattern in API-Led connectivity saying Process APIs should

not call other Process APIs.

So, the right answer in the given set of options that makes sense as per API-Led connectivity principles is to allow System APIs to return data that is NOT currently required by the identified Process or Experience APIs. This way, some future

Process APIs can make use of that data from System APIs and we need NOT touch the System layer APIs again and again.

Correct Answer: B

The FQDNs are determined by the application name chosen, IRRESPECTIVE of the region

*****************************************

>> When deploying applications to Shared Worker Cloud, the FQDN are always determined by application name chosen.

>> It does NOT matter what region the app is being deployed to. >> Although it is fact and true that the generated FQDN will have the region included in it (Ex: exp-salesorder-api.au-s1.cloudhub.io), it does NOT mean that the same name

can be used when deploying to another CloudHub region.

>> Application name should be universally unique irrespective of Region and Organization and solely determines the FQDN for Shared Load Balancers.

Correct Answer: A

When the API implementation changes the structure of the request or response messages

*****************************************

>> RAML definition usually needs to be touched only when there are changes in the request/response schemas or in any traits on API.

>> It need not be modified for any internal changes in API implementation like performance tuning, backend system migrations etc..

Correct Answer: C

When the response time of API invocations exceeds a threshold ***************************************** >> Alerts can be setup for all the given options using the default Anypoint Platform functionality >> However, the question insists on an alert whose conditions depend on the end-to-end request processing of the API implementation. >> Alert w.r.t "Response Times" is the only one which requires end-to-end request processing of API implementation in order to determine if the threshold is exceeded or not. Reference: https://docs.mulesoft.com/api-manager/2.x/using-apialerts

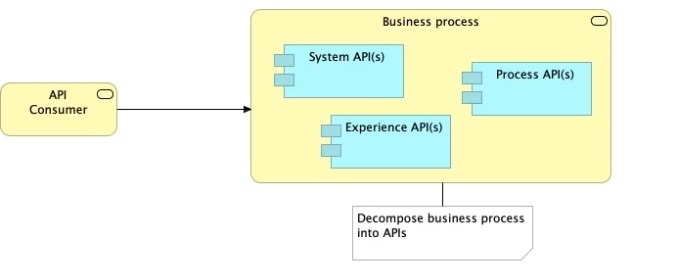

Correct Answer: C

Process Layer

*****************************************

>> Experience layer is dedicated for enrichment of end user experience. This layer is to meet the needs of different API clients/ consumers. >> System layer is dedicated to APIs which are modular in nature and implement/ expose various

individual functionalities of backend systems >> Process layer is the place where simple or complex business orchestration logic is written by invoking one or many System layer modular APIs So, Process Layer is the right answer.

Correct Answer: C

The API consumer creates an API client, which sends API invocations to an API such that they are processed by an API implementation *****************************************

Terminology:

>> API Client - It is a piece of code or program the is written to invoke an API >> API Consumer - An owner/entity who owns the API Client. API Consumers write API clients.

>> API - The provider of the API functionality. Typically an API Instance on API Manager where they are managed and operated.

>> API Implementation - The actual piece of code written by API provider where the functionality of the API is implemented. Typically, these are Mule Applications running on Runtime Manager.

Correct Answer: C

System Layer

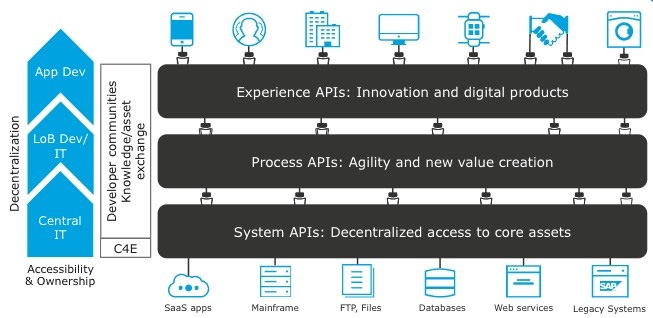

The APIs used in an API-led approach to connectivity fall into three categories:

System APIs -these usually access the core systems of record and provide a means of insulating the user from the complexity or any changes to the underlying systems. Once built, many users, can access data without any need to learn the

underlying systems and can reuse these APIs in multiple projects.

Process APIs -These APIs interact with and shape data within a single system or across systems (breaking down data silos) and are created here without a dependence on the source systems from which that data originates, as well as the

target channels through which that data is delivered.

Experience APIs -Experience APIs are the means by which data can be reconfigured so that it is most easily consumed by its intended audience, all from a common data source, rather than setting up separate point-to-point integrations for

each channel. An Experience API is usually created with API-first design principles where the API is designed for the specific user experience in mind.

Correct Answer: A

In parallel, invoke the system API deployed to the primary environment and the system API deployed to the DR environment, and ONLY use the first response.

*****************************************

>> The API requirement in the given scenario is to respond in least possible time. >> The option that is suggesting to first try the API in primary environment and then fallback to API in DR environment would result in successful response but

NOT in least possible time. So, this is NOT a right choice of implementation for given requirement. >> Another option that is suggesting to ONLY invoke API in primary environment and to add timeout and retries may also result in successful

response upon retries but NOT in least possible time. So, this is also NOT a right choice of implementation for given requirement.

>> One more option that is suggesting to invoke API in primary environment and API in DR environment in parallel using Scatter-Gather would result in wrong API response as it would return merged results and moreover, Scatter-Gather

does things in parallel which is true but still completes its scope only on finishing all routes inside it. So again, NOT a right choice of implementation for given requirement

The Correct choice is to invoke the API in primary environment and the API in DR environment parallelly, and using ONLY the first response received from one of them.
