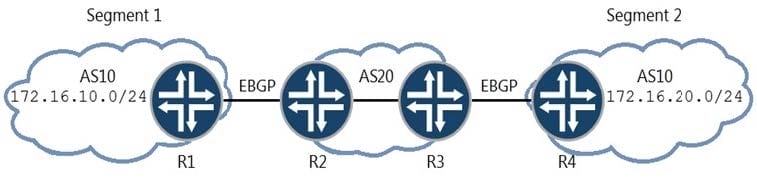

Your network connects two segments of your customer's network as shown in the exhibit. They need to exchange routes between Segment 1 and Segment 2 but both segments use the same AS number.

Which two steps will accomplish this task? (Choose two.)

A. Configure the routing-options autonomous-system loops 1 parameter on routers R1 and R4.

B. Configure the BGP group with the advertise-peer-as parameter on routers R2 and R3.

C. Configure the routing-options autonomous-system loops 1 parameter on routers R2 and R3.

D. Configure the BGP group with the as-override parameter on routers R1 and R4.

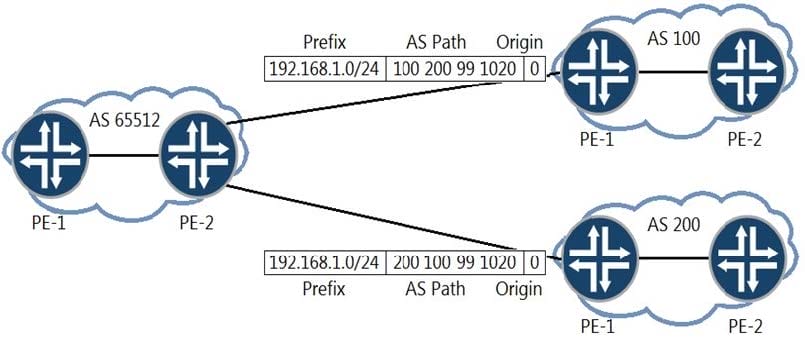

You are the administrator of AS 65512. You are learning the 192.168.1.0/24 prefix from both AS 100 and AS 200. You want traffic destined to the 192.168.1.0.0/24 prefix to exit your AS towards AS 200.

How would you accomplish this task?

A. Configure an import routing policy on PE-2 to set a higher MED on the path learned from AS 100.

B. Configure an import routing policy on PE-2 to modify the origin attribute on the path learned from AS

100.

C. Configure an import routing policy on PE-2 to set a higher local preference value on the path learned from AS 200.

D. Configure an import routing policy on PE-2 to append the AS path attribute on the path learned from AS

100.

You have an established Layer 3 VPN between two PE devices. You are asked to only send certain routes from PE-1 over the VPN to the remote site while maintaining all the routes on the PE-1 device. You created a policy that matches the specific routes and then tags these routes with the appropriate target community values.

In this scenario, which configuration changes must be made to satisfy the requirement?

A. Configure the export parameter and apply the policy to the my-ext-group BGP group configuration.

B. Configure the vrf-export parameter and apply the policy under the edit routing-instances vpn-a hierarchy.

C. Configure a RIB group and apply the policy as an import policy to routes distributed into the bgp.13vpn.0 routing table.

D. Configure the import parameter and apply the policy to the my-ext-group BGP group configuration.

You have a Layer 3 VPN established between PE-1 and PE-2 as well as between PE-1 and PE-3. You are using a route reflector (RR-1) to distribute VPN routes to your IBGP peers. You are asked to ensure that only relevant routes are sent from RR-1 to each of the PE routers.

Referring to the exhibit, which statement is correct?

A. You should use VRF export policies on RR-1 to control which routes are sent to each PE router.

B. You should use route target filtering only on RR-1 to control which routes are sent to each PE router.

C. You should use firewall filtering on RR-1 and all the PE devices to control which routes are sent to each PE router.

D. You should use route target filtering on RR-1 and all the PE devices to control which routes are sent to each PE router.

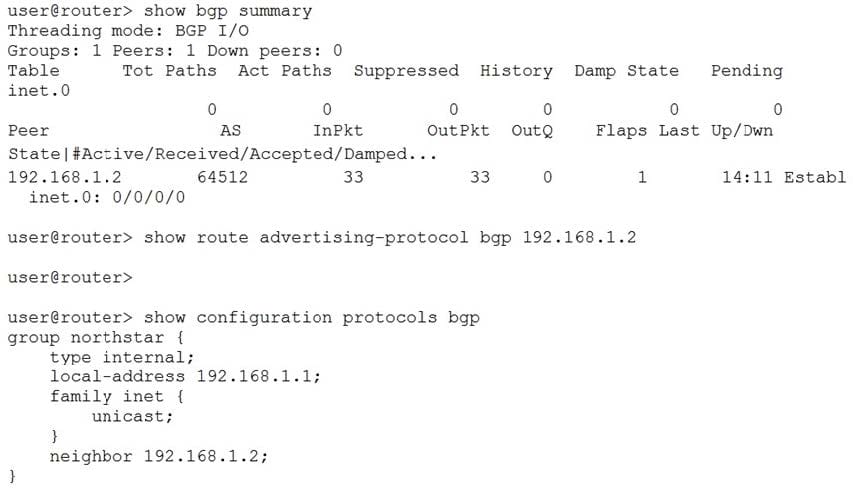

You are troubleshooting BGP routing issues between two MX Series routers. The BGP session is established but no BGP routes are being communicated.

What are two reasons for this problem? (Choose two.)

A. The peer type should be external.

B. No active BGP routes are in the inet.0 table.

C. The peers are in different ASs.

D. No export routing policy is applied.
