JN0-104 Online Practice Questions and Answers

What information is provided by the show route forwarding-table command?

A. the routing table stored on the RE

B. the protocol from where the route was learned

C. the outgoing interface(s) associated with the destination prefixes

D. the number of routes that are active, hidden, or in a hold-down state

You must archive log messages for an extended period of time for audit and troubleshooting purposes.

Which syslog setting should you configure on the Junos device in this scenario?

A. host

B. facility

C. console

D. severity

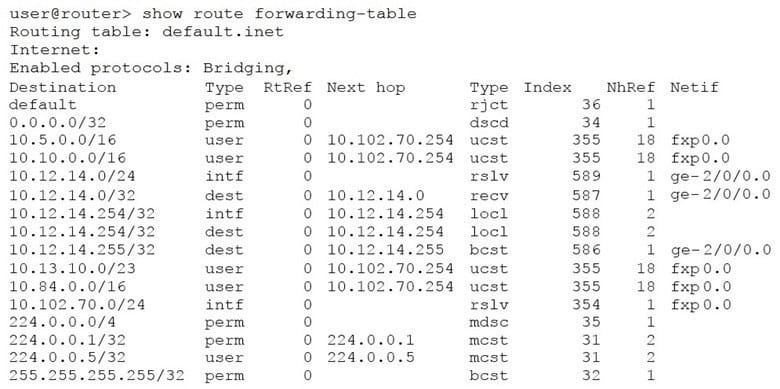

Click the Exhibit button.

Referring to the exhibit, what happens to a packet that has a destination address of 172.17.0.1?

A. The packet is forwarded to the next hop defined in the default route.

B. The packet is silently discarded.

C. The packet is rejected and an ICMP network unreachable message is sent to the source address.

D. The packet is forwarded to the next hop of the management network.

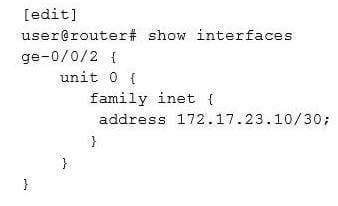

Click the Exhibit button.

Your Junos device is using the configuration shown in the exhibit. You notice that the 172.17.23.10/30 address Is Incorrect and should be 172.17.23.9/30.

What are two commands that would solve this problem? (choose two.)

A. [edit interfaces] use reroute r# delete ge-0/0/2.0 family inet address 172-17.23.10

B. [edit interfaces] user@router# rename ge-0/0/Z0 family inet address 172.17.23-10/30 to address 172.17.23.9/30

C. [edit interfaces] user@router= replace pattern 17Z1723.10 with

172.17.23.9

D. [edit interfaces] user@router# set ge-0/0/2.0 family inet address

Which two keystrokes are used to auto-complete commands? (Choose two.)

A. Spacebar

B. Esc

C. Tab

D. End

At which hierarchy would you configure a static MAC address for interface ge-0/0/0?

A. [edit interfaces ge-0/0/0 unit 0]

B. [edit interfaces ge-0/0/0]

C. [edit interfaces ge-0/0/0 unit 0 family inet]

D. [edit interfaces ge-0/0/0 unit 0 family inet address 172.25.11.2/24]

You are performing the initial configuration of an SRX Series device.

What must you set before the device will allow you to commit your configuration?

A. management interface

B. system time

C. hostname

D. root authentication

What are three acceptable modifiers to a terminating action on a firewall filter? (Choose three.)

A. policer

B. count

C. log

D. discard

E. syslog
