HPE6-A81 Online Practice Questions and Answers

What is the Open SSID (otherwise referred to as Dual SSID) Onboard deployment service workflow?

A. OnBoard Pre-Auth Application service, OnBoard Authorization Application service. OnBoard Provisioning RADIUS service

B. OnBoard Pre-Auth RADIUS service. OnBoard Authorization Application service. OnBoard Provisioning RADIUS service

C. OnBoard Authorization Application service, OnBoard Pre-Auth Application service, OnBoard Provisioning RADIUS service

D. OnBoard Authorization RADIUS service, OnBoard Pre-Auth Application service, OnBoard Provisioning RADIUS service

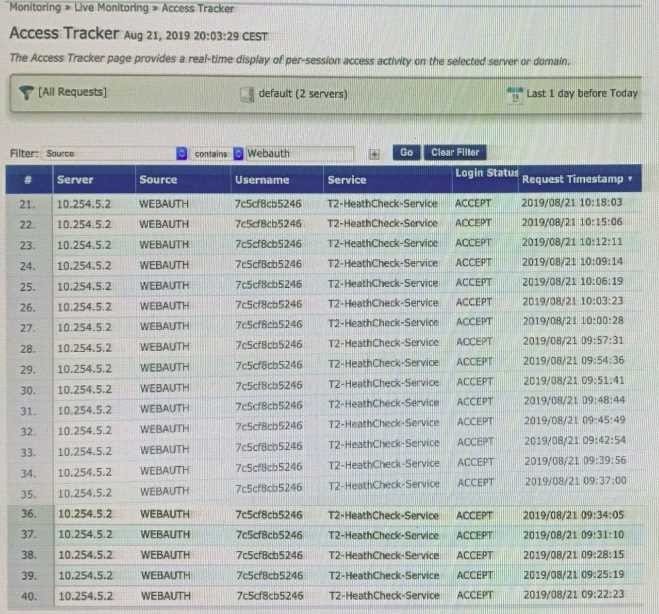

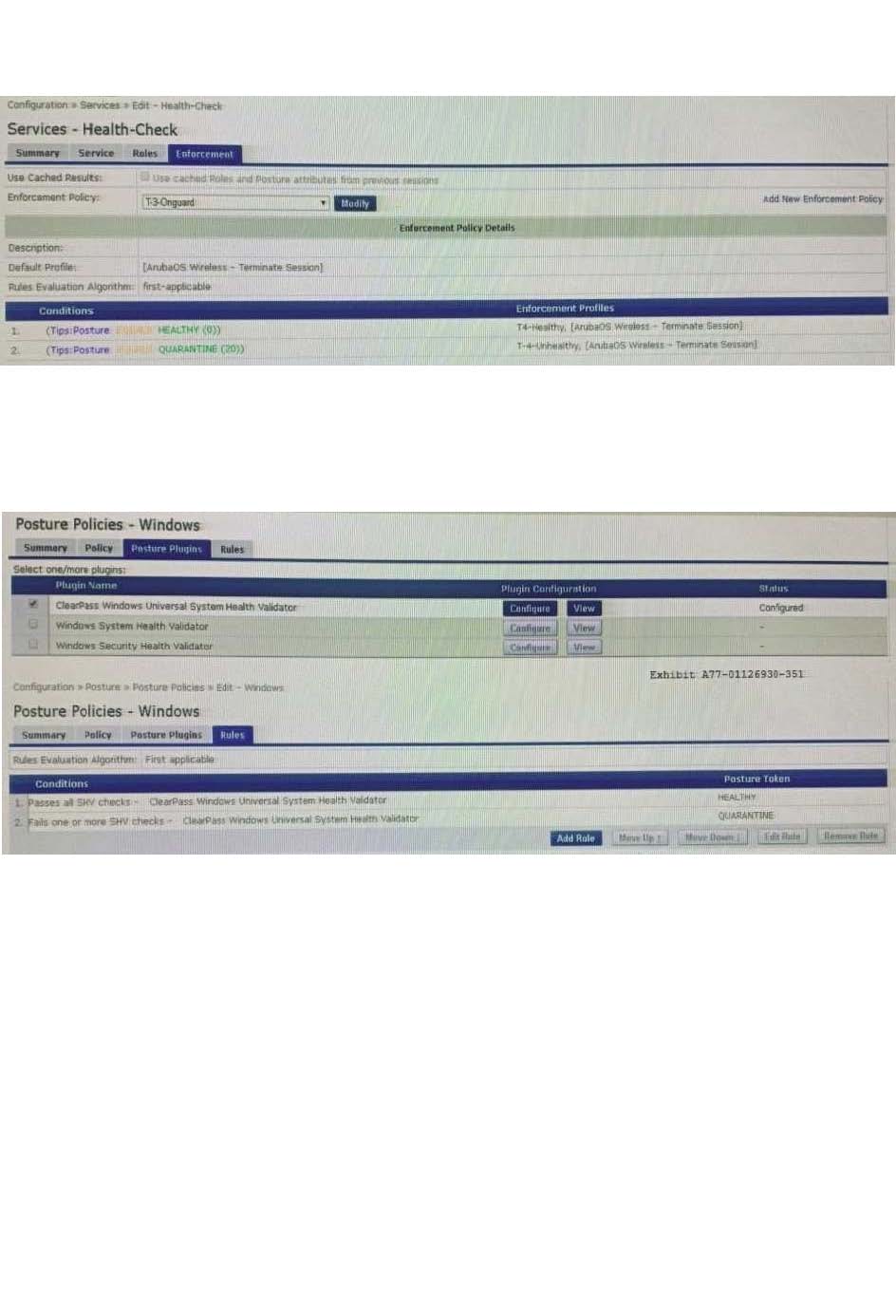

Refer to the exhibit:

A customer has just configured a Posture Policy and the T2-Healthcheck Service. Next they installed the

OnGuard Agent on Secure_Employee SSID. When they check Access Tracker they see many WEBAUTH

requests are being triggered.

What could be the reason?

A. OnGuard Web-Based Health Check interval has been wrongly configured to three minutes.

B. The OnGuard Agent trigger the events based on changing the Health Status

C. TCP port 6658 is not allowed between the client and the ClearPass server

D. The OnGuard Agent is connecting to the Data Port interface on ClearPass

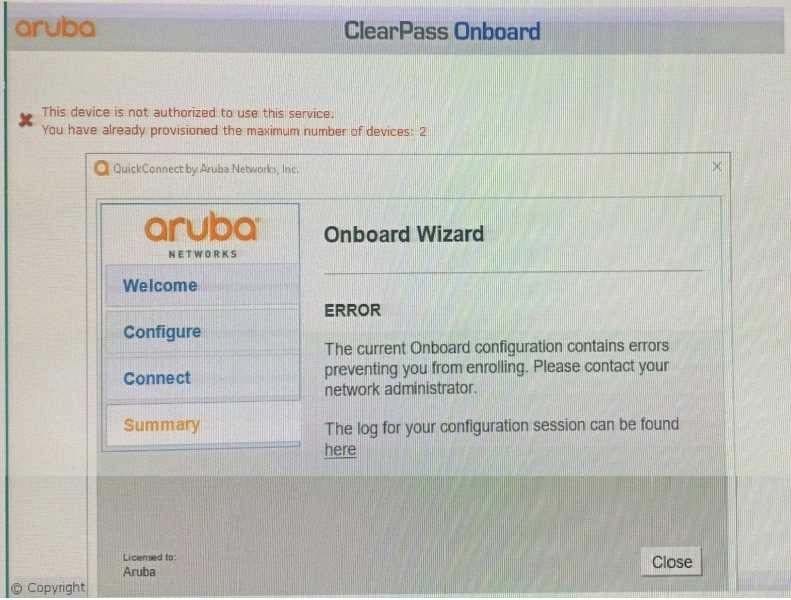

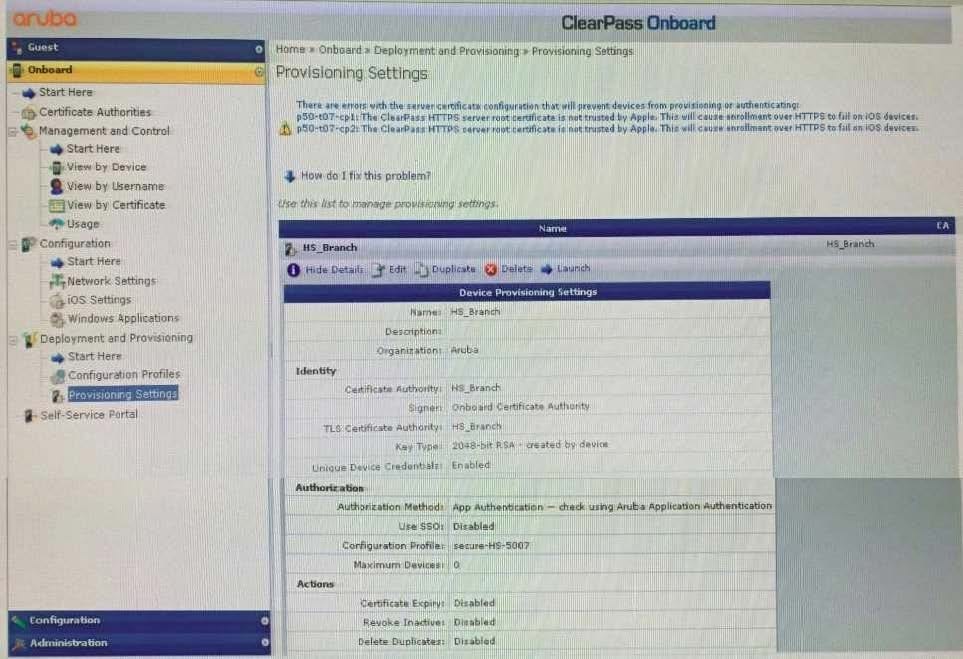

Refer to the exhibit: You have configured Onboard but me customer could not onboard one of his devices and has sent you the above screenshots. How could you resolve the issue?

A. Instruct the user to delete the profile on one of their other BYOD devices.

B. Instruct the user to run the Quick connect application in Sponsor Mode.

C. Increase the maximum number of devices allowed by the individual user account.

D. Increase the maximum number of devices that all users can provision to 3.

When is it recommended to use a certificate with multiple entries on the Subject Alternative Name?

A. The ClearPass servers are placed in different OnGuard zones to allow the client agent to send SHV updates.

B. Using the same certificate to Onboard clients and the Guest Captive Portal on a single ClearPass server.

C. The primary authentication server Is not available to authenticate the users.

D. The ClearPass server will be hosting captive portal pages for multiple FQDN entries

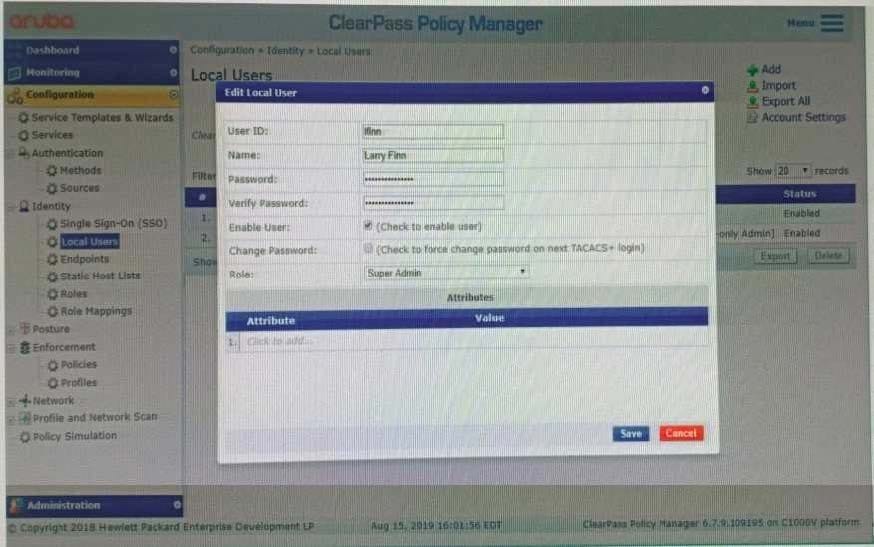

Refer to the exhibit:

The customer complains that the user shown cannot log into the ClearPass Server as an administrator using the [Policy Manager Admin Network Login Service]. What could be the reason for this?

A. The user might be used for a TACACS authentication

B. The account created does not fit this purpose.

C. The mapping on the role should be changed to [RADIUS Super Admin]

D. The local user authentication might be disabled

A customer is complaining that some of the devices, in their manufacturing network, are not getting profiled while other loT devices from the same subnet have been correctly profiled. The network switches have been configured for DHCP IP helpers and IF-MAP has been configured on the Aruba Controllers. What can the customer do to discover those devices as well? (Select two.)

A. Update the Fingerprints Dictionary to the latest in case new devices have been added.

B. Open a TAC case to help you troubleshoot the DHCP device profile functionality.

C. Add the ClearPass Server IP as an IP helper address on the default gateway as well.

D. Allow time for IF-MAP service on the controller to discover the new devices as well.

E. Manually create a new device fingerprint for the devices that are not being profiled.

You are deploying ClearPass Policy Manager with Guest functionality for a customer with multiple Aruba Networks Mobility Controllers The customer wants to avoid SSL errors during guest access but due to company security policy cannot use a wildcard certificate on ClearPass or the Controllers. What is the most efficient way to configure the customers guest solution? (Select two.)

A. Build multiple Web Login pages with vendor settings configured for each controller

B. Install the same public certificate on all Controllers with the common name "controller {company domain}"

C. Build one Web Login page with vendor settings for controller {company domain)

D. Install multiple public certificates with a different Common Name on each controller

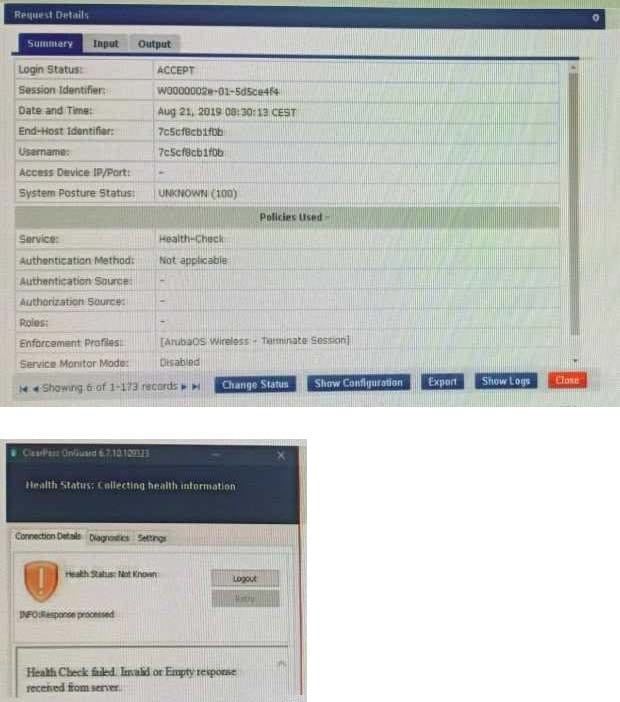

Refer to the exhibit:

What could be causing the error message received on the OnGuard client?

A. The Service Selection Rules for the service are not configured correctly

B. The Web-Based Health Check service needs to be configured to use the Posture Policy

C. There is a firewall policy not allowing the OnGuard Agent to connect to ClearPass

D. The client's OnGuard Agent has not been configured with the correct Policy Manager Zone

You have Integrated ClearPass Onboard with Active Directory Certificate Services (ADCS) web enrollment to sign the Anal device TLS certificates The Onboard provisioning process completes successfully but when the user finally clicks connect, the user falls to connect to the network with an unknown_ca certificate error. What steps will you follow to complete the requirement?

A. Make sure that the ClearPass servers are using the default self-signed certificates for both SSL and RADIUS server identity

B. Add the ADCS root certificate to both the CPPM Certificate trust list and to the Onboard Certificate Store trust list

C. Make sure both the ClearPass servers have different certificates used for both SSL and RADIUS server identity.

D. Export the self-signed certificate from the ClearPass servers and manually add them as trusted certificates in clients

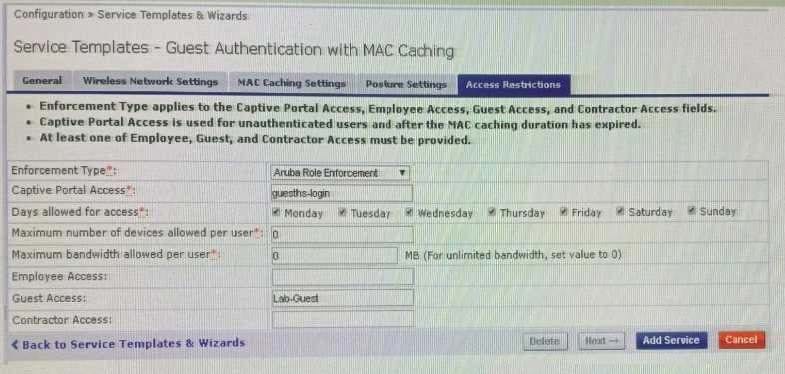

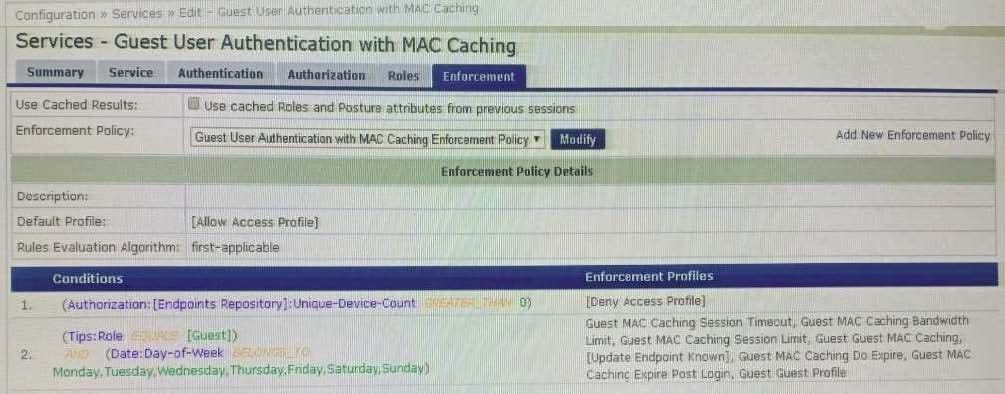

Refer to the exhibit: You are doing a ClearPass PoC at a customer site with a single Aruba Mobility Controller. The customer asked for a demonstration of a simple Web Login functionality. You used a service template to create the guest services. During testing, the user gets redirected back to the weblogin page with an Authentication failed message. The guest configurations on the Aruba Mobility Controller are configured correctly. Why would the guest fail to authenticate successfully?

A. The authentication source mapped in the service is incorrect, it should be mapped as (Guest Device Repository] [Local SQL DB].

B. The username and/or password used for authentication is incorrect Re-enter the correct password on the weblogin page.

C. The username used for authentication does not exist in the Guest User Database Create a new user and authenticate again.

D. The Unique-Device-Count does not allow any Client devices. Update the Enforcement policy condition: Unique-Device-Count.

You are integrating a Postgres SQL server with the ClearPass Policy Manager. What steps will you follow to complete the integration process? (Select three)

A. Click on the default filter name with pre-defined filter queries and check box to enable as role.

B. Specify a new filter with filter queries to fetch authentication and authorization attributes.

C. Attribute Name under filter configuration must match one of the columns being requested from the database table.

D. Create a new Endpoint context server and add the SQL server IP, credentilas and the database name.

E. Alias Name under filter configuration must match one of the columns being requested from the database table.

F. Create a new authentication source and add the SQL server IP, credentials and the database name.

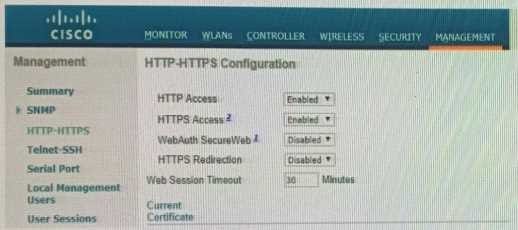

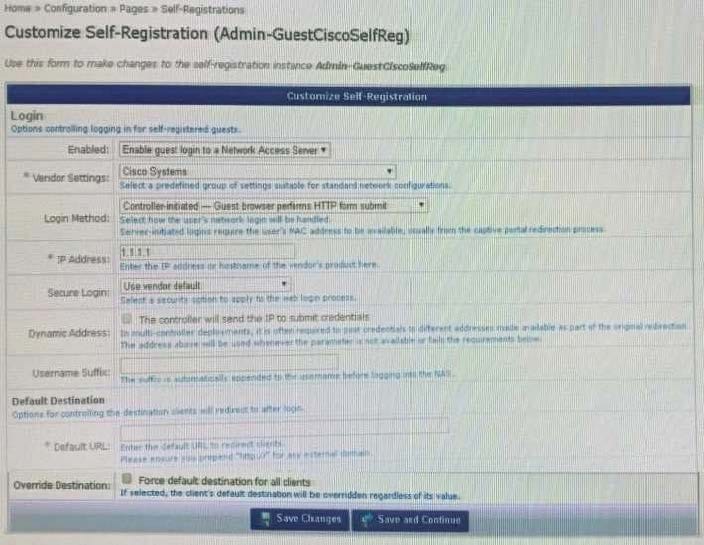

Refer to the exhibit: A customer has configured a Guest Self registration page for their Cisco Wireless network with the settings shown. What should be changed in order to successfully authenticate guests users?

A. Secure Login should use HTTP

B. Change the Vendor Settings to Airespace Networks

C. Change \he IP Address to the Cisco Controller DNS name

D. Login Method should be Controller-initiated - using HTTPs form submit

A Customer has these requirements:

*

2.000 loT endpoints that use MAC authentication

*

6,000 endpoints using a mix of username/password and certificate (Corporate/BYOD) based authentication

*

1,000 guest endpoints at peak usage that use guest self-registration

*

1500 BYOD devices estimated as 3 devices per User (500 users)

*

2,500 endpoints that have OnGuard installed and connect on a daily basis

What licenses should be installed to meet customer requirements?

A. 11,500 Access, 500 Onboard, 2,500 Onguard

B. 13.000 Access, 1.500 Onboard, 2,500 Onguard

C. 11,500 Access, 1,500 Onboard, 2.500 Onguard

D. 9,000 Access, 500 Onboard. 2.500 Onguard

A customer has configured Onboard with Single SSID provision for Aruba IAP Windows devices work as expected but cannot get the Apple iOS devices to work. The Apple iOS devices automatically get redirected to a blank page and do not get the Onboard portal page. What would you check to fix the issue?

A. Verify if the checkbox "Enable bypassing the Apple Captive Network Assistant" is checked.

B. Verify if the Onboard URL is updated correctly in the external captive portal profile.

C. Verify if Onboard Pre-Provisioning enforcement profile sends the correct Aruba user role.

D. Verify if the external captive portal profile is enabled to use HTTPS with port 443.

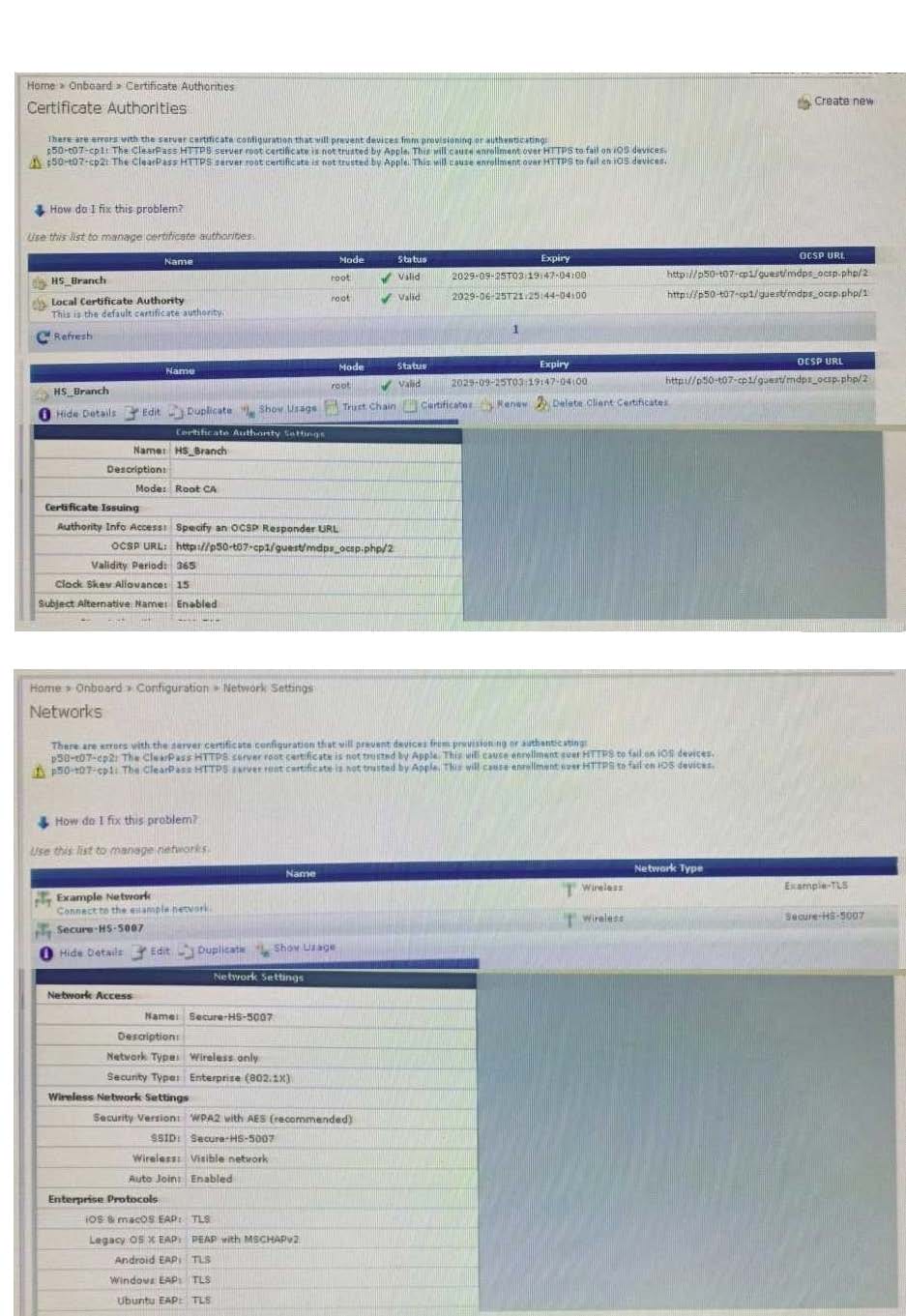

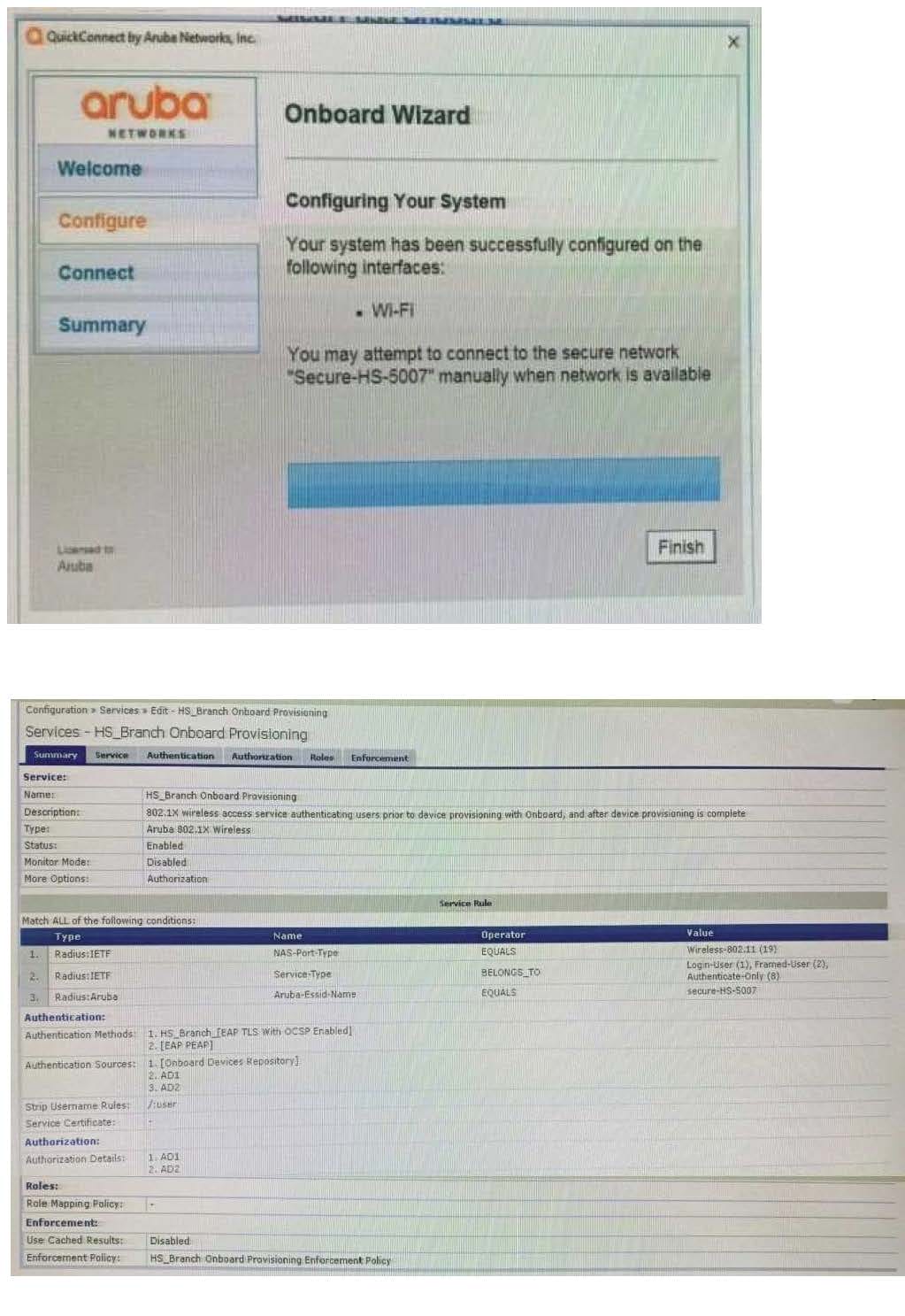

Refer to the exhibit:

You have configured an Onboard portal for single SSID provision. During testing you notice that the QuickConnect Application did not display the "Connect" button, only the finish button. To get connected the test user had to manually connect to the secure-HS-5007 SSID but was prompted for a username and password. Using the screenshots as a reference, how would you fix this issue?

A. Check the network settings for the correct SSID name spelling.

B. Change the network settings to use EAP-TLS for the authentication protocol.

C. Install a public signed HTTPs web server certificate on the ClearPass server.

D. Configure the SSID to support both EAP-PEAP and EAP-TLS authentication method.
