An administrator supports a RAP to a branch office. Employees at the branch office connect to an employee SSID that allows for split tunneling of the employee traffic. The RAP initially connects to the corporate office controller, but later loses connectivity to it.
Which operating mode should the administrator configure for a secondary SSID to be advertised during the loss of connectivity?
A. Standard
B. Persistent
C. Always
D. Backup

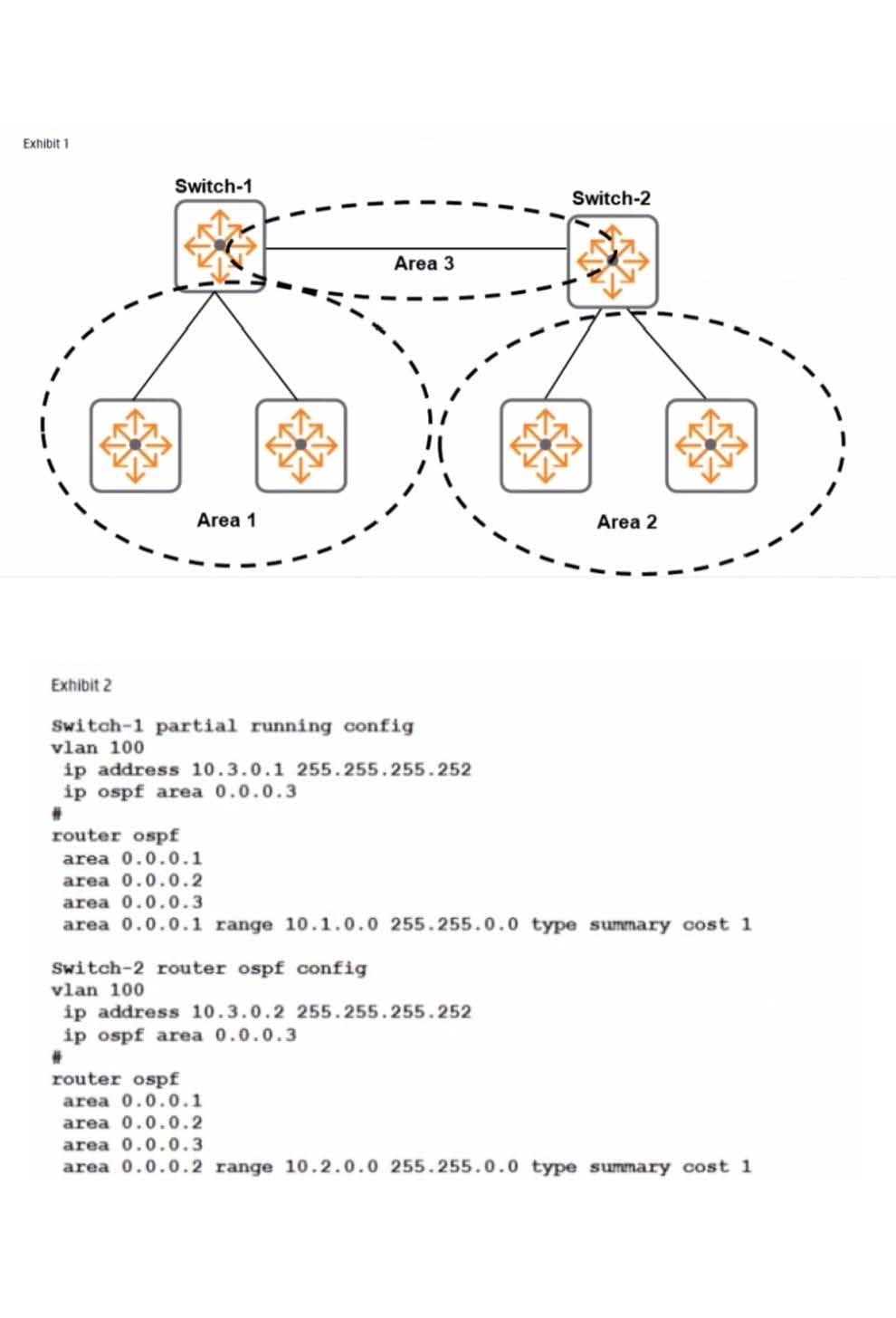

Refer to the exhibit.
A company has attempted to implement OSPF without success. The devices in Area I need to be able to reach Area 2. Routes should be aggregated for advertisement in other areas. What must be changed to meet these requirements?
A. Change Area 3 to Area 0; remove Area 1 from Switch-2 and Area 2 from Switch-1.
B. Add the 10.2.0.0/16 range on Swttch-1 and the 10.1.0.0/16 range on Switch-2.
C. Add Area 1 and Area 2 on VIAN 100 on both Switch-1 and Switch-2. Remove Area 3.
D. Move the 10.1.0.0/16 range to Area 2 on Switch-1 and the 10.2.0.0/16rangetoArea 1 onSwitch-2.
In a VPN that uses certificate-based authentication, which component must be configured on the Mobility Master (MM) to allow a RAP to successfully connect to a Mobility Controller (MC)
A. RAP VPN username and password
B. WLAN and new RAP group
C. RAP IPSec pre-shared key
D. RAP whitelist
Which is a valid policy simulation types in ClearPass? (Select three.)
A. Enforcement Policy
B. Posture token derivation
C. Role Mapping
D. Endpoint Profiler
E. Chained simulation

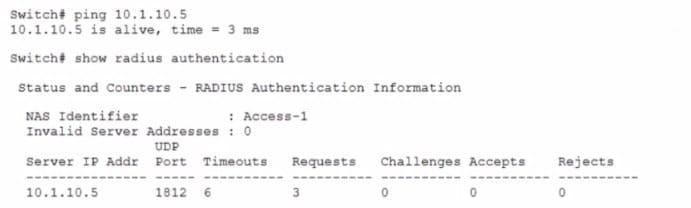

Refer to the exhibit.
A network administrator sets up 802.1X authentication to a RADIUS server on an AOS- Switch. The
RADIUS server and user devices are both set up to use REAP MSCHAPv2. The administrator tests the authentication and sees the output shown in the exhibit. Which issue could cause this output?
A. The RADIUS shared secret does not match on the switch and the server.
B. The administrator entered the wrong password for the test account.
C. The switch does not have a certificate tor port-access installed on the switch.
D. The switch port is set for user mode 801. IX. but the RADIUS server is set for port mode.
An administrator mistakenly configures the wrong VLAN setting on a managed controller's interface. This causes the controller to lose management access to the Mobility Master (MM).
Which mechanism will then attempt to restore the previous working configuration on the managed controller?
A. disaster recovery
B. auto-rollback
C. restore config
D. bulk configuration

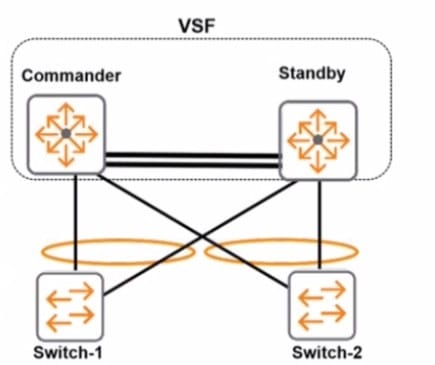

Refer to the exhibit.
A known unicast packet is received from Switch-1 on the standby and must be forwarded to Switch-2. How does the VSF fabric decide which port in the aggregated (ink should forward the packet?
A. The standby uses its own port in the link aggregation to forward the fabric.
B. The standby sends the packet to the commander over a VSF link, and the commander decides the correct port.
C. The standby uses the typical load sharing algorithm, and it might select either its port or the commander's port.
D. The standby selects the port on the designated forwarder for the aggregation.
A company has AOS-Switches, Aruba ClearPass, and Aruba Airwave. A network administrator needs to set up a new switch with the same settings found on other switches in the company. Which action rs likely to be the most useful to perform the task?
A. Access the Network Device view on ClearPass.
B. Use the configuration audit tool on AirWave.
C. View the current running config on each switch.
D. View usage patterns on the switches on AirWave.

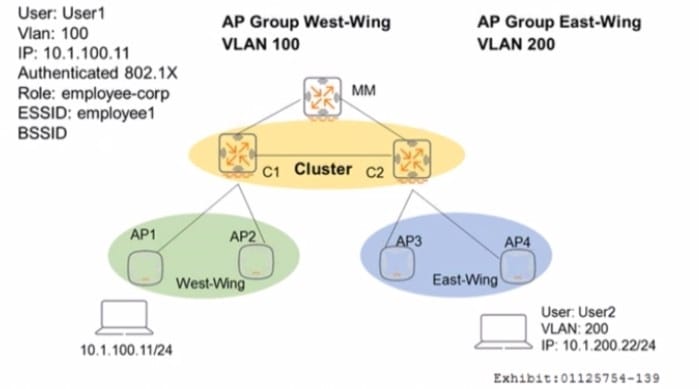

Refer to the exhibit.
Controllers are configured m a cluster as shown in the exhibit. These are the network details.
A Mobility Master (MM) manages the cluster.
The cluster contains two controllers: C l and C2.
API and AP2 use CI as their Active AP Anchor Controller (A-AAC). with C2 as their Standby AAC (S-AAC).
AP3 and AP4 use C2 as their A-AAC, with CI as their S-AAC.
User1 establishes a wireless connection via API, where the Active User Anchor Controller (A-UAC)
assigned is CI. with C2 as the standby. What happens when User I roams the wireless network and
eventually their session is handled by AP3?
A. The AP3's A-AAC switches to C1, and the user's A-UAC remains on C1.
B. The AP3's A-AAC switches to C2, and the user's A-UAC remains on C2.
C. The AP3's A-AAC switches to C1, and the user's A-UAC remains on C2.
D. The AP3's A-AAC switches to C2, and the user's A-UAC remains on C1.
A network administrator wants to use Aruba AirWave to audit an AOS-Switch configuration. What rs one requirement?
A. The switch defines the AirWave IP address in its zero touch provisioning (ZTP) profile.
B. The switch specifies the AirWave IP address for the RADIUS server used for Telnet and SSH authentication.
C. The switch is authorized in AirWave, which has the correct credentials to log in as a CLI manager.
D. The switch is set to Manage Read-Write mode in AirWave but is not set to Monitor Only + Firmware Updates.

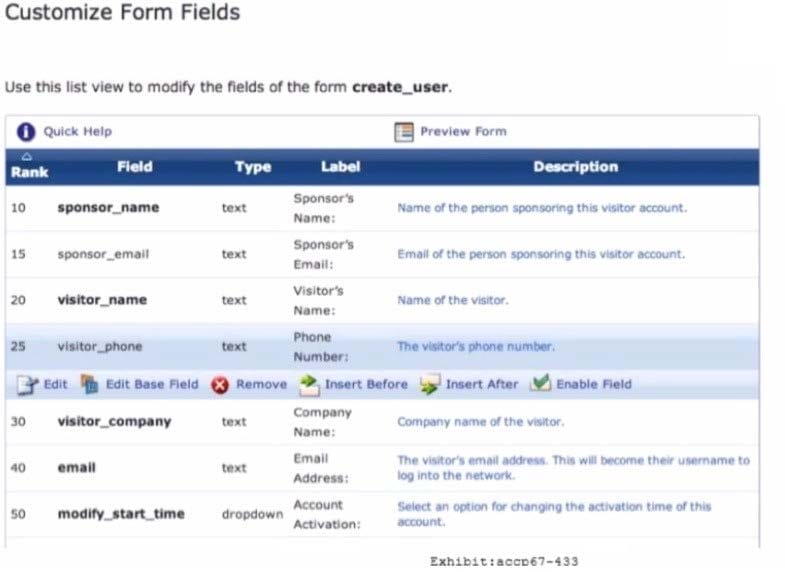

Refer to the exhibit.
Based on the configuration of me create_user form shown, which statement accurately describes the status?
A. The email field will be visible to guest users when they access the web login page.
B. The visitor_company field will be visible to operators creating the account.
C. The visitor_company field will be visible to the guest users when they access the web login page.
D. The visitor_phone field will be visible to the guest users in the web login page.
E. The visitor_phone field will be visible to operators creating the account.
What is true about clustering and AP connections to cluster members?
A. The AP will always stay connected to the LMS IP address configured in the AP profile.
B. During rebalancing, the active load is redistributed first.
C. The default thresholds are 75% for the Rebalanced Threshold and 25% for the Unbalanced Threshold.
D. AP load balancing is disabled by default.

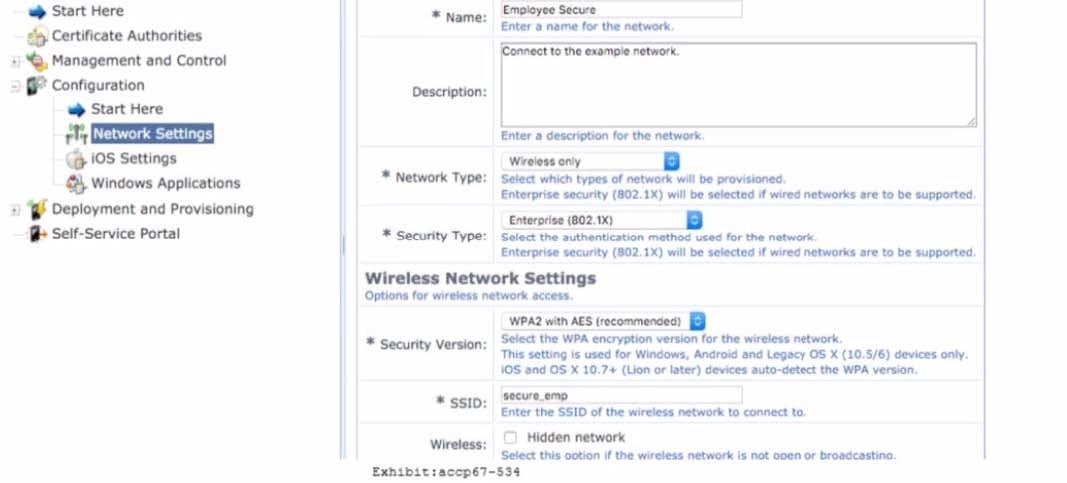

Refer to the exhibit.
Which statements accurately describe the status of the Onboarded devices in the configuration tor the network settings shown? (Select two.)
A. They will connect to Employee_Secure SSID after provisioning.
B. They will connect to Employee_Secure SSID for provisioning their devices.
C. They will use WPA2-PSK with AES when connecting to the SSID.
D. They will connect to secure_emp SSID after provisioning.
E. They will perform 802.1X authentication when connecting to the SSID.
A network administrator configures V5F settings on two Aruba 2930F switches. The switches form two separate VSF fabrics. What should the administrator check?
A. that the domain ID matches on both switches
B. that each switch is assigned a unique VSF priority
C. that the switch with the lower priority has the lower member ID
D. that LLDP MAD is configured on both members

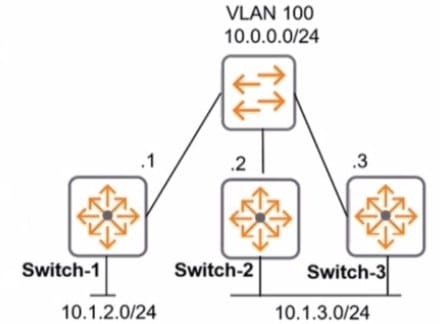

Refer to the exhibit.
The network administrator wants to reduce failover time If a switch link m VIAN 100 goes down. What should the administrator do?
A. Configure echo mode BFD on VLAN 100 on all OSPF routing devices on VLAN 100.
B. Lower the dead timer on the BDR of VLAN 100.
C. Lower the hello timer only on the BDR of VLAN 100.
D. Configure graceful restart on all of the OSPF routing devices on VLAN 100.
