A network has two AOS-CX switches connected to two different service providers. The administrator is concerned about bandwidth consumption on the service provider links and learned that the service providers were using the company as a transit AS.
Which feature should the administrator implement to prevent this situation?
A. Configure route maps and apply them to BGP
B. Configure the two switches as route reflectors
C. Configure a classifier policy to disable MED
D. Configure bi-directional forwarding detection on both switches
A company has an existing wireless solution involving Aruba APs and Mobility controllers running 8.4 code.
The solution leverages a third-party AAA solution. The company is replacing existing access switches with AOS-CX 6300 and 6400 switches. The company wants to leverage the same security and firewall policies for both wired and wireless
traffic.
Which solution should the company implement?
A. RADIUS dynamic authorization
B. Downloadable user roles
C. IPSec
D. User-based tunneling
A company has a few servers in a secure, remote location storing highly-confidential documents connected to two AOS-CX 6400 switches configured in a VSX pair The AOS-CX switches perform access control with 802 1X and will be implementing user- based tunneling (UBT) so that Aruba gateway application inspection and stateful firewall policies can be applied to the traffic. The gateways are running version 84 and implement the AP, PEF, and RFP licenses.
Which licensing is needed for the two AOS-CX switches?
A. 2 AP and 2 PEF licenses only
B. 1 AP license only
C. 2 AP, 2 PEF, and 2 RFP licenses only
D. 1 AP, 1 PEF, and 1 RFP licenses only
When cutting and pasting configurations into NetEdit, which character is used to enter commands within the context of the previous command?
A.
B. ">"
C. Space
D. Tab
What is correct regarding the tunneling of user traffic between AOS-CX switches and Aruba Mobility Controllers (MCs)?
A. Uses IPSec to protect the management and data traffic
B. Uses IPSec to protect the management traffic
C. Supports only port-based tunneling
D. Uses the same management protocol as Aruba APs
A customer has twenty AOS-CX switches that will be managed by NetEdit and would like support for NetEdit these switches will exist in the network for at least five years.
Which type of licensing should be used by this customer?
A. 20 Aruba NetEdit permanent licenses
B. 20 Aruba NetEdit single node subscription licenses
C. 25 Aruba NetEdit permanent licenses
D. 1 Aruba NetEdit SMB License
When an AOS-CX switch uses a temporary copy of the Configuration State database, what kind of analysis does NetEdit perform to ensure that the configuration is correct?
A. Syntax validation
B. Semantic validation
C. Conformance validation
D. Change validation
What is correct regarding policy-based routing?
A. Policies can only be applied to routed interfaces.
B. Policies can be applied inbound and outbound.
C. Monitoring of policy interfaces occurs every 60 seconds.
D. Policy actions include routing permitting or dropping traffic.
An administrator is designing an access layer solution in a data center. A key requirement is to dual-home mission-critical server connections to two different switches, ensuring that the servers always have network access, even during switch software upgrades. This feature should support strictly-controlled provisioning.
What would best meet the administrator's needs when deploying AOS-CX switches?
A. VSF
B. Dynamic segmentation
C. VSX
D. NAE

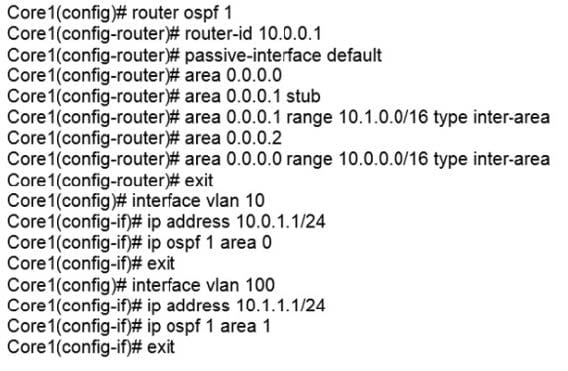

The network is configured for OSPF with the following attributes: Core1 and Core2 and ABRs Area 1 has 20 networks in the 10.1.0.0/16 range Area 0 has 10 networks in the 10.0.0.0/16 range Area 2 has 50 networks in the 10.2.0.0/16 range The ASBR is importing a static route into Area 1 Core2 has a summary for Area 2: area 0.0.0.2 range 10.2.0.0/16 type inter-area Here is the OSPF configuration performed on Core1: Based on the above information, what is correct?
A. Area 0 has 13 routes
B. Core1 has no OSPF routes
C. Core1 has received one LSA Type 5 from the ASBR
D. Area 1 has 23 routes
How is NetEdit installed at a customer location?
A. Via an Aruba NetEdit hardware appliance
B. Via a DVD using a virtualized platform like Microsoft's Hyper-V
C. Via the Aruba Central cloud solution
D. Via an OVA file and a virtualized platform like VMware's ESXi

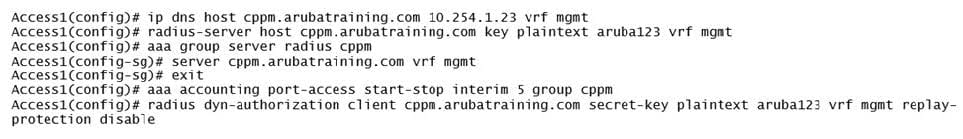

An administrator implements interim accounting for guest users so that ClearPass can track the amount of bandwidth that guests upload and download. Guests that abuse bandwidth consumption should be disconnected from the network. The administrator configures the following on the AOS-CX access switches:
After performing this configuration, the administrator notices that guest users that have exceeded the guest bandwidth limit are not being disconnected. Upon further investigation, Access Tracker in ClearPass indicates a disconnect CoA message is being sent to the AOS-CX switch.
What is causing this issue?
A. RADIUS change of authorization is not enabled on the AOS-CX switch.
B. Bandwidth consumption of the guests is not being reported by the AOS-CX switch.
C. NTP is not configured on the AOS-CX switch.
D. There is a time discrepancy between the AOS-CX switch and ClearPass.

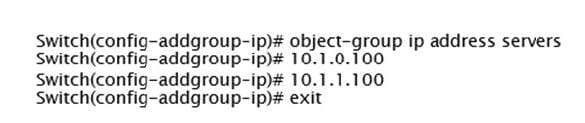

Examine the following AOS-CX switch configuration:
Which access control entries would allow web traffic to the web servers 10.1.0.100 and 10.1.1.100?
A. permit tcp servers eq 80
B. permit tcp any 10.1.0.100 0.0.1.0 eq 80
C. permit tcp any 10.1.0.100/10.1.1.100 eq 80
D. permit tcp any 10.1.0.100/255.255.254.255 eq 80

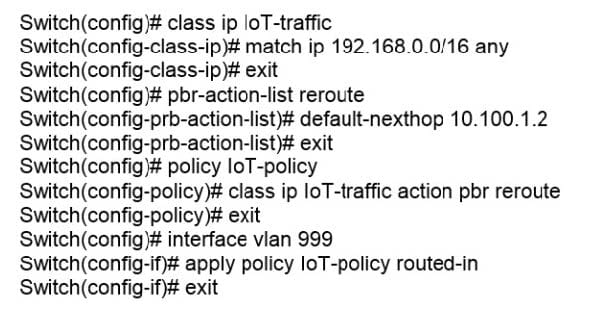

Examine the following AOS-CX configuration:
Based on this configuration, which statement is correct regarding IoT traffic?
A. If 10.100.1.2 is not reachable, the IoT traffic will be automatically dropped by the switch
B. If a specific route is not available in the routing table, the traffic will be routed to 10.100.1.2
C. The next hop of 10.100.1.2 can be one or more hops away from the AOS-CX switch
D. All routes are ignored in the routing table for IoT traffic, which is routed to 10.100.1.2
An administrator has an aggregation layer of 8325CX switches configured as a VSX pair.
The administrator is concerned that when OSPF network changes occur, the aggregation switches will respond to the changes slowly, and this will affect network connectivity, especially VoIP calls, in the connected access layer switches.
What should the administrator do on the aggregation layer switches to alleviate this issue?D18912E1457D5D1DDCBD40AB3BF70D5D
A. Implement route aggregation
B. Implement bidirectional forwarding detection (BFD)
C. Reduce the hello and dead interval timers
D. Implement graceful restart
