HOTSPOT
Click the option that must be configured for an HPE OneView when an HPE storage system is connected directly to an HPE Synergy frame.
Hot Area:
How can your customer implement HPE OneView so that it can be used to manage an HPE ProLiant server and HPE BladeSystem?
A. As a virtual appliance running on the supported hypervisor
B. As an application running on the server with CentOS Linux system
C. As an application running on the server with Windows system
D. As a physical appliance based on HPE ProLiant 360 Gen10
You try to add a new connection within a server profile, but an operation fails when you try to commit the changes.
What is a possible reason?
A. You tried to add additional connection above the limit
B. The server is powered on
C. The server does not have an HPE OneView license applied
D. The server is powered off
You have created volumes using array management tools and imported the volumes to HPE OneView.
Which statement about these volumes is true?
A. Imported volumes are treated as private volumes and can be only used as boot volumes
B. Volumes imported to HPE OneView is managed just like a volume created using HPE OneView
C. Volumes imported to HPE OneView cannot be removed using the HPE OneView interface
D. A snapshot for imported volumes can be created only by using array management tools

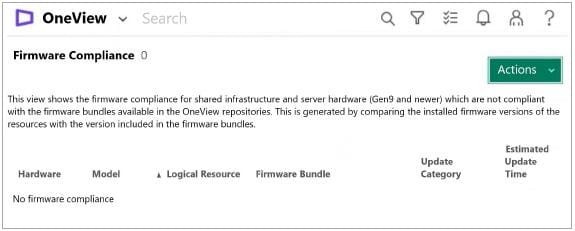

Refer to the exhibit:
A customer complains that firmware compliance is empty. The customer confirmed that Synergy Service Pack is uploaded to the HPE OneView repository. How should you respond?
A. The firmware repository is not defined within firmware compliance report
B. The firmware repository service must be restarted using maintenance connection
C. The refresh procedure must be performed on each logical enclosure to refresh firmware
D. All of the components are up to date and compliant with firmware baseline
What is required to add remote frame link topology to HPE OneView?
A. The IP address assigned to HPE Composer installed in a remote site must be registered in a primary site
B. Multi-site licenses must be added to HPE OneView and activate for all available HPE Synergy frames
C. The HPE OneView certificate from the primary site must be added to HPE OneView in the remote site
D. Management ports of the remote frame link topology must be connected to the management LAN
You want to update the firmware for only two HPE Synergy Virtual Connect SE 32Gb FC Modules of a large environment. From which level must this procedure be initiated?
A. Logical Enclosure
B. Logical Interconnect
C. Server Profile
D. Logical Interconnect Group
Your customer has an environment with five HPE Synergy Composers and 15 HPE OneView appliances managing servers that run VMware. The customer is having a hard time managing their servers. What can the customer do to simplify management of this complex environment?
A. deploy HPE OneView for VMware vCenter Server
B. deploy HPE OneView Global Dashboard
C. use an Ansible playbook
D. integrate all HPE OneView appliances and HPE Composers with Active Directory

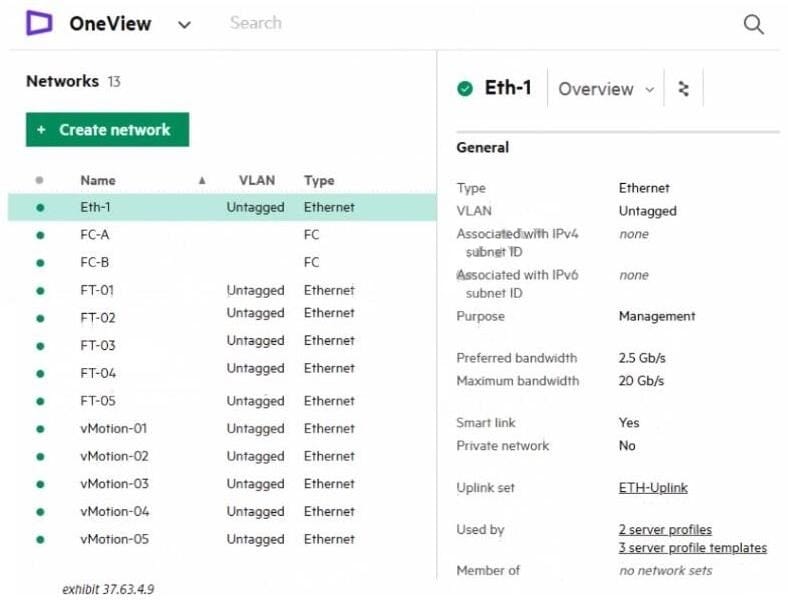

Refer to the exhibit.
Your customer created multiple networks in HPE OneView, but only Eth-1 is available to be used within a server profile. What is a likely cause of this situation?
A. The other networks are not configured with the required Smart Link parameter
B. The other networks are configured with a purpose other than General or Management
C. The other networks have `Private Network' selected, which hides them from Compute Modules
D. The other networks are not added to the Logical Interconnect Group configuration
How will setting the Purpose field within the network definition of a server profile impact the network traffic?
A. network purpose can give higher priority for a specific type of traffic
B. network purpose will impact the traffic only if Virtual Connect modules are used
C. network purpose will define QoS within Logical Interconnect
D. network purpose does not affect the behavior of the network
Which statement about logical JBODs configured using KPE OneView and D3940 Storage Modules is true?
A. A logical JBOD lifecycle can be associated with a server profile lifecycle and drives can be securely erased
B. A logical JBOD cannot be created during server profile creation and must be prepared in advance
C. Different types of the drives can be used within a logical JBOD as long as they have the same capacity
D. Logical JBOD functionality must be enabled on the Enclosure Group level by a storage administrator
Your customer wants to use HPE OneView for VMware vCenter Server to simplify management of their VMware cluster running on HPE Synergy. The customer is concerned with the cost of additional licenses.
How will you explain licensing rules for this product?
A. As long as the customer has HPE OneVtew Global Dashboard deployed, HPE OneView for VMware vCenter Server does not require any additional licenses.
B. One HPE OneView for VMware vCenter Server license is required per HPE Synergy frame if more than 10 Compute Modules are installed in the frame.
C. If the number of the HPE Synergy Compute Modules installed in HPE Synergy frame is less than 10, no license is required to use HPE OneView tor VMware vCenter Server.
D. As long as the server is managed using HPE OneView. the customer can use HPE OneView for VMware vCenter Server without additional licenses.
Which connection type can be defined within a server profile for an MPE ProLiant DL server?
A. iSCSI
B. RoCE
C. FC
D. Ethernet
What step must be taken to add an HPE SuperDome Flex to an existing OneView environment
A. A Rack Management Controller must be added to HPE OneView.
B. HPE Superdome Flex can be added to HPE OneView after at least one nPAR is created.
C. Each HPE Superdome Flex chassis must be added Individually using BMC IP.
D. HPE Superdome Flex complex can be added by adding base chassis of this complex.
Which operation can be performed using HPE OneView for VMware vCenter Server?
A. Remove a new node from an existing cluster
B. Create a new VMware cluster within vCenter Server
C. Configure VMware cluster properties tor HA and DRS
D. Create a new distributed switch for cluster connectivity
