HOTSPOT

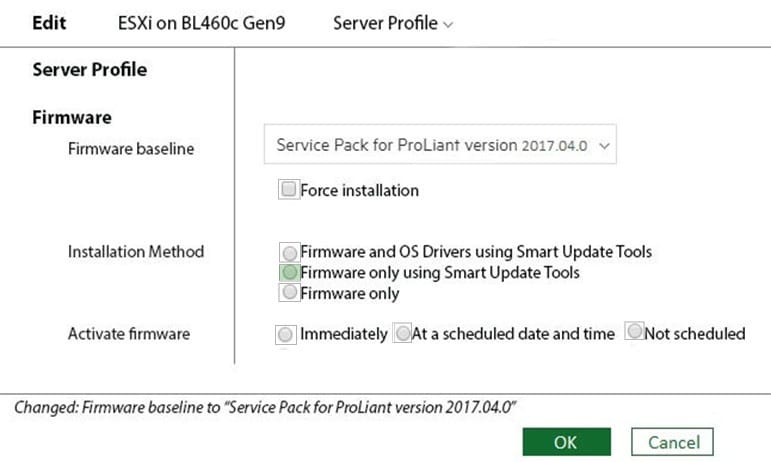

A customer has a four node ESXi cluster. They update drivers via vCenter Update Manager and want use HPE OneView Server Profile Templates to update the firmware while the systems are online. Click on the place they should select within the server profile template to update the firmware while the systems are online.
Hot Area:
DRAG DROP

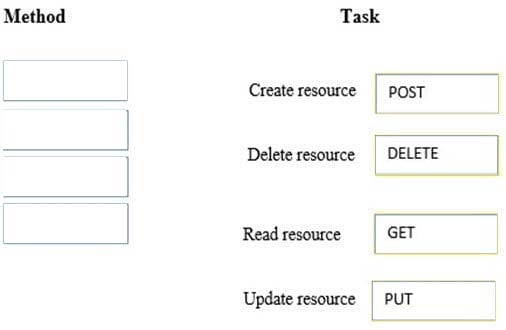

For each REST API operation, match the appropriate HTTP method to accomplish each task.
Select and Place:
DRAG DROP
Match the HPE OneView interconnect module state to its definition.
Select and Place:
Which REST API headers are recommended when creating a new Ethernet network? (Choose two.)
A. Content-Type
B. X-API-Version
C. Accept-Language
D. Accept-CharSet
A customer has HPE OneView 1.2 and wants to upgrade to 4.0. What is the correct procedure?
A. import all virtual connect manager environments and then upgrade directly to 4.0
B. upgrade directly to 4.0
C. upgrade to 3.1, import all virtual connect manager environments, then upgrade to 4.0
D. upgrade to 3.1 and then upgrade to 4.0
A customer has deployed the HPE OneView virtual appliance and is getting an error message when they attempt to import a Synergy frame for management. What is the most likely cause of the problem?
A. Synergy frames require additional HA requirements for the virtual appliance.
B. Synergy frames are managed by the HPE Composer.
C. The backup IPv6 address of the Frame Link module was used during the import.
D. The HPE OneView virtual appliance has the wrong database size.
What is the most likely reason for CPU, temperature, or power utilization not being presented in HPE OneView?
A. The wrong HPE OneView Advanced License Key was entered.
B. The agent on the server stopped communicating with HPE OneView.
C. The server doesn't have an iLO Advanced License.
D. The wrong SNMP data was entered into iLO.
A server administrator is integrating HPE OneView authentication with Active Directory and needs to add read-only access to members of a domain group. Which steps are part of the procedure? (Choose two.)
A. Add the domain group in Users and Groups menu.
B. Define the Active Directory domain and associated directory server(s) in Directory settings.
C. Add the domain group as Base DN in Directory settings.
D. Add the domain group as Organization Unit in Directory settings.
E. Add the Active directory server in Users and Groups menu.
What tool can you use to provision hosts using server profiles to create or grow a Hyper-V cluster?
A. HPE Insight Control Server Provisioning
B. HPE OneView for Microsoft System Center
C. HPE iLO Virtual Media
D. Microsoft Operations Manager
For multiple events to be identified as an SNMP trap storm, what criteria must the traps meet? (Choose three.)
A. have the same trap identifier
B. are within 1 second of the previous event
C. have the same hostname
D. are from the same device
E. originate from the same MAC addresses
F. have the same number of variable string values
Besides SPP's (Service Pack for HPE ProLiant), what else can be uploaded to the firmware repository section in the HPE OneView UI?
A. operating system patch
B. third party drivers
C. Support Dump
D. Smart Component
A systems administrator needs to add a VLAN to a network set to support a new application. They have added the network to the upstream switch and the Logical Interconnect Group in HPE OneView but traffic is not passing. What is the most likely cause of the problem?
A. Intelligent Management Center (IMG) has not been updated via REST.
B. The administrator failed to update the state change message bus.
C. The administrator needs to update the Logical Interconnects from the Logical Interconnect Group.
D. The upstream switch doesn't have the VLAN enabled.
You need to remove 25 unassigned Server Profiles from HPE OneView. What's the most efficient way to accomplish this?
A. Use REST API with the POST method
B. Use REST API with the DELETE method
C. Select the Server Profile Template for each server and click "Delete" from the "Actions" menu
D. Edit each Server Profile and change the Server Profile Template to "none"
How can a server administrator present a 3PAR volume to the server managed by HPE OneView?
A. in the volume properties
B. in the CPG configuration
C. through supported SAN manager
D. using a server profile
An administrator needs to restore an appliance that was recently updated. What does the administrator need keep in mind regarding restoring from a backup?
A. The appliance can be restored only from the maintenance console.
B. A successful appliance restore requires the password configured during backup.
C. The appliance cannot be restored from a backup older than 180 days.
D. An appliance can only be restored from a backup created on an appliance of the same version.
