DRAG DROP
A customer needs a new environment to support an ERP system. The sizing information you received shows the following requirements:
1.
3 servers with dual AMD processors, 256GB RAM, and 10Gb network connectivity
2.
10TB of high performance shared storage
3.
Cloud-based performance monitoring and analytics
The customer prefers rack mounted equipment.

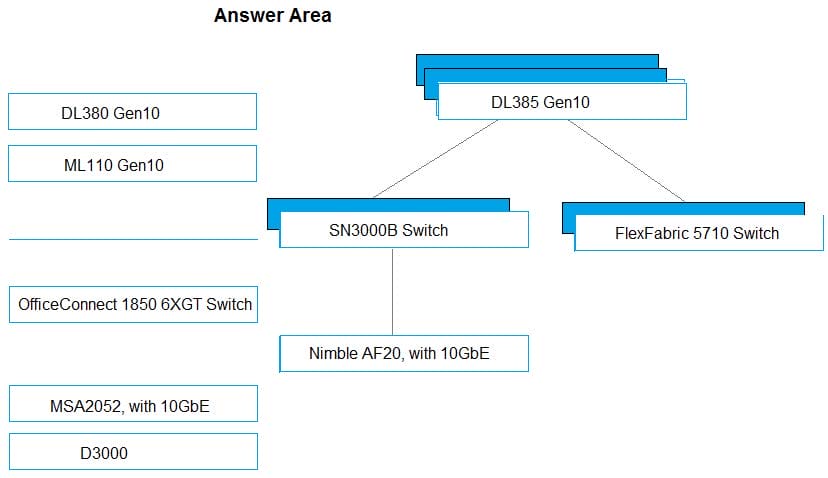

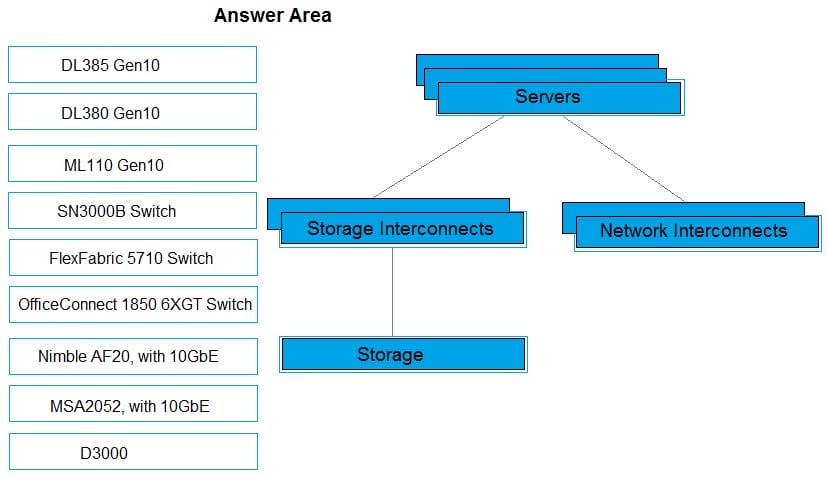

Identify the components that will meet the customer requirements, then drag the correct components on the left to their appropriate location in the environment on the right.
Select and Place:
DRAG DROP
Match each characteristic to the correct storage type.
Select and Place:
DRAG DROP

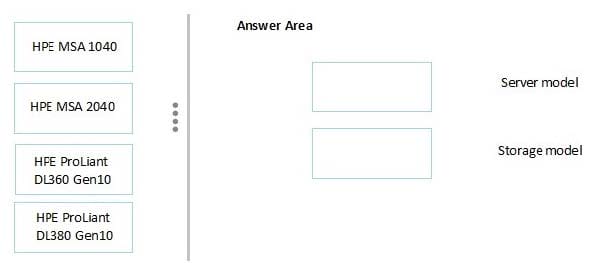

A customer is expanding from local storage to a SAN environment for the firt time. They plan to future proof their environment with a 16 Gb Fibre Channel. They also want to allow for future I/O expansion with new servers. Identify the correct server and storage to meet the customer requirements.
Select and Place:
Which solution should you recommend to a customer for basic file and print services?
A. Superdome Flex
B. ProLiant
C. Synergy
D. Apollo
What connection type is identified by the following address type? B4-D5-BD-9F-0A-C3
A. IPV6
B. ISCSI
C. MAC Address
D. WWN
A customer needs to share files cost-effectively among their Microsoft Windows server over a local network. Which storage solution meets this requirement?
A. Storage Area Network (SAN)
B. Network File System (NFS)
C. Direct Attached Storage (DAS)
D. Network Attached Storage (NAS)
Refer to the exhibit.

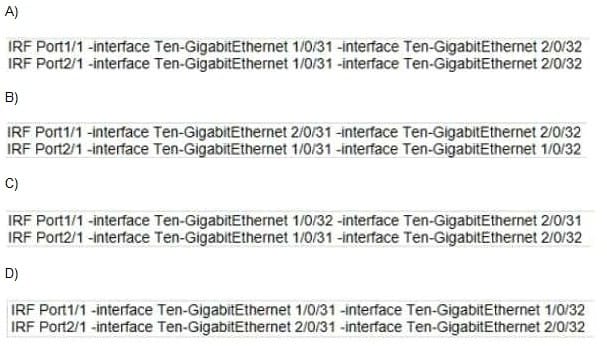

You are configuring a pair of HPE 5945 switches into an IRF stack You have cabled the switches as depicted in the exhibit Into which IRF Ports should you place each switch interface?
A. Option A
B. Option B
C. Option C
D. Option D
What should you configure to limit the scope of broadcast domains in an Ethernet network?
A. Trunks
B. VSAN
C. Static ARP
D. VLAN
A customer is planning an upgrade to their network. They need to combine multiple existing switches into one virtual device. Which technology should the customer configure on their existing switches?
A. Multi-chassis Link Aggregation (MLAG)
B. Link Aggregation Control Protocol (LACP)
C. Rapid Spanning Tree Protocol (RSTP)
D. Intelligent Resilient Framework (IRF)
A customer needs a solution that supports rapid provisioning changes on physical bare-metal servers and on a virtualization hypervisor. They are considering migrating to a new solution that supports software-defined storage. Which HPE compute platform should the customer implement?
A. ProLiant DL
B. BladeSystem
C. Synergy
D. SimpliVity
You need to change BIOS configuration settings without rebooting a server. Which system utility should you use?
A. Intelligent Management Center
B. Lights-Out Online Configuration utility
C. intelligent Provisioning
D. smart Storage Administrator
When installing servers in a rack, a customer has left gaps between the servers.
What should you tell this customer regarding the space between servers? (Select two.)
A. It should be filled with blanking panels.
B. It does not provide correct rack airflow.
C. It provides easy access for servicing components.
D. It allows for easier cable management.
E. It allows for side-to-side component cooling.
You are troubleshooting a HPE ProLiant rack-mount server. All installed server fans constantly run at 100%.
Which action should you take first?
A. Update all system firmware
B. Replace all cooling fans
C. Reseat drive blanks
D. Unplug all but one cooling fan
A customer has a small branch office that requires a tower-based server solution. The customer runs office-based applications and wants lights-out management capability.
Which HPE server family meets the customer's needs?
A. ProLiant ML
B. ProLiant DL
C. ProLiant BL
D. ProLiant MicroServer
You plan to install an HPE ProLiant DL360 Gen10 in an environment with an ambient temperature of 45 (113 ).
Which additional option is required?
A. 500W Flex Slot Platinum PS Kit
B. M.2 Solid State Enablement Kit
C. Gen10 Bezel Kit
D. High Performance Fan Kit
