HP2-Z30 Online Practice Questions and Answers

Questions 4

What is the default username and password an administrator would use to log into a new HP MSM access point?

A. username of "hp" and password of "hp"

B. username of "msm" and password of "wireless"

C. username of "admin" and password of "hp"

D. username of "admin" and password of "admin"

Browse 75 Q&As
Questions 5

Which HP switch supports nine switches in an IRF topology?

A. 5120-SI

B. 5820

C. 7500

D. 12500

Browse 75 Q&As
Questions 6

Which component of an HP Comware switch controls logging on to a syslog server?

A. Log Parser

B. Event Analyzer

C. Information Center

D. Event Log

Browse 75 Q&As
Questions 7

A network administrator has created and applied a configuration to an HP Provision switch. The network administrator then copied the active configuration to a TFTP server. Upon examining the configuration file on the TFTP server, the network administrator noticed that the operator and manager passwords were not in the saved configuration file.

Which command must the network administrator execute to accomplish this task?

A. include-credentials

B. include-passwords

C. save-credentials

D. backup-accounts

Browse 75 Q&As
Questions 8

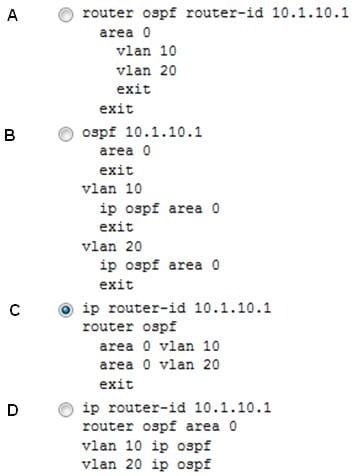

An administrator is adding an HP Provision switch to an existing OSPF network. The switch has two VLANs, 10 and 20, that should be included in OSPF's area 0. The IP address of the switch in VLAN 10 is 10.110.1/24 and in VLAN 20 is 10.1.20.1/24.

Which configuration includes both VLANs in the switch's OSPF routing process?

A. Option A

B. Option B

C. Option C

D. Option D

Browse 75 Q&As
Questions 9

Which Access Point (AP) type corresponds to HP MSM autonomous operational mode?

A. Thin

B. Fat

C. Modal

D. Fit

Browse 75 Q&As
Questions 10

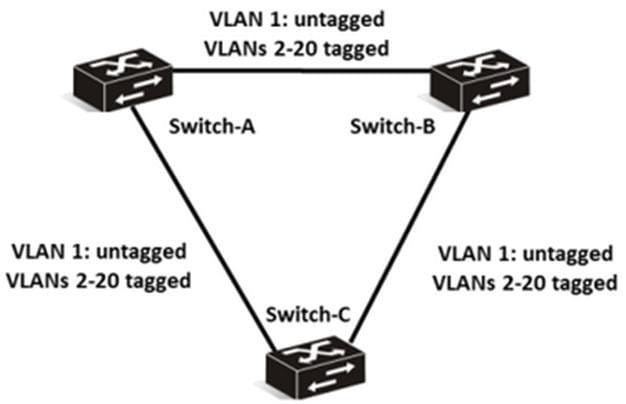

Refer to the network exhibit.

A network administrator has created a Layer 2 network based on the design shown in the exhibit. Switch-A and Switch-B are distribution layer switches. Switch-C is an access layer switch. All switches are HP Comware switches.

What is the best spanning tree solution for load sharing on uplinks in this environment?

A. STP

B. MSTP

C. RSTP

D. distributed trunking

Browse 75 Q&As
Questions 11

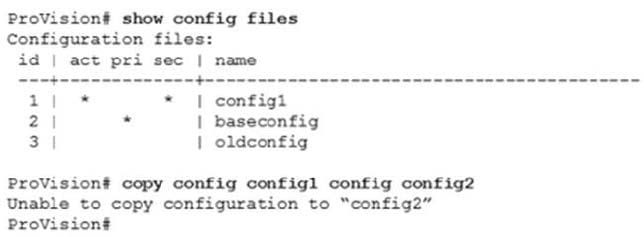

Refer to the exhibit.

A network administrator is managing the configuration files on an HP Provision switch and executes the commands shown in the exhibit. What is the probable cause of the error message when the network administrator tries to copy the file?

A. The flash memory in the switch is full and supports no more files.

B. The copy command should only be used to manage operating systems.

C. No empty configuration memory slots exist on the switch.

D. The copy command contains a syntax error.

Browse 75 Q&As
Questions 12

Which open-standard protocol allows a network administrator to view the running operating system version and IP address of a neighboring device?

A. STP

B. LLDP

C. ARP

D. CDP

Browse 75 Q&As
Questions 13

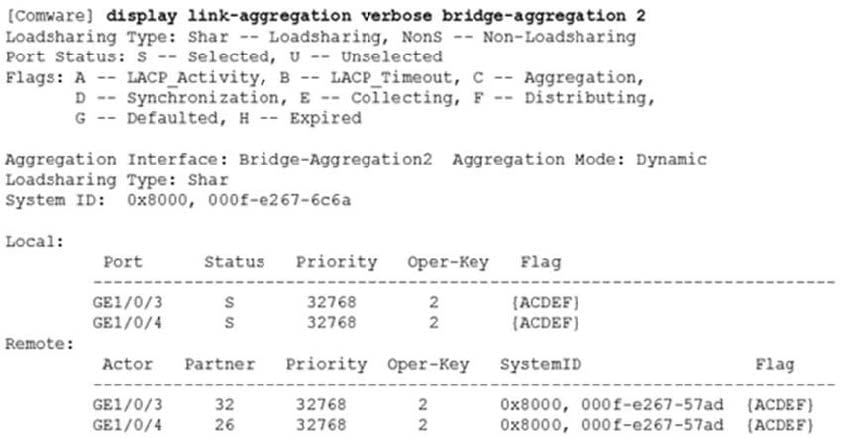

Refer to the partial command output:

Based on this output, which statement is true?

A. Dynamic LACP is used, and load sharing is functioning correctly.

B. Static LACP is used, and load sharing has failed.

C. Dynamic LACP is used, and load sharing has failed.

D. Static LACP is used, and load sharing is functioning correctly.

Browse 75 Q&As
Questions 14

Which HP Provision switch command controls the logging level of messages sent to a syslog server?

A. info-center level

B. logging severity

C. logging-host trap-level

D. syslog severity

Browse 75 Q&As
Questions 15

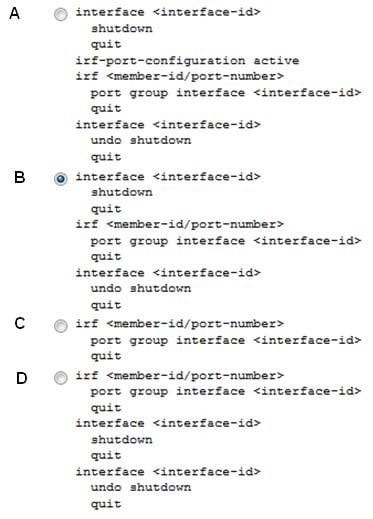

Which IRF configuration, in the correct order, includes the physical interfaces in an IRF port?

A. Option A

B. Option B

C. Option C

D. Option D

Browse 75 Q&As
Questions 16

Which statement is true about the management of HP ProVision and Comware switches?

A. Telnet SSH are enabled by default on Comware switches.

B. Telnet is enabled but SSH is disabled on ProVision switches.

C. Comware switches, by default, store usernames and passwords in a separate configuration file.

D. ProVision switches, by default, store usernames and passwords in a separate configuration file.

Browse 75 Q&As
Questions 17

A network administrator has set up a link between two HP ProVision switches. Both switches have an IP address in VLAN 1 and can ping each other in VLAN 1.The network administrator then creates VLAN 2 and tags it to same link of both switches.

How can the network administrator verify that connectivity in VLAN2 is functional between the twoswitches?

A. Assign each switch an IP address in VLAN 2 and use LLDP to test connectivity.

B. Use either LLDP or ARP to test connectivity

C. Assign each switch an ip address in VLAN 2, and use ICMP or LLDP to test connectivity

D. Assign each switch an IP address in VLAN 2, and use ICMP to test connectivity

E. Use LLDP to test connectivity

Browse 75 Q&As
Questions 18

Which Intelligent Management center (IMC) module implements policies for environments that support bringsyour own device (BYOD)?

A. NTA

B. SOM

C. EAM

D. UAM

Browse 75 Q&As
