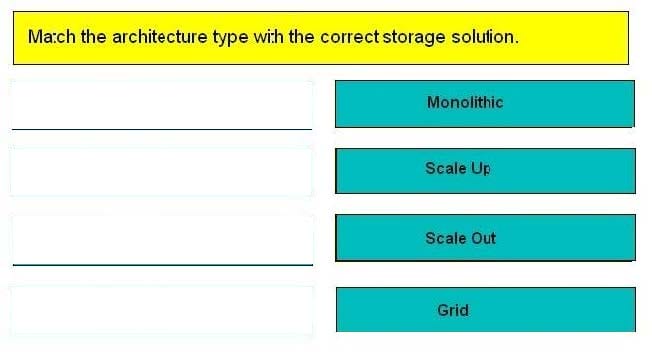

Match the architecture type with the correct storage solution.
Select and Place:
Select and Place:
You are performing a demo of an HP StoreOnce 2620i Backup System solution in combination with HP Data Protector. All best practice guidelines for the VTL and Data Protector have been adhered to. However, you receive the following
error when formatting a cartridge in a previously-created VTL.
[Normal] From: [email protected] "Drive_Demo" Time: 4/23/2013 10:26:09 PM Tape0:0:0:0C
Initializing new medium: "[4E94F289] 4E94F289"
[Major] From: [email protected] "Drive_Demo" Time: 4/23/2013 10:26:10 PM [90:51] Tape0:0:0:0C Cannot write to device ([87] Wrong parameter.)
[Major] From: [email protected] "Drive_Demo" Time: 4/23/2013 10:26:10 PM Initialization of medium failed. [Normal] From [email protected] "Drive_Demo" Time: 4/23/2013 10:26:14 PM Ejecting medium Tape0:0:0:0C".
What must you do to perform a successful demo?
A. Add an iSNS-Server in the media Server iSCSI configuration, and restart the iSCSI service.
B. Disable "Automatically discover changed SCSI address" for the VTL drives, and rescan the library.
C. Disable "SCSI Reserve /Release (drive)" for all of the drives and robotics in the environment and rescan the library.
D. Change the maximum transfer length of the iSCSI initiator in regedit, and restart the media server.
A customer asks you to architect a new SAN fabric infrastructure comprised of redundant fabrics for a test/dev server environment. They need to provide selective connectivity for array-based snapshots from disk arrays hosted on the existing Cisco MDS 9506 Multilayer director-based production fabric, to hosts on the test/ dev fabric. A customer requirement is to utilize a different vendor for the test/dev fabric. Which SAN technology enables the test/dev SAN fabric to maintain interoperability between the two fabrics and meet the stated requirements?
A. HP B-Series with Transparent Router (TR)
B. HP H-Series with Transparent Router (TR)
C. HP B Series with Inter-VSAN Routing (iVR)
D. HP H-Series with Inter-Fabric Routing (IFR)
A customer has an outdated 4Gb Fibre Channel infrastructure environment that needs to be updated. The customer uses two data centers on a campus with a dual-redundant fabric layout interconnected by customer owned fiber and an evenly-spread port count. The total port count is 86 ports per fabric and is unlikely to increase due to the continuing virtualization of physical servers. The customer is concerned about data security and requires the connections between data centers to be encrypted.
What should you propose to meet the customer requirements?
A. Four HP StoreFabric SN6000B switches
B. Six HP B-Series 8/40 switches
C. Eight HP StoreFabric SN3000B switches
D. Ten HP StoreFabric SN6000 switches
You are designing an HP 3PAR StoreServ solution that replicates to a second HP 3PAR StoreServ array at the customer secondary data center, which is 20 miles away. You determine that the round trip latency between sites is 5ms. Which replication solution should you recommend?
A. Asynchronous Real Time
B. Synchronous Long Distance
C. Synchronous
D. Asynchronous Periodic
Your customer wants to replicate backup data from branch offices to a primary data center where an HP StoreOnce 4430 Backup System using HP StoreOnce Catalyst is located. The backup application is HP Data Protector 7.01. The file and application servers have Windows 2003, Windows 2008 and SUSE Linux 9 and 10 installed. As a long-term strategy, the customer wants to migrate all services to the primary data center. No additional hardware can be purchased for the branch offices, and complexity should be minimized.
In addition to the HP EBS Compatibility Matrix, which additional HP resources should be used to validate interoperability of a new solution?
A. HP Enterprise Backup Solution Design Guide
B. HP Data Protector Platform and Integration Matrix
C. HP Data Protector Concepts Guide
D. HP SAN Design Reference Guide
You are reviewing a colleague's extended fabric design, which proposes an HP 1606 Extension SAN Switch.
Which customer requirement should lead you to choose an HP Multi-protocol Router Blade for the B-Series as an alternative?
A. Requirement to extend the fabric between sites
B. Concerns around fabric stability
C. Requirement to support dark fiber metro connectivity
D. Need for up to 10 Gbs replication bandwidth

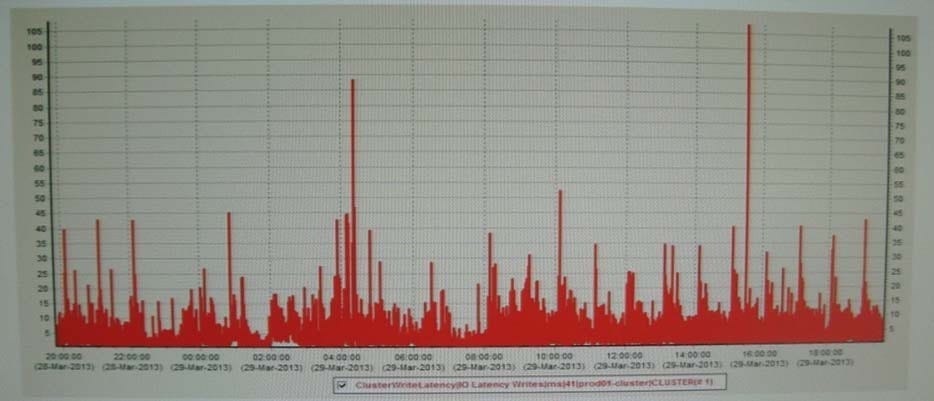

Refer to the exhibit:
A customer reports poor application performance on their Oracle database, which is on an existing two node provides you with the chart in the exhibit. Which assumption can you make based on this graph?
A. Hard drive background tasks cause a bottleneck on the cluster.
B. Asynchronous replication from this cluster causes a bottleneck.
C. Database read operations cause a bottleneck on the cluster
D. Writing archive logs causes a bottleneck on the cluster
A customer has outgrown the internal tape drive on their media server. You recommend eliminating tape and leveraging an HP StoreOnce solution that enables replication if the customer media server uses 10GbE network connections, what is the smallest HP StoreOnce solution you can recommend?
A. HP StoreOnce 4210iSCSI Backup System
B. HP StoreOnce 4220 Backup System
C. HP StoreOnce 4420 Backup System
D. HP StoreOnce 4210fc Backup System
You are working with a local manufacturing company to design a new SAN fabric for their primary and DR data centers. The customer requirements include:
-Fabric issues occurring in one SAN fabric must not impact or affect the other SAN fabric.
-The ability to isolate the test environment from the production environment.
- The primary and DR data centers need to utilize the same infrastructure to reduce the administration burden on SAN administrators.
Which storage technology should you propose to meet the stated requirements?
A. HP C-Series switches with FlexAttach (FA)
B. HP B-Series switches with Administrative Domains (AD)
C. HP H-Series switches with Transparent Routing (TR)
D. HP C-Series switches with Inter-VSAN Routing (IVR)
An existing environment contains a two-node HP 3PAR StoreServ 10400 storage array with approximately 60 TB of capacity spread across three tiers. The customer plans to replicate their business critical data to a remote DR site. The customer cannot afford to lose any of this data. You propose that the customer install an HP 3PAR StoreServ 7400 Storage system at the DR site.
The CFO does not want the remote equipment to sit idle, so the customer will use that equipment for data mining. The results must be replicated back to the main site. The customer also requires that the replication of the data mining results have zero impact on the data mining performance.
Which HP 3PAR technology enables the proposed solution to meet the customer requirements?
A. Peer Motion
B. Mixed Mode Replication
C. Online Import
D. Adaptive Optimization
Your customer has two data centers in a campus. The environment consists of: HP BladeSystem c7000 enclosures with HP Virtual Connect Flex-10 modules
HP ProLiant BL460c Server Blades
HP Storevirtual 4430
HP 5900 Switches
The HP Virtual Connect Flex-10 modules connect to the switches in three 10Gb Shared Uplink sets. The storage connects to the switches via 10Gb. The customer wants to migrate their network to a flat architecture and simplify managements.
What should you implement to meet the customer requirements?
A. HP Intelligent Resilient Framework (IRF)
B. HP Virtual Connect Enterprise Manager (VCEM)
C. Spanning Tree Protocol (STP)
D. HP Intelligent Management Center (IMO)
A customer has an environment spanning two datacenters in a campus environment. The primary storage is an HP 3PAR StoreServ 10400 Storage system. Data is replicated between sites with and RPO of zero.
There has recently been a hurricane and extensive flooding. While the customer was not directly impacted, they are now questioning whether they have adequate protection. You have been brought in to analyze the customer environment and make recommendations. You suggest creating a data center at a remote location and actively replicating data to it.
What are the implications of adding the third data center to the data network? (Select two)
A. Jumbo Frames should be enabled
B. The data network must support converged enhanced ethernet
C. A new subnet must be added to interconnect the 3PAR arrays
D. The data network must support Open Stack
E. 10 GbE links are needed to interconnect to HP 3PAR StoreServ Arrays

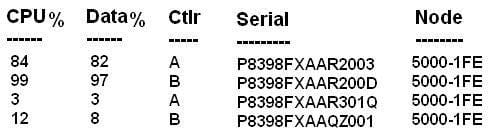

Refer to the exhibit.
You run the EVAperf cs command and generate the output in the exhibit. What must you do to display the administrator-defined EVA names when using EVAperf?
A. Upload the Command View naming table by using the CLI.
B. Turn beaconing of the EVA on by using the EVAperf be command on the CLI.
C. Import the friendly names from Command View by using CLI.
D. Establish a relationship between Command View and EVAperf by using the System Options menu in the GUI.
A customer plans to purchase an HP 3PAR StoreServ Storage solution. The system will experience heavy use of virtual copies for backup and rollback purposes. Additionally, the customer will use three tiers of storage in their system, but the snapshots must not use capacity from the SSD tier.
What is a best practice for snapshot space allocation?
A. The CPG for the snapshots must be different from the CPG for the source volume.
B. The snapshots must reside on the same CPG as the source volume.
C. Virtual volumes managed by an Adaptive Optimization policy can only be copied as full copy clones on a separate CPG
D. Snapshots of virtual volumes residing on tiered storage cannot be created.
