AX0-100 Online Practice Questions and Answers

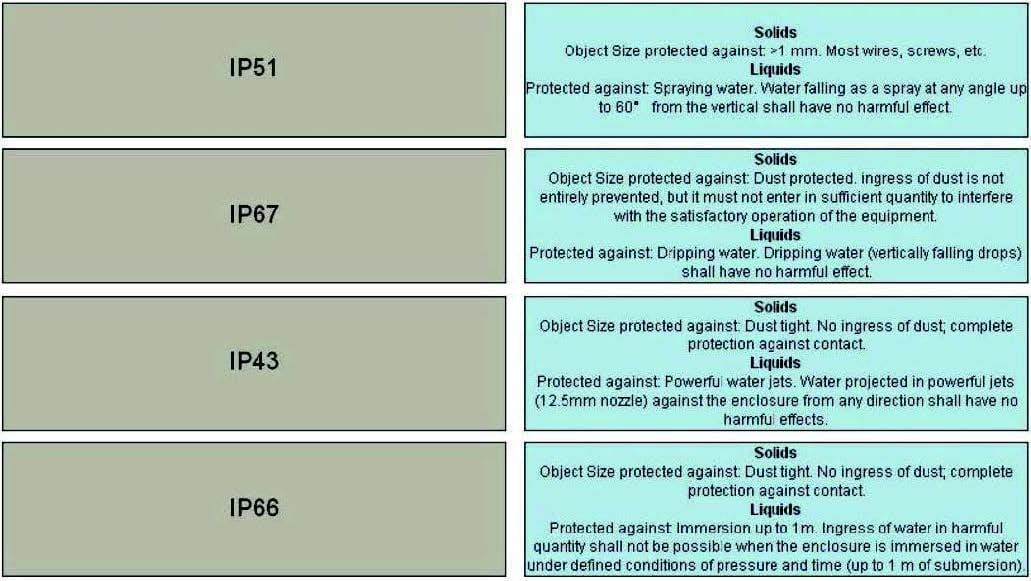

Match the following descriptions to their proper IP rating below. Drag each gray box from the left column to the matching blue box in the right column.

Select and Place:

Which technology can a Video Management Software (VMS) partner incorporate to reduce the impact on recorded video during server maintenance?

A. Local storage at the camera

B. Meta data stream

C. AXIS Camera Application Platform (ACAP)

D. SNMP

The Axis pixel counter allows a user to

A. Convert pixels to actual distances.

B. Verify that the resolution requirements for a scene are met.

C. Determine the file size for each video frame.

D. Specify different exposure zones in a scene.

A customer wants his video surveillance system to completely cover the perimeter of his property. For the installer to ensure that the camera system is not subject to sabotage, he should

A. Install more low-priced cameras to cover the complete site.

B. Make sure each camera is seen by at least one other camera.

C. Use PoE, and not a PoE splitter.

D. Install thermal cameras.

What is the difference between a zoom lens and a varifocal lens?

A. There is no difference

B. A zoom lens maintains focus when changing field of view

C. A zoom lens always has automatic focus

D. A varifocal lens has a longer field of view

Which API is used to ensure interoperability between products from different vendors?

A. ONVIF

B. VAPIX?

C. AVHS

D. HDTV

If image clarity changes are made within the camera web interface, but are not reflected within a Video Management Software (VMS), what is the most likely cause of the camera not accepting the settings?

A. The camera is faulty and needs to be replaced

B. The VMS is overwriting the changes in the camera

C. The camera's advanced settings need to be changed first

D. The user does not have administrative rights to change the settings

While setting up an AXIS Q7404 Video Encoder for control of an analog PTZ using Pelco D protocol, you run into a problem. After uploading of the proper Pelco drivers into the AXIS Q7404 Video Encoder you find that channel 1 is controlling the wrong analog PTZ. Which option below would you adjust to fix this problem so you can avoid changing physical cables?

A. IP address

B. Device ID

C. Baud rate

D. Device type

When choosing a camera for extreme low temperature environments, how would Arctic Temperature Control ensure camera longevity?

A. The product is always kept cold

B. The product can handle low ambient temperatures

C. The product is protected against extreme temperatures

D. The product performs a stepped start-up at low ambient temperature

A VPN

A. Is required to enable viewing network surveillance video on mobile devices.

B. Is a network specially optimized to handle video data packets.

C. Creates a secure tunnel through the network, where your information travels encrypted.

D. Translates domain names to IP addresses, according to the IPv4 standard.

When viewing live Motion JPEG video from an Axis camera, if the image looks pixilated with no digital zoom, which of the following settings would best address the issue?

A. Adjusting the Group of Video (GOV) length from 32 to 4

B. Increasing color saturation

C. Adjusting the image contrast

D. Decreasing the image compression

Which network features are usually combined to prevent access to the surveillance network?

A. IEEE 802.3ad link aggregation and HTTPS encryption

B. IP subnets and VLANs

C. Router port forwarding and IP subnets

D. Router port forwarding and VLANs

Axis cameras support the ONVIF and VAPIX?APIs. Which of the following is true?

A. The ONVIF API is used to manage video configuration, while VAPIX?used for audio setup

B. The VAPIX?API is used to manage video configuration, while ONVIF is used for audio setup

C. The ONVIF API is Axis' own API which supports the latest Axis camera capabilities

D. The VAPIX?API is Axis' own API which supports the latest Axis camera capabilities

What is the most effective and time saving way to adjust the focus on the AXIS M3204 camera while onsite?

A. Remote zoom and focus feature

B. Adjust back focus

C. AXIS T8414 Installation Display

D. AXIS Camera Management

A P-iris lens is

A. An iris with higher light sensitivity.

B. Axis' standard for DC-iris.

C. A DC-iris with feedback.

D. An iris specially made for zoom lenses.
