71301X Online Practice Questions and Answers

Correct Answer: ACD

To connect the Avaya Breeze?platform that is hosting an Avaya Aura Presence Services snap-in with the Avaya Aura Session Manager (SM), you need to configure the following: One Entity Link from SM to Avaya Breeze? This is a SIP trunk that connects the SM and the Avaya Breeze?server for SIP signaling and media. You need to create an Entity Link in System Manager, under Elements > Routing > Entity Links, and specify the IP address or FQDN of the SM and the Avaya Breeze?server Security Module (SM100). You also need to select TLS as the SIP Link Transport Type56 TLS ports 5061 and TLS 5062: These are the ports used by the Entity Link for secure SIP signaling between SM and Avaya Breeze? Port 5061 is used by SM to send SIP requests to Avaya Breeze? while port 5062 is used by Avaya Breeze? to send SIP responses to SM. These ports require a valid certificate on both SM and Avaya Breeze?servers56 UDP port 5060 and TLS port 5061: These are the ports used by the Presence Services snap-in for XMPP federation with other XMPP servers or clients. Port 5060 is used for unencrypted XMPP traffic over UDP, while port 5061 is used for encrypted XMPP traffic over TLS. These ports enable presence and instant messaging features across different domains or platforms34

Correct Answer: B

The Avaya Session Border Controller for Enterprise (ASBCE) requires licenses to support different types of services, such as SIP Trunking or Remote Worker. The ASBCE licenses are based on the number of concurrent sessions that are handled by the ASBCE server. There are two types of licenses: standard services licenses and advanced services licenses. A standard services license is required for each SIP Trunking session, which is a session between the ASBCE server and a SIP service provider. An advanced services license is required for each Remote Worker session, which is a session between the ASBCE server and a remote endpoint, such as an IP phone or a softphone. Therefore, if the customer plans to have 50 SIP Trunks and100 Remote Workers supported by the ASBCE, they will need 50 standard services licenses and 100 advanced services licenses.

Correct Answer: B

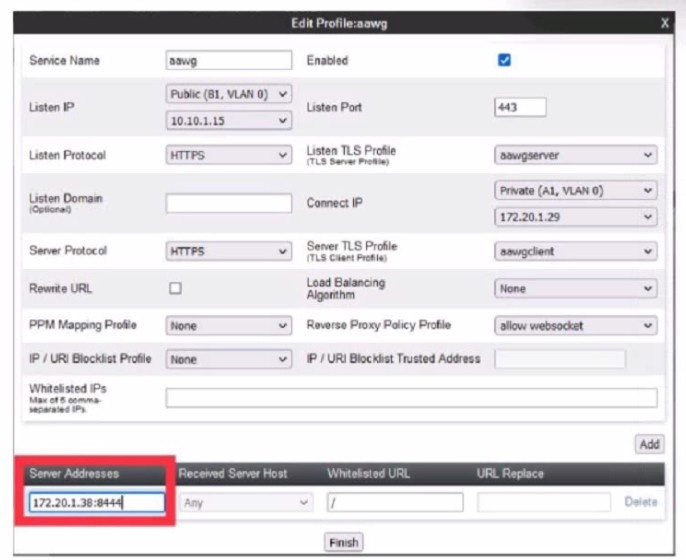

When configuring a Reverse Proxy for the Avaya Aura Web Gateway (AAWG) in the Avaya Session Border Controller for Enterprise (ASBCE), the Server Address field is used to specify the IP address or FQDN and port of the AAWG server. The port used in this field shouldmatch the listen port on the AAWG server that is used for all WebRTC call signalling. The default listen port on the AAWG server is 8444, which is also used by default in the Server Address field of the ASBCE Reverse Proxy configuration. The Reverse Proxy allows external clients to access the AAWG server securely and transparently through the ASBCE

Correct Answer: C

The Avaya Spaces Calling extension is a softphone that provides calling features to users of Avaya Spaces by leveraging their existing Avaya infrastructure. This extension can be used alongside the Avaya Spaces web application or desktop client to make and receive audio calls through the Avaya Aura Web Gateway (AAWG). To add the Avaya Spaces Calling extension, you need to have internet access and use the Google Chrome browser to open the Chrome Web Store. Then, you need to search for the Avaya Spaces Calling extension and click on the Add to Chrome button. The extension will be installed and added to your Chrome browser. You can then use the extension icon in the browser toolbar to access the Avaya Spaces Calling settings and features12

Correct Answer: D

To provide the customized music, prompts, and/or error announcements when using the Avaya Call Park and Page snap-in, you need to use the Avaya Aura Media Server (MS). The Media Server is an application that provides media processing services for voice and video calls, such as playing announcements, music on hold, conferencing, transcoding, and recording. The Media Server can be integrated with the Call Park and Page snap-in on the Avaya Breeze?platform, using SIP trunks and media resources. You can upload your own audio files to the Media Server and configure them as custom announcements for the Call Park and Page snap-in34

Correct Answer: BC

To associate the Avaya Call Park and Page snap-in to an Avaya Workplace Client, you need to perform the following key configuration steps: Add a Service Profile: A Service Profile is a set of parameters that defines the features and capabilities of a user or device in System Manager. You need to create a Service Profile for the Call Park and Page snap-in, under Users > User Management > Service Profiles. In the Service Profile, you need to specify the name, type, domain, and SIP Entity of the Call Park and Page snap-in. You also need to enable the Call Park feature and configure the Call Park activation and deactivation feature codes1 Configure a Call Park activation and deactivation feature code: A feature code is a numeric sequence that activates or deactivates a specific feature on Communication Manager. You need to configure a Call Park activation and deactivation feature code on Communication Manager, using the change feature- access-codes command. The Call Park activation feature code allows a user to park a call on a specified extension, while the Call Park deactivation feature code allows a user to retrieve a parked call from any extension2

Correct Answer: C

When setting up the Avaya Session Border Controller for Enterprise (ASBCE) SIP Trunking, you need one Subscriber Flow and one Server Flow. A Subscriber Flow is a configuration object that defines how the ASBCE handles SIP requests and responses from or to an endpoint, such as an IP phone or a softphone. A Server Flow is a configuration object that defines how the ASBCE handles SIP requests and responses from or to a server, such as a Communication Manager or a Session Manager. For SIP Trunking, you need one Subscriber Flow that connects the ASBCE to the internal SIP server, and one Server Flow that connects the ASBCE to the external SIP service provider. These flows specify parameters such as source and destination IP addresses, ports, protocols, codecs, encryption, authentication, and routing rules3

Correct Answer: A

To enable IM and Presence for an Avaya Aura user, you need to edit the Communication Profile of the user in System Manager, under Users > User Management > Manage Users. In the Communication Profile tab, you need to assign an Avaya Presence/IM handle to the user, which is a unique identifier that follows the format [email protected]. You also need to enable and configure the Presence profile for the user, which specifies the Presence Services snap-in that will provide presence and instant messaging features for the user.

Correct Answer: B

To connect one Internet Friendly (Edge) Gateway to Avaya Communication Manager (CM), you need two Public and two Private IP addresses. An Internet Friendly (Edge) Gateway is a device that provides secure and reliable connectivity between endpoints on different networks, such as the public internet and a private enterprise network. An Internet Friendly (Edge) Gateway can be implemented using an Avaya Session Border Controller for Enterprise (ASBCE) in distributed mode, where the ASBCE consists of two components: a Signaling Border Element (SBE) and a Data Border Element (DBE). The SBE handles SIP signaling and call control, while the DBE handles media packets and signaling pinholes. To connect one Internet Friendly (Edge) Gateway to CM, you need these IP addresses: A Public IP address for the SBE: This is the IP address that is visible to external entities, such as endpoints or servers on the public internet. This IP address is used by external entities to communicate with the SBE using SIP over TLS. A Private IP address for the SBE: This is the IP address that is visible to internal entities, such as CM or other ASBCE components on the private enterprise network. This IP address is used by internal entities to communicate with the SBE using SIP over TCP or UDP. A Public IP address for the DBE: This is the IP address that is visible to external entities, such as endpoints or servers on the public internet. This IP address is used by external entities to communicate with the DBE using RTP or RTCP. A Private IP address for the DBE: This is the IP address that is visible to internal entities, such as CM or other ASBCE components on the private enterprise network. This IP address is used by internal entities to communicate with the DBE using H.248.

Correct Answer: B

When integrating the Application Enablement Services (AES) with the Avaya Aura Communication Manager (CM), you need to configure a Switch Password in two places: on the "cti-link" screen in CM, and in "Switch Connections" on AES.

TheSwitch Password is a password that is used to authenticate the communication between CM and AES. CM and AES use a protocol called Adjunct Switch Application Interface (ASAI) to exchange information and commands related to

Computer Telephony Integration (CTI) applications. ASAI requires a Switch Password to establish a secure connection between CM and AES. To configure the Switch Password, you need to use these two screens:

The "cti-link" screen in CM: This is a screen that allows you to create and manage CTI links, which are logical connections between CM and CTI servers, such as AES. You can access this screen using the System Access Terminal (SAT)

interface of CM. On this screen, you need to specify a name, number, type, and password for each CTI link. The password is the Switch Password that will be used by CM to authenticate AES.

The "Switch Connections" screen on AES: This is a screen that allows you to create and manage switch connections, which are logical connections between AES and switches, such as CM. You can access this screen using the web

interface of AES. On this screen, you need to specify a name, IP address, port, type, and password for each switch connection. The password is the Switch Password that will be used by AES to authenticate CM.

Correct Answer: C

The Avaya Breeze?cluster type determines the functionality and features of the Avaya Breeze?platform. There are four cluster types: General Purpose, IM_Presence, Core Platform, and Presence Services. The Core Platform cluster type is required to install the Avaya Aura Presence Services snap-in, as it provides the basic services and components for the Avaya Breeze?platform, such as security, clustering, management, and routing. The other cluster types are either deprecated or not compatible with the Presence Services snap-in.

Correct Answer: D

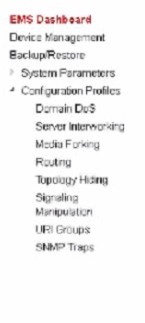

A Server Interworking Profile is a type of a Configuration Profile in the Avaya Session Border Controller for Enterprise (ASBCE) that allows setting Timers, URI Manipulation and Header Manipulation, and can be linked to a SIP Server Profile. A Configuration Profile is a configuration object that defines how the ASBCE server handles different aspects of SIP signaling and media processing. A Server Interworking Profile is a Configuration Profile that defines how the ASBCE server interworks with different types of SIP servers, such as Communication Manager, Session Manager, or third-party servers. A Server Interworking Profile can include parameters such as Timers, which specify the timeout values for various SIP transactions; URI Manipulation, which specifies how to modify the user part or domain part of SIP URIs; and Header Manipulation, which specifies how to add, delete, or modify SIP headers. A Server Interworking Profile can be linked to a SIP Server Profile, which is another Configuration Profile that defines the identity and characteristics of a SIP server that communicates with the ASBCE server.

Correct Answer: A

To trace SIP messages exchanged during a Remote Worker registration in real-time, you can use the tracesbc CLI tool on the Avaya Session Border Controller for Enterprise (ASBCE). The tracesbc tool is used to capture and display SIP messages and media statistics for calls that traverse the ASBCE server. You can use various filters and options to specify which calls or messages you want to trace. For example, you can filter by source or destination IP address, port, protocol, or call ID. You can also specify how long you want to run the trace and how many messages you want to display. The tracesbc tool can help you troubleshoot and diagnose issues with Remote Worker registration and call setup

Correct Answer: C

An Application Rule is a type of Domain Policy Rule in the Avaya Session Border Controller for Enterprise (ASBCE) that allows setting a limit to the maximum audio sessions per endpoint, enabling the ASBCE to reject the call when this limit is reached. A Domain Policy Rule is a configuration object that defines the security and quality of service policies for SIP domains that are managed by the ASBCE server. There are four types of Domain Policy Rules: Security Rule, Border Rule, Application Rule, and Media Rule. An Application Rule is a Domain Policy Rule that defines the application-level policies for SIP domains, such as call admission control,bandwidth management, session timers, and session limits. An Application Rule can include a parameter called Max Audio Sessions Per Endpoint, which specifies the maximum number of concurrent audio sessions that an endpoint can have within a SIP domain. If an endpoint tries to initiate or receive more audio sessions than this limit, the ASBCE server will reject the call with a 403 Forbidden response.

Correct Answer: D

A user can retrieve a parked call by dialing the Park extension used to park the call. A Park extension is a virtual extension that is assigned to a parked call by the Call Park and Page snap-in on the Avaya Breeze?platform. A Park extension can be either system-wide or location-specific, depending on how the Call Park feature is configured. A system-wide Park extension can be accessed from any endpoint in any location, while a location-specific Park extension can only be accessed from endpoints in the same location as the parked call. When a user dials the Park extension of a parked call, the Call Park and Page snap-in transfers the call to the user's endpoint12
