3100 Online Practice Questions and Answers

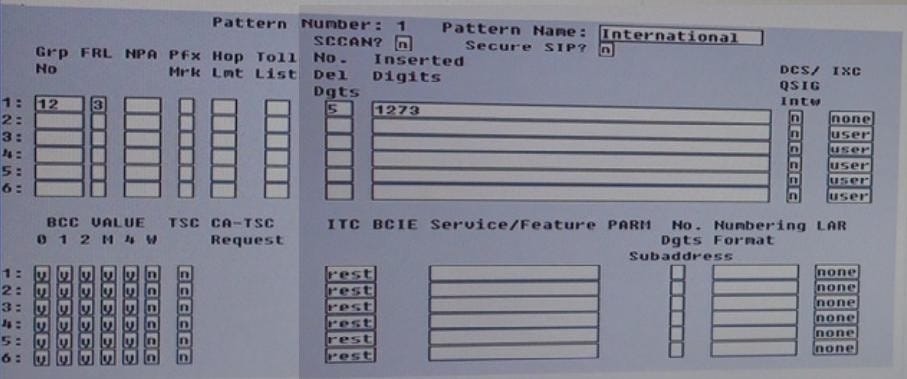

Consider the settings shown in exhibit displayed by using the display route ?pattern command. You must deny calls from users in COR 10 to use route pattern 1. What should the fault restriction level (FRL) for COR 10 be?

A. 2

B. 3

C. 4

D. 5

E. 6

You run a daily Occupancy Summary Measurements report to monitor system capacity and to review processor occupancy metrics.

Which occupancy situation is an issue that warrants further analysis?

A. For two nonconsecutive hours, the idle Occ value was between 20 and 25 pervent.

B. For one hour, the combined SM Occ and idle Occ was 90 percent.

C. For two consecutive hours, the Static Occ and SM Occ were each below 10 percent.

D. For two consecutive hours, the combined Static Occ and CP occ was 77 percent

You are adding five new digital stations in a branch office where there is a G450 media Gateway.

On which media Module do you look for available ports?

A. MM717

B. MM711

C. MM712

D. MM714

A customer wants to connect two branch offices with an ISDN trunk, where each branch office has a PBX system.

Which service Type Should you selected in the configuration of the trunk?

A. Tie

B. Tandem

C. Operator

D. Internal

System functionality for a user is controlled by accessing one of the 16 class of service (COS) settings. What does the COS settings control?

A. the applications that a user can access and use

B. the capabilities or limits of calling privileges

C. the level of service that the user will get during peak usage time

D. the optional features that a user can access and use

The monitor and display capacity commands can be sued to get a real-time status of the system using Avaya Site Administration (ASA). Which command and tool should you use to view the current load for a specific trunk group?

A. monitor load command using terminal emulation

B. monitor traffic command using terminal emulation

C. monitor traffic command using GEDI

D. display capacity using GEDI or terminal emulation

A user reports that when attempting to dial an external call to local number the system does nothing ?just silence.

You interview the user as follows.

You: What happens if you longer after you dial your number?

User: once I waited for about half a minute, then I heard these tones that supported the something was wrong.

You: Did the sound stay on the same pitch or did it change pitches back and forth?

User: Back and forth one pitch higher than the other.

You: OK, that helps. What did you dial to get an outside line?

User: Nine (9)

You: Thank you, I appreciate the information, I will get back with you shortly.

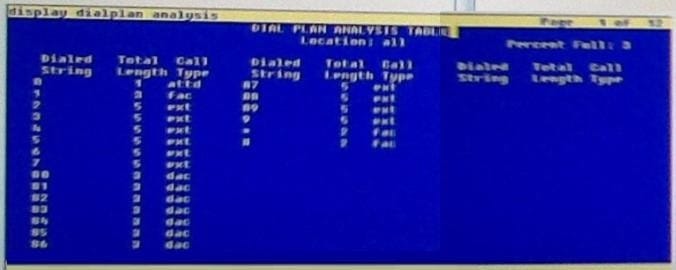

With reference to the scenario described in the exhibit, which statement most accurately describes the situation?

A. The user should have been able to complete the call as dialed

B. The system must be re-administered to correct the situation

C. After dialing "9" the user should have dialed more digits, then the external call would have completed

D. The user did not dial the correct access code to make an external call

Which Communication Manager command creates the most helpful report to diagnose problems with users who, when attempting to place outgoing calls, get reorder tone?

A. List trace station

B. List measurement occupancy

C. List performance hunt-group

D. List measurements call-rate

Changes that an administrator performs on a system are always only written to ---- RAM.

Which SAT command must be used to copy these changes so that the hard disk, so that in case of a loss of power, the changes will be available?

A. Save -----

B. Copy running configuration startup configuration

C. Copy ------ all

D. Save ------ startup configuration

Which ASA main menu option displays the capacity of the Communication Manager?

A. Advanced

B. Tasks

C. General

D. Fault and Performance

A company is adding a new building to its campus. During construction you receive notice that no one in the Accounting department, which is supported to move the new building when completed, can make an outgoing call. Which Interface and page or command do you use to begin troubleshooting the problem?

A. SMI, Network Configuration page

B. SMI, Certificate Alarms page

C. List trace command

D. SAT, display node-names command

Which two main interfaces are used for Communication Manager administration? (Choose two.)

A. IPSI

B. SAT

C. SMI

D. COS

To which two Communication Manager forms are FRLs assigned? (Choose two.)

A. COS

B. COR

C. Route Pattern

D. Station

Which statement is true about the Station Lock feature?

A. The feature permits only incoming calls, and using a FAC and security code permits emergency or outgoing calls.

B. The feature permits only outgoing calls, and using a FAC and security code permits Incoming and outgoing calls.

C. The feature permits Incoming calls, and the telephone can be unlocked only from designated telephone(s) by inputting a security code.

D. The feature overrides the COR of a station.

Which signaling protocol registers with Communication Manager?

A. SIP

B. H.225

C. H.323

D. SIP1
