300-430 Online Practice Questions and Answers

A wireless engineer must implement a corporate wireless network for a large company in the most efficient way possible. The wireless network must support 32 VLANs for 300 employees in different departments. Which solution must the engineer choose?

A. Configure a second WLC to support half of the APs in the deployment.

B. Configure one single SSID and implement Cisco ISE for VLAN assignment according to different user roles.

C. Configure different AP groups to support different VLANs, so that all of the WLANs can be broadcast on both radios.

D. Configure 16 WLANs to be broadcast on the 2.4-GHz band and 16 WLANs to be broadcast on the 5.0- GHz band.

What is the difference between PIM sparse mode and PIM dense mode?

A. Sparse mode supports only one switch. Dense mode supports multiswitch networks.

B. Sparse mode floods. Dense mode uses distribution trees.

C. Sparse mode uses distribution trees. Dense mode floods.

D. Sparse mode supports multiswitch networks. Dense mode supports only one switch.

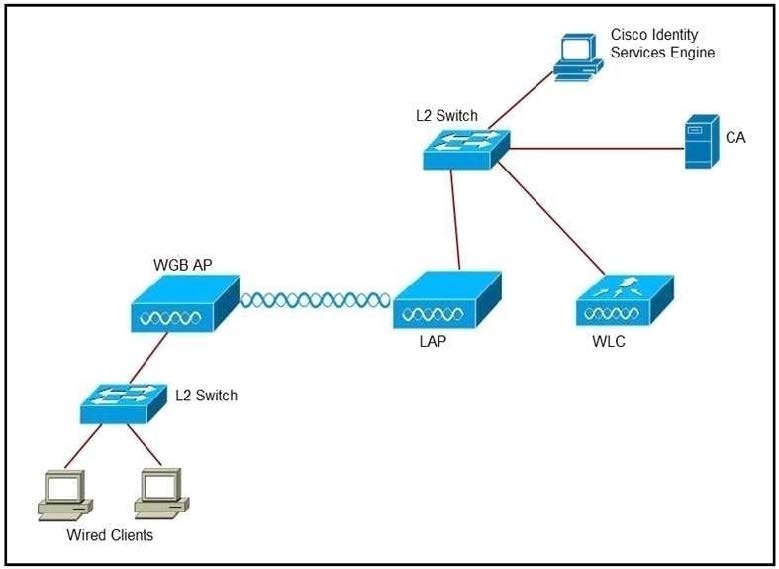

Refer to the exhibit.

An engineer must connect a fork lift via a WGB to a wireless network and must authenticate the WGB certificate against the RADIUS server. Which three steps are required for this configuration? (Choose three.)

A. Configure the certificate, WLAN, and radio interface on WGB.

B. Configure the certificate on the WLC.

C. Configure WLAN to authenticate using ISE.

D. Configure the access point with the root certificate from ISE.

E. Configure WGB as a network device in ISE.

F. Configure a policy on ISE to allow devices to connect that validate the certificate.

Which AP model of the Cisco Aironet Active Sensor is used with Cisco DNA Center?

A. 1800s

B. 3600e

C. 3800s

D. 4800i

An engineer must track guest traffic flow using the WLAN infrastructure. Which Cisco CMX feature must be configured and used to accomplish this tracking?

A. analytics

B. connect and engage

C. presence

D. detect and locate.

What are two considerations when deploying a Cisco Hyperlocation? (Choose two.)

A. NTP configuration is available, but not recommended.

B. The Cisco Hyperlocation feature must be enabled only on the wireless LAN controller.

C. After enabling Cisco Hyperlocation on Cisco CMX, the APs and the wireless LAN controller must be restarted.

D. The Cisco Hyperlocation feature must be enabled on the wireless LAN controller and Cisco CMX.

E. If the Cisco CMX server is a VM, a high-end VM is needed for Cisco Hyperlocation deployments.

An enterprise has two WLANs configured on WLC. It is reported that when converting APs to FlexConnect mode, WLAN A works but WLAN B does not. When converting APs to local mode, WLAN B works, but WLAN A does not. Which action is needed to complete this configuration?

A. Create a Cisco FlexConnect group with WLAN-VLAN mapping.

B. Disable local switching on the WLANs.

C. Map the AP group to the WLAN interface.

D. Join the APs to a Cisco FlexConnect group.

You are configuring the social login for a guest network. Which three options are configurable social connectors in Cisco CMX Visitor Connect? (Chose three)

A. Linkedn

B. Pinterest

C. Medium

D. Google+

E. Facebook

F. Myspace

A network engineer is implementing a wireless network and is considering deploying a single SSID for device onboarding.

Which option is a benefit of using dual SSIDs with a captive portal on the onboard SSID compared to a single SSID solution?

A. limit of a single device per user

B. restrict allowed devices types

C. allow multiple devices per user

D. minimize client configuration errors

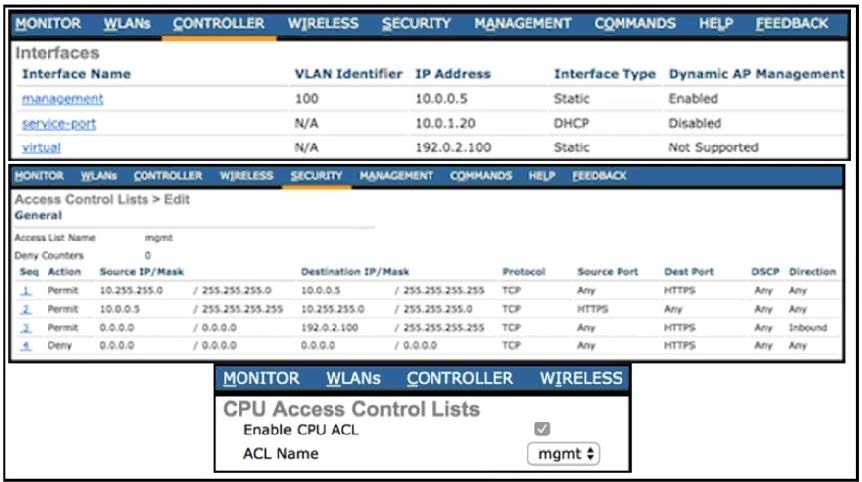

Refer to the exhibit.

An engineer implemented a CPU ACL on the controller, and now the Web Authentication Redirect page is not working. What must be changed for the redirect page to work?

A. The permit statement must be directed to the controller management address.

B. The permit statement for 192.0.2.100 must be in both directions.

C. The Web Authentication Redirect must be configured on the CPU ACLs.

D. The Web Authentication Redirect must be HTTP.

An engineer is configuring location services with a Cisco CMX 10.6.2 solution. The engineer must strengthen interferer filtering so that Cisco CMX is protected from bursts of short-lived interferes. Which two interferer-filtering parameters must be configured to meet the requirement? (Choose two.)

A. Intensity Cutoff

B. Severity Cutoff

C. Duty Cycle Cutoff

D. RSSI Maximum

E. Utilization Maximum

A customer must provide a secure wireless network from a Cisco Catalyst 9800 Series Wireless Controller to a Cisco AP to remote users. The corporate WLAN must be provided over the Internet to specific locations and support a locally-installed IP phone. Which two actions accomplish this configuration? (Choose two.)

A. Enable Local Switching under the WLAN.

B. Configure Remote LAN under the Remote LAN.

C. Create a Flex Group and add the AR

D. Enable Office Extend AP on the Flex Profile.

E. Configure NAT on the physical interface.

An engineer must implement Video Stream on a Cisco Wireless Network for a single SSID deployment model. Which feature must be enabled on Cisco Catalyst 9800 Series WLC?

A. Video CAC

B. mDNS Policy

C. IGMP Snooping

D. Multicast Direct

An engineer must implement a wireless network to support location services. The network will include an MSE and Cisco WLC. After the deployment, the IT team must be able to locate and track clients. What is the minimum number of APs that a client must hear to accomplish this configuration so that the engineer can position them accordingly?

A. 1

B. 3

C. 4

D. 6

An engineer must enable AVC on a Cisco Catalyst 9800 WLC and send the NetFlow data to a NetFlow collector. What must be configured on the controller with the IP address and port number of the NetFlow collector?

A. flow exporter

B. flow policy

C. flow monitor

D. flow record
