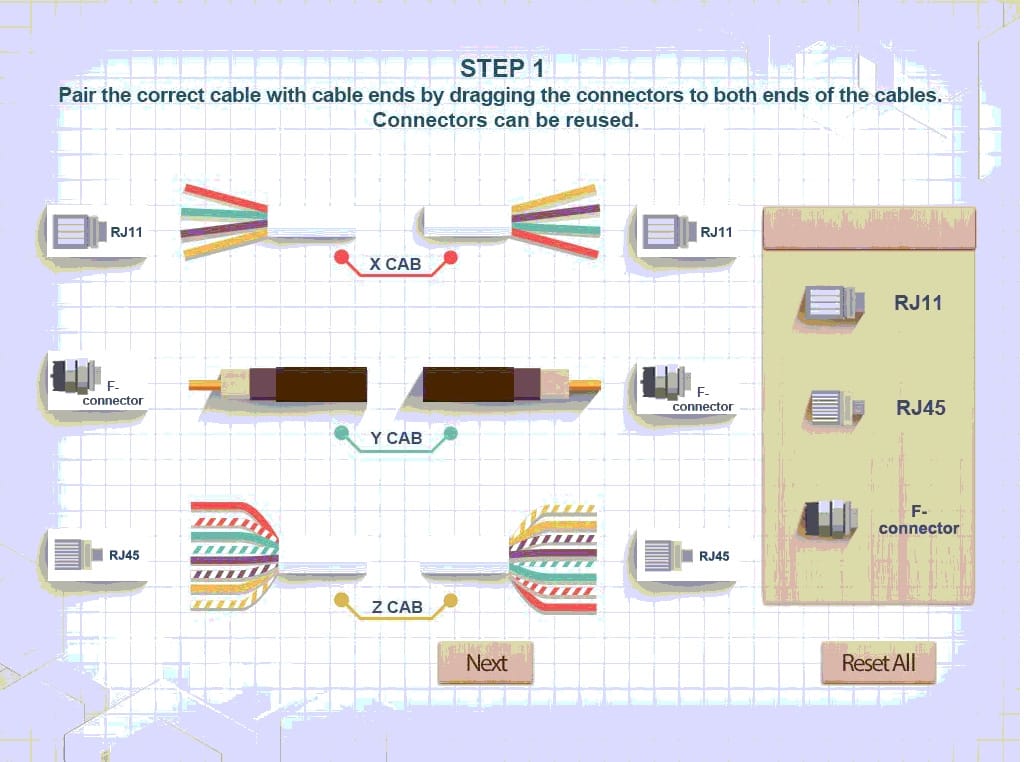

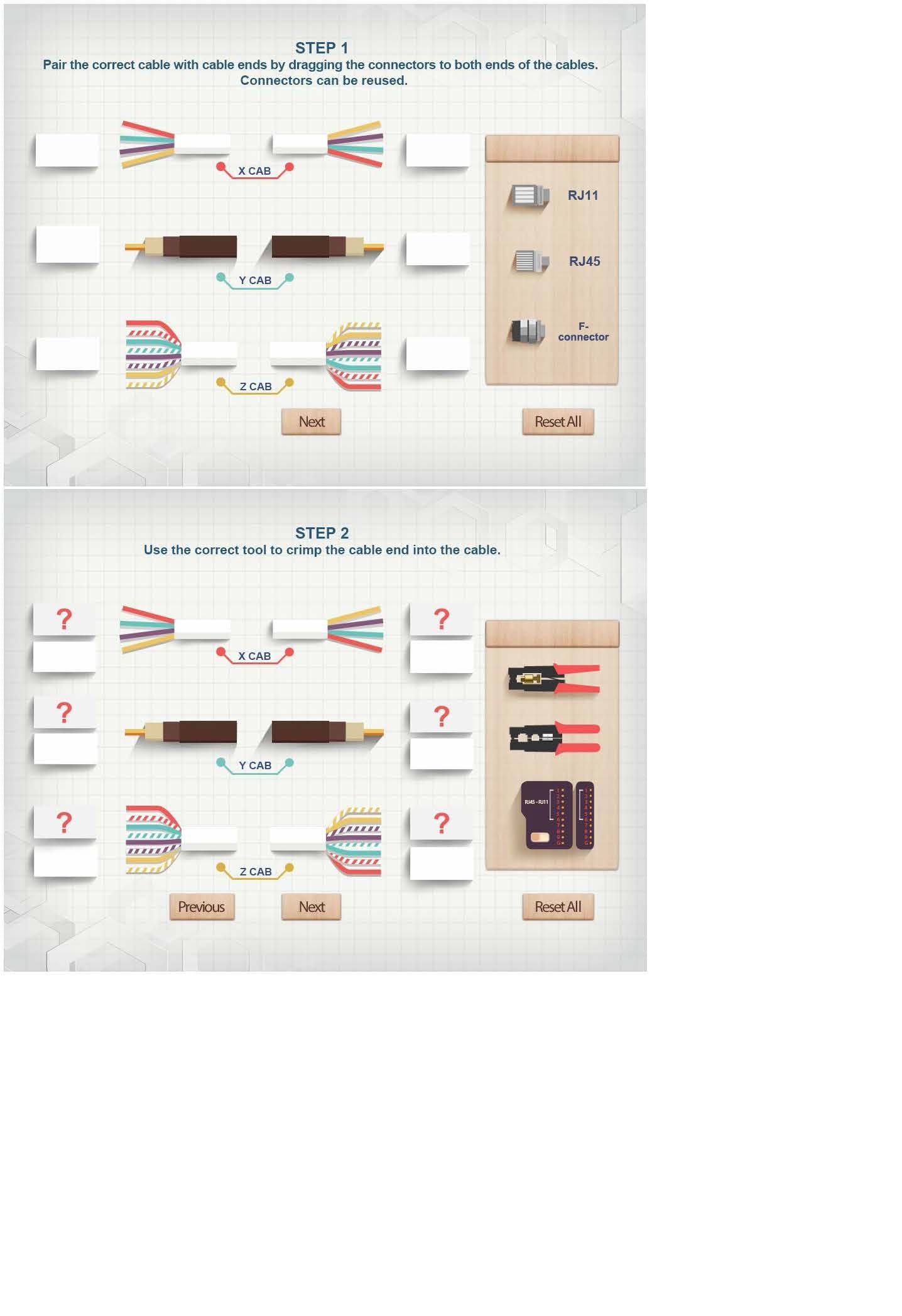

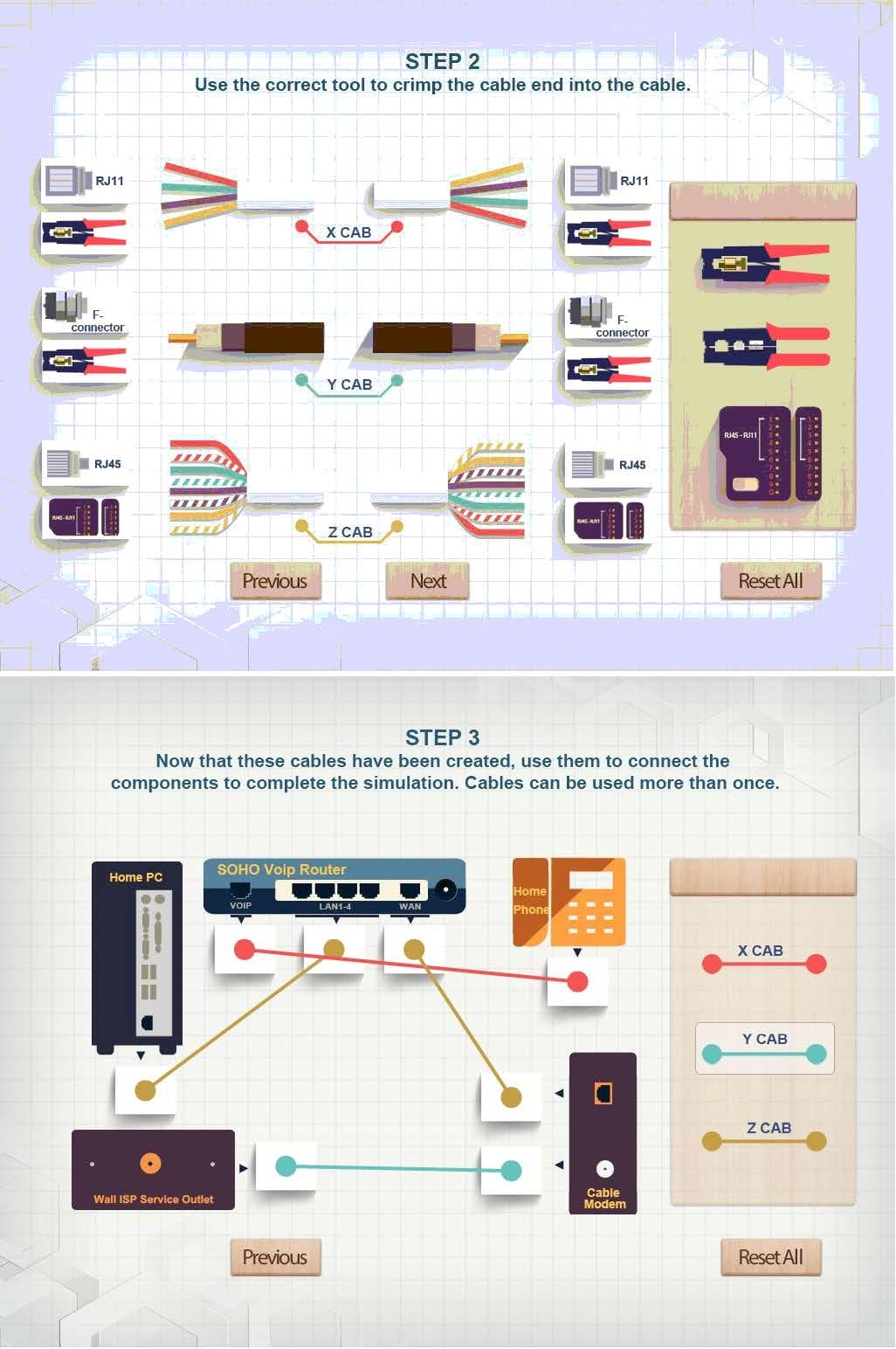

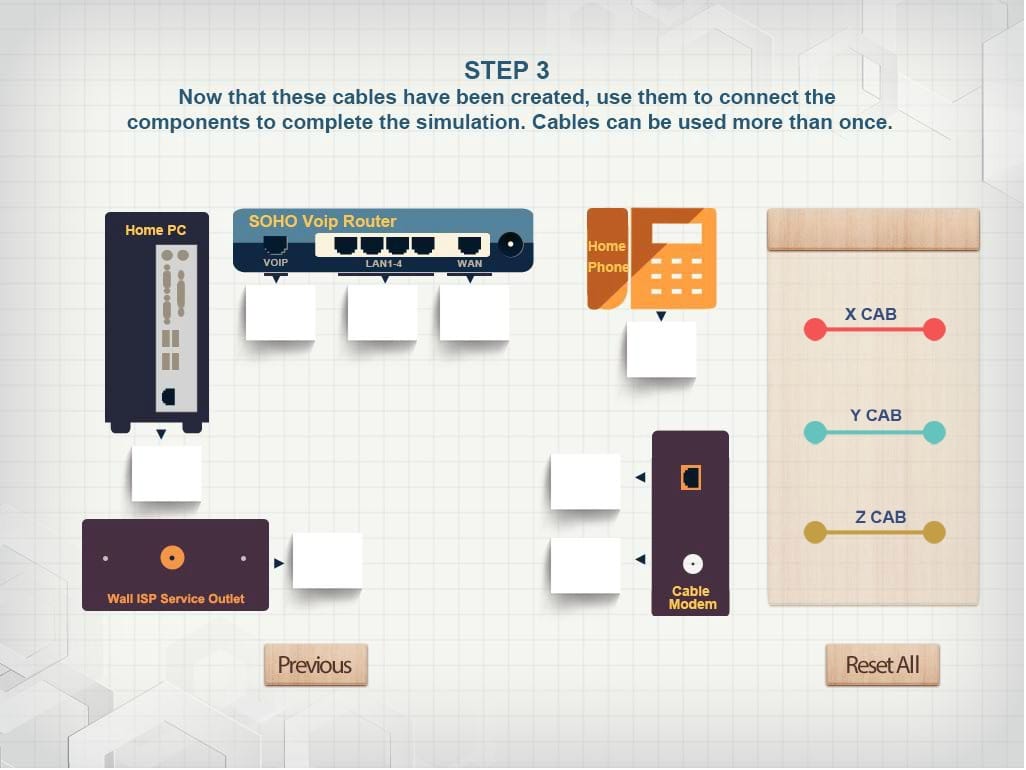

SIMULATION A small ISP has hired a new technician. Joe, the new technician, is being trained to configure customers' home networks. The training instructor gives the technician a starter kit with cables, cable ends, and other network equipment and asks him to build a working network. The computer should be connected to have Internet connectivity and the phone should be connected to have dial tone. Instructions: Use the appropriate cables, cable ends, tools and equipment to configure the network and connect all components accordingly. When you have completed the simulation, please select the Done button to submit. Once the simulation is submitted, please select the Next button to continue.
A. Following are the placement that need in each steps.
To configure two drives for MAXIMUM performance, which of the following RAID types should be used?
A. RAID 0
B. RAID 1
C. RAID 5
D. RAID 10
A DVI-D cable is generally used for which of the following computer functions?
A. Delivering audio only
B. Delivering audio and video
C. Delivering video only
D. Delivering an analog signal
Which of the following cable types is MOST often found in Plain Old Telephone Service (POTS)?
A. RG-6
B. CAT3
C. RG-59
D. Multi-mode
Which of the following socket types would be found on an Intel Desktop?
A. 754
B. 775
C. 940
D. FM1
Ann, a user, has moved the orientation of her desk and now has to arrange the power and network cables, which are unable to be run along the baseboard. Which of the following would be the safest and most practical approach?
A. Purchase a small throw rug.
B. Use a rubberized floor cord cover.
C. Secure with ISO compliant duct tape.
D. Install a raised floor system.
Which of the following tools are commonly used to remove dust and debris from inside a computer? (Select TWO).
A. Cotton and alcohol
B. Vacuum
C. Compressed air
D. Anti-bacterial surface cleaner
E. Feather duster
Which of the following cable types typically transmits the video from an analog security camera back to the CCTV system?
A. CAT5e
B. CAT6
C. RG-59
D. STP
Ann, a technician, is inspecting a PC with an Intel Core 2 Quad processor and finds that the Task Manager is reporting the system as having 8 cores. She is convinced this system only has four cores. Which of the following technologies is causing the discrepancy?
A. Hyperthreading
B. Intel SSE3
C. L2 Cache
D. S.M.A.R.T.
A docking station differentiates itself from other laptop peripherals in which of the following ways?
A. It allows the connection of external hard drives.
B. It adds additional ports and connections.
C. It allows for an external monitor to be connected.
D. It allows the laptop to be securely locked.
Which of the following printer types uses an imaging drum as part of the printing process?
A. Thermal
B. Inkjet
C. Laser
D. Impact
After identifying illegal activity on a small business computer, a business owner asks the office secretary to log into the system to retrieve various files. Which of the following aspects of procedural forensic analysis were violated in this scenario?
A. Data preservation
B. Proper channel reporting
C. Initial response identification
D. Tracking of documentation
Ann, a user, has requested help to choose a new workstation for her design business. Which of the following would be the MOST important feature of a new workstation?
A. FireWire adapter card
B. High performance graphics card
C. Surround sound audio card
D. USB 3.0 port
A network impact printer functions yet is not printing any characters. It was working before a user visited the printer. Which of the following is the MOST likely cause?
A. The user changed the printer baud rate.
B. The user set the printer offline.
C. The user replaced the paper incorrectly.
D. The user replaced the ribbon incorrectly.
A department's multifunction printer just had a maintenance kit installed. When Joe prints the first page after maintenance is performed, the page has random spots and blotches on the front and back. Which of the following actions would BEST solve this?
A. Reset the printer's maintenance kit level.
B. Run a cleaning page through the printer.
C. Replace the toner cartridge.
D. Run the printer calibration utility.
